Avalon Stoves Arbor PS - Manual (Page 17)

Installation
(For Qualified Installers Only)
1 7
© Travis Industries
4070806
1 0 0 - 0 1 1 9 1 _ 0 0 0

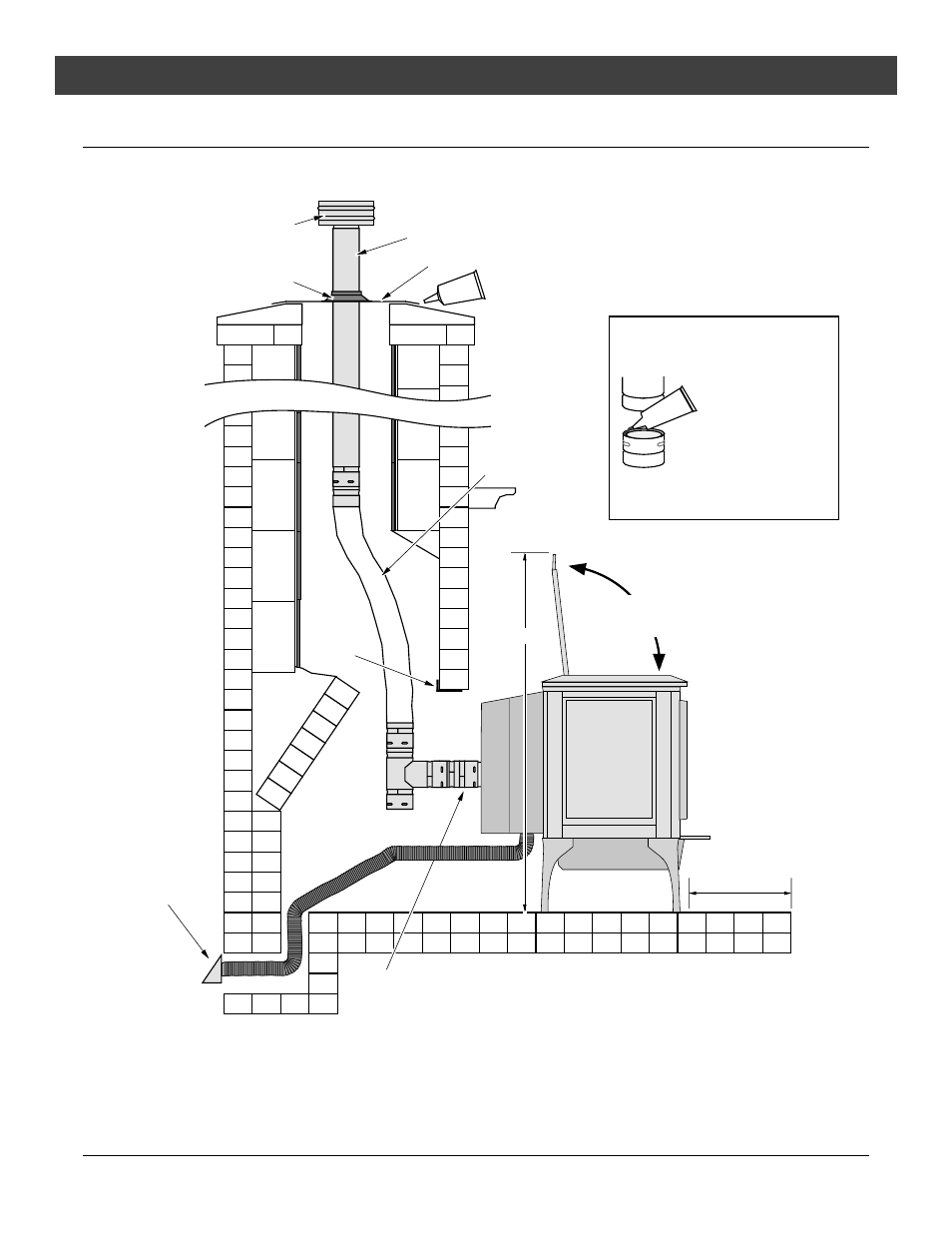

Installation Example: Masonry Fireplace Hearth Stove
“L” Vent Flex
Section
Outside air
may be
drawn from
the ash
cleanout. 6” Min.
“L” Vent
Storm Collar
Vertical Cap
Cover Plate (non-combustible)
Silicone
Seal the cover
plate with silicone.
NOTE: you may need a short horizontal section here to
clear the lintel and allow the hopper lid to open.
Lintel
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500
° F. RTV
Silicone
Allow room for the
hopper lid to open
44”
