c. Termination: The RJ45 terminations to the Cat 5/5e/6 cable must be made to the EIA 568B
specifications.
1.
Orange White
2.
Orange
3.
Green White
4.
Blue
5.
Blue White
6.
Green
7.
Brown White
8.
Brown

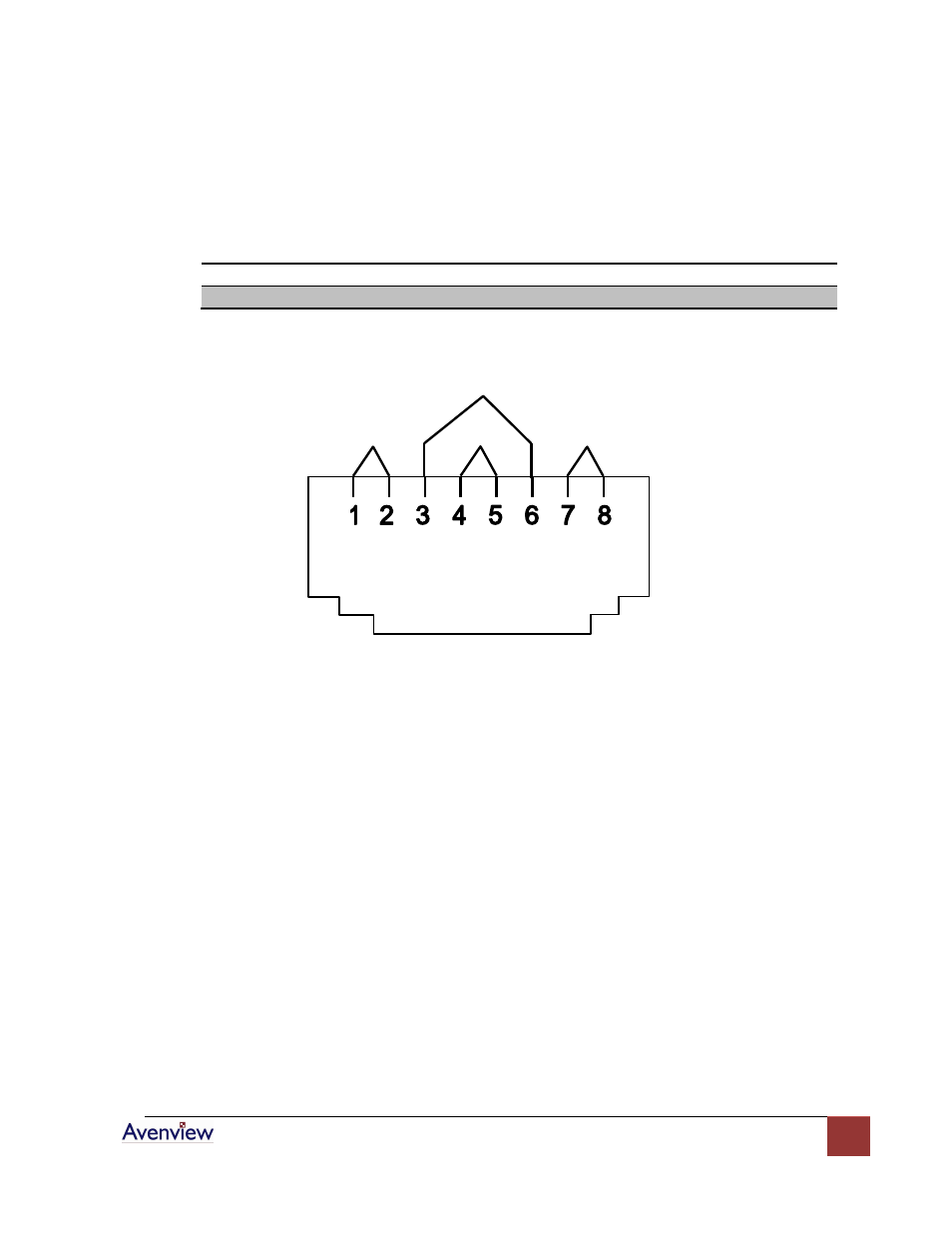

The EIA/TIA definition of 568B in the pin assignment
JACK POSITION
PAIR 2
PAIR 3
PAIR 1
PAIR 4
