Cable and Accessories

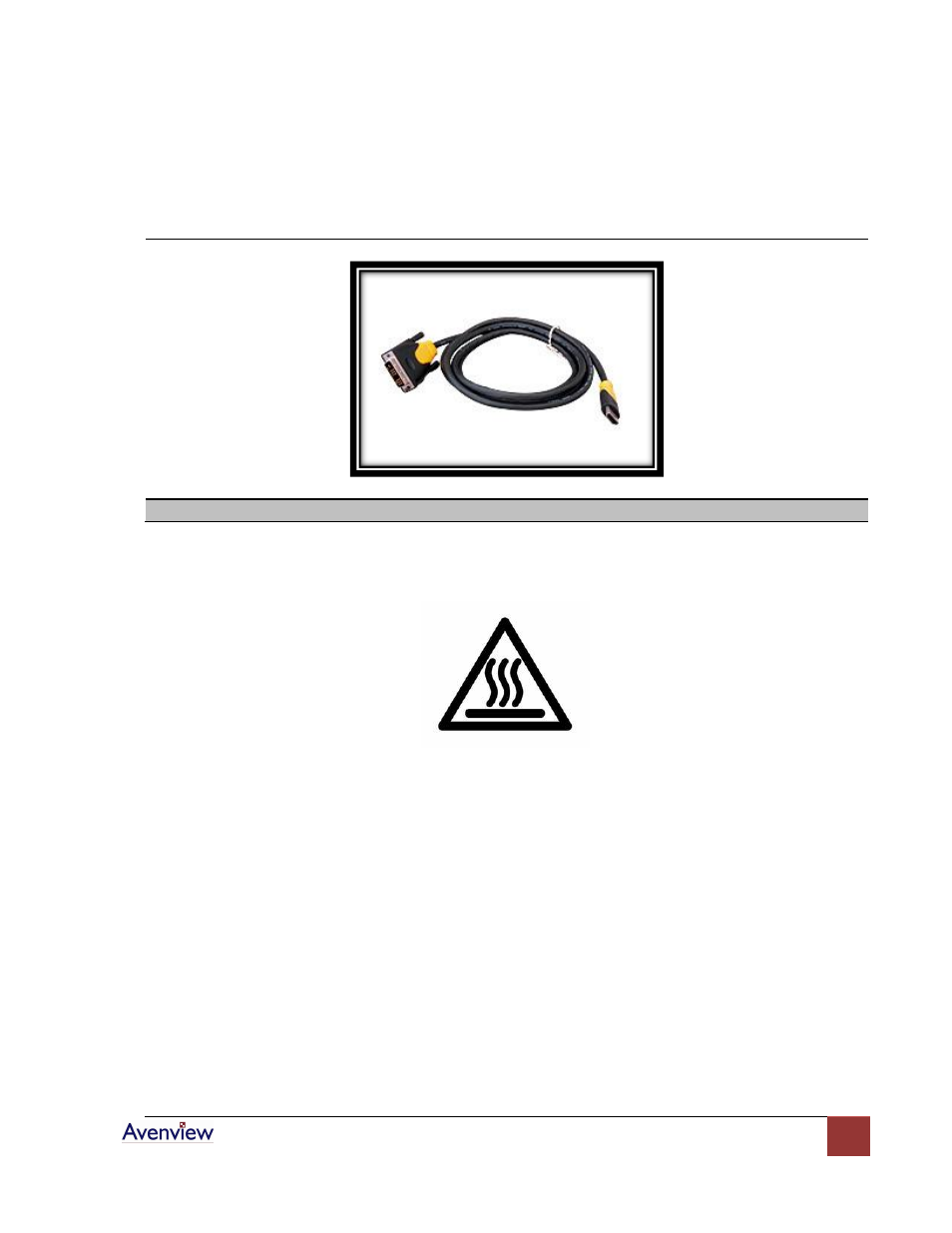

DVI-HDMI Cable for Player
Installation and Operation
DVI-C5-S Transmitter Installation
a. First Time Setup: Turn off the DVI output device (PC or DVD Player) and monitors.
b. Device Connection: Connect local DVI monitor (M1) to the “DVI/MI OUT” of the
Transmitter. Use the DVI-HDMI cable, plug the HDMI end to “INPUT” port of the Transmitter
and the DVI-D end to PC or DVD Player’s DVD-D video port.
Connect the power adapter to the “5VDC” and plug into the power outlet
c. System Turn ON: Turn on your DVI output device and monitor to confirm the functionality
of the display. The “M1 LINK” LED of the Transmitter should display orange to confirm the
connection of a local DVI monitor.
d. Remote Monitors: Make sure the remote monitor(s) to be connected to the DVI-C5-R
Transceiver can display the broadcast video resolution.
