11

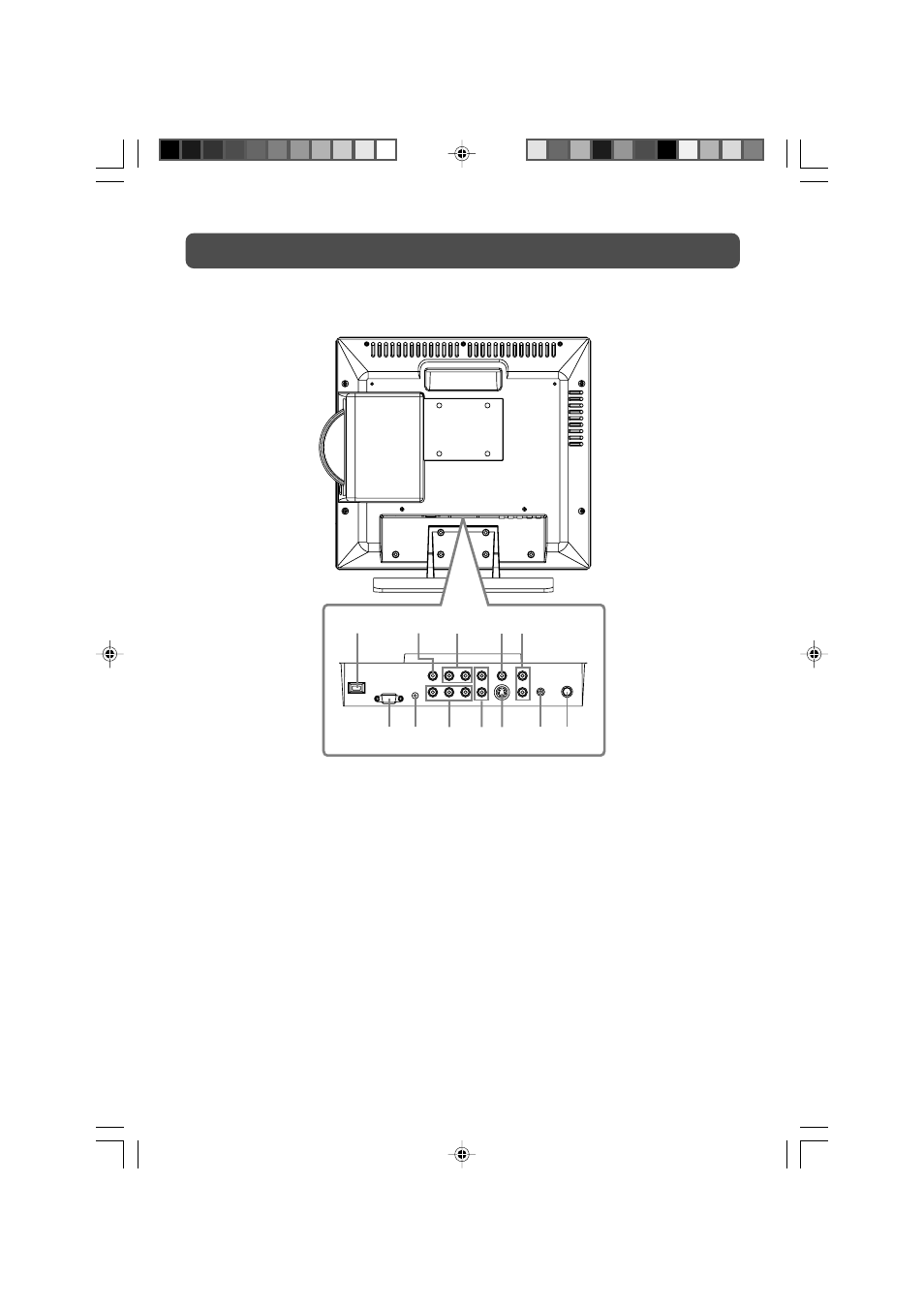

BOTTOM VIEW
9) DC 12-24V
10) AV OUT Video Output Jack
11) AV OUT Audio Output Jacks
(Left/Right)
12) AV IN Video Input Jack
13) AV IN Audio Input Jacks (Left/Right)
14) PC IN MONITOR/VGA Jack
15) PC IN Audio Jack
16) YUV IN Component Video Input Jacks
(Y/PB/PR)
17) YUV IN Audio Input Jacks (Left/Right)
18) AV IN S-Video Input Jack
19) Headphone Jack
20) TV Antenna Cable Terminal - Coaxial
TV Antenna Input
UNIT REFERENCE GUIDE
9 10 11 12
14 15 16 17 18 20
13
19
