VSSI-Pro VIDEO SERIAL ATM INTERFACE
Triport and Adapter Cable
Triports are typically used to passively tap data from a serial device. A Triport has three connectors, either 2DB-25's
back to back or 2DB-9's and an additional DB-9 male which connects to the VSSI-Pro. The Triport ( and cable )
supplied with the VSSI-Pro is the ATM 2 Channel Triport. The following pin-out diagram for the cable is available for
troubleshooting purposes.
With Data-Out Options: With RTS Triggered Text:
VSSI -Pro DB-9 (M)
9 Trigger Input ( + )
5 Trigger Input (GND)

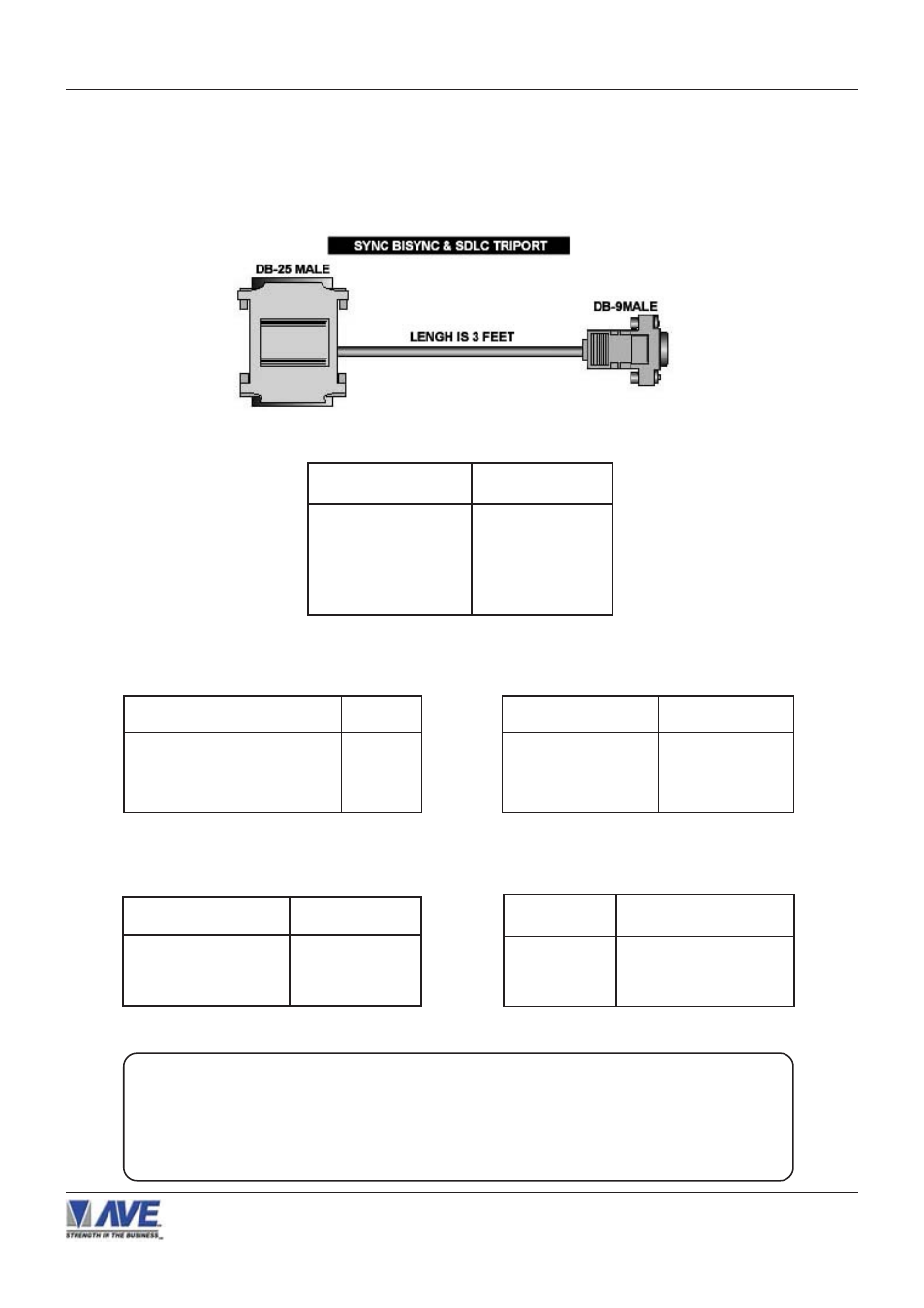

Figure 1H: The VSSI-Pro ATM 2 CHANNEL
Table 2H: ATM Camera Port Connection
Table 4H: Data Output Option Table 5H: RTS Triggered Text
For ATM Camera Port Connection ATM VSSI-Pro (Cable between ATM Camera Interface and VSSI-Pro)
Table 1H: VSSI-Pro ATM 2 CHANNEL
APPENDIX H TRIPORT AND ADAPTER CABLE
VSSI-Pro DB-9 (M) DB-9 (M or F)
8 2
5 5
Camera Interface DB-25(M) DB-9 (M)
2 3
3 6
7 5
DB-9 (MALE) DB-9 (MALE)
2 3
3 6
7 5
Table 3H: TCP/IP Cable
DB-25 FEMALE DB-9 MALE
2 2
17 4
7 5
3 6
15 7
NOTE
" " " " "
The VSSI-Pro does not provide any hardware handshaking signal. The ATM camera port
must either be programmed without handshaking or the handshaking signal should be
looped back to the camera port.
