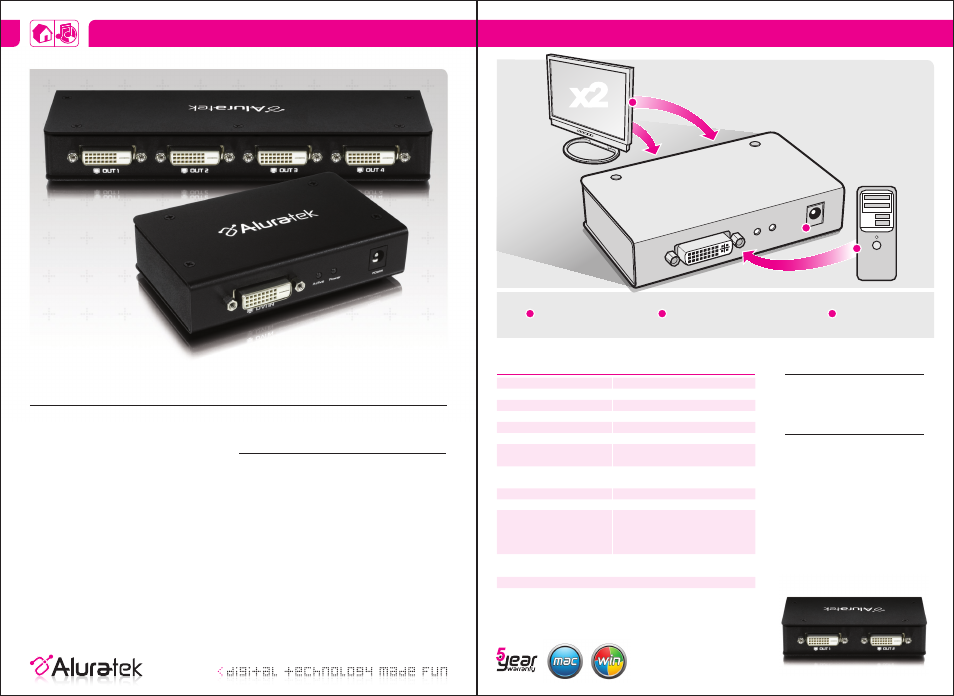

ADS02F / ADS04F_ Product Reference Card

2 / 4-Port DVI Video Splitter

Split an identical DVI-D signal (up to 90 ft.) to 2 / 4 outputs

• Split an identical DVI-D signal to 2 / 4 outputs
• Transmit the DVI-D signal up to 90 ft - 6 times farther than
standard DVI specification
• Supports widescreen monitor resolutions up to

1920 x 1080

• Supports DVI monitor resolutions up to

1900 x 1200

• Daisy chainable to increase monitor support
• Plug-n-Play, and Hot swappable. No driver needed
• Limited 5 Year Warranty

(1) x 6’ DVI (male to male) Cable (1.8m)
Metal
(1) x Blue (Active), (1) x Orange (Power)
10% to 85%, non-condensing
5°C~40°C (41°F~104°F)
AC 5V / 2.5A
AC 5V, Normal Operation 2A,
Idle 10mA
normal: 1920 x 1200
widescreen: 1920 x 1080
5% to 90%, non-condensing
-20°C~60°C (-4°F~140°F)
2-port: 4.25 in. (10.8 cm), 2 in. (5.1
cm), 1 in. (2.5 cm)
4-port: 7.375 in. (18.7 cm), 2 in. (5.1
cm), 1 in. (2.5 cm)
2-port: 8.9 oz. (0.25 kg)
4-port: 14 oz. (0.40 kg)

(1) x DVI-D female
(2) x DVI-D female

Cable
Housing
LED’s
Operating Humidity
Operating Temperature
Power Adapter
Power Consumption

Resolution

Storage Humidity
Storage Temperature
Unit Dimensions (L x W x H)

Unit Weight

Video Input Connector
Video Output Connectors

DVI

IN port to CPU

Features

Specifications

aluratek.com

• Computers and monitors with a
DVI connector

Requirements

• 2 / 4-Port DVI Video Splitter
• DVI Cable (6 ft.)
• Power Adapter
• Quick Start Guide
• Warranty / Registration Card

Package Contents

DVI

OUT ports (x2) to monitors

Power adapter port

2-port model shown
