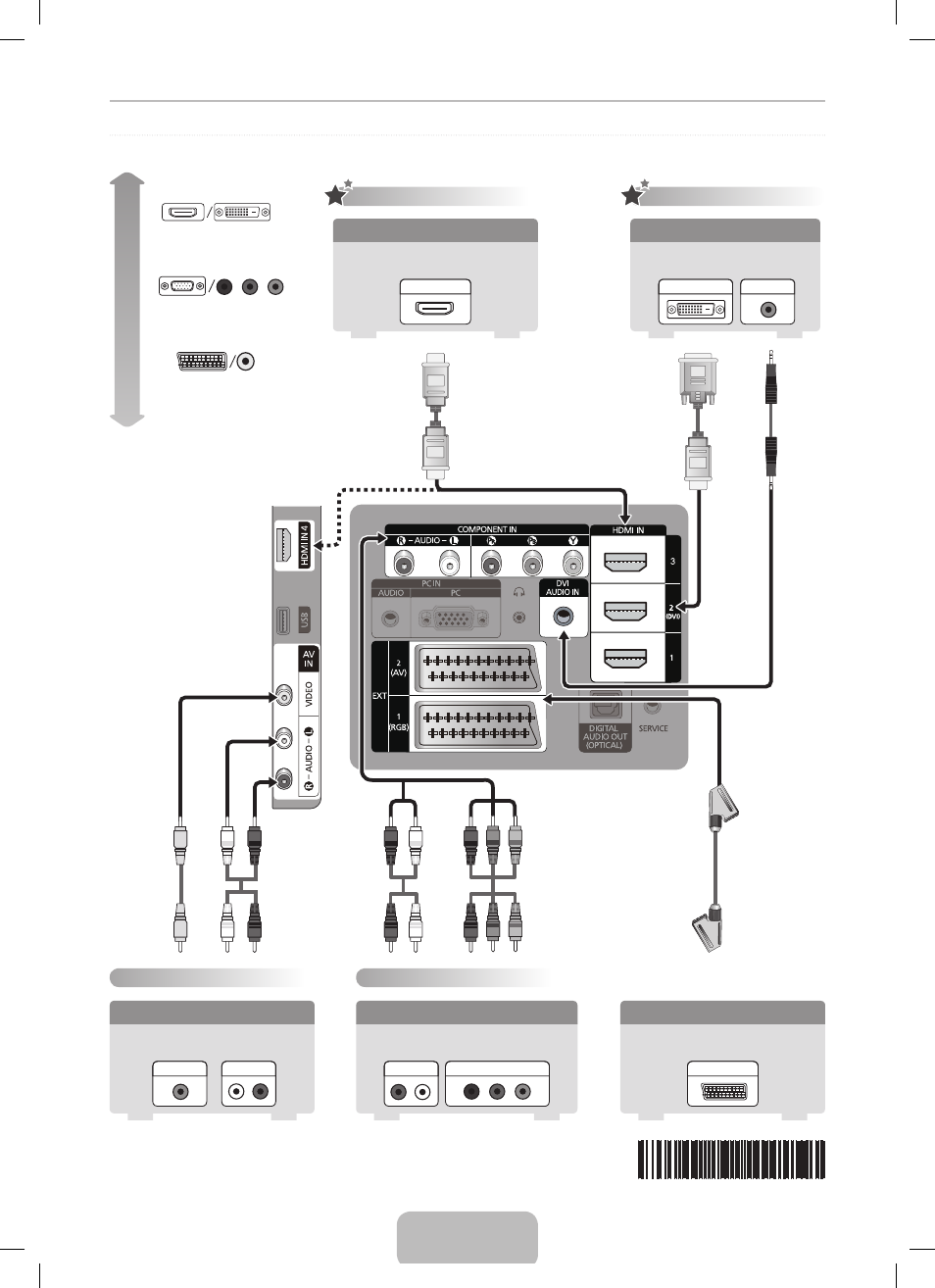

Connecting a AV device
W Y R
W Y R R
W R
W R
R
G
G
B
B
HD connection
DVD / Blu-Ray player / Cable Box
/ Satellite receiver (STB)
Using a DVI Cable
AUDIO OUT DVI OUT
HD connection
DVD / Blu-Ray player / HD Cable
Box / HD Satellite receiver (STB)
Using an HDMI Cable
HDMI OUT
Audio/Video connection
VCR
Using an Audio/Video Cable
AUDIO OUT VIDEO OUT
Component connection
DVD / Blu-Ray player / Cable
Box / Satellite receiver
Using a Component Cable
AUDIO OUT COMPONENT OUT
HDMI/DVI
PC/COMPONENT
EXT/VIDEO
Best
Normal
VCR / DVD
Using a Scart Cable
EXT
