3. SPECIFICATIONS

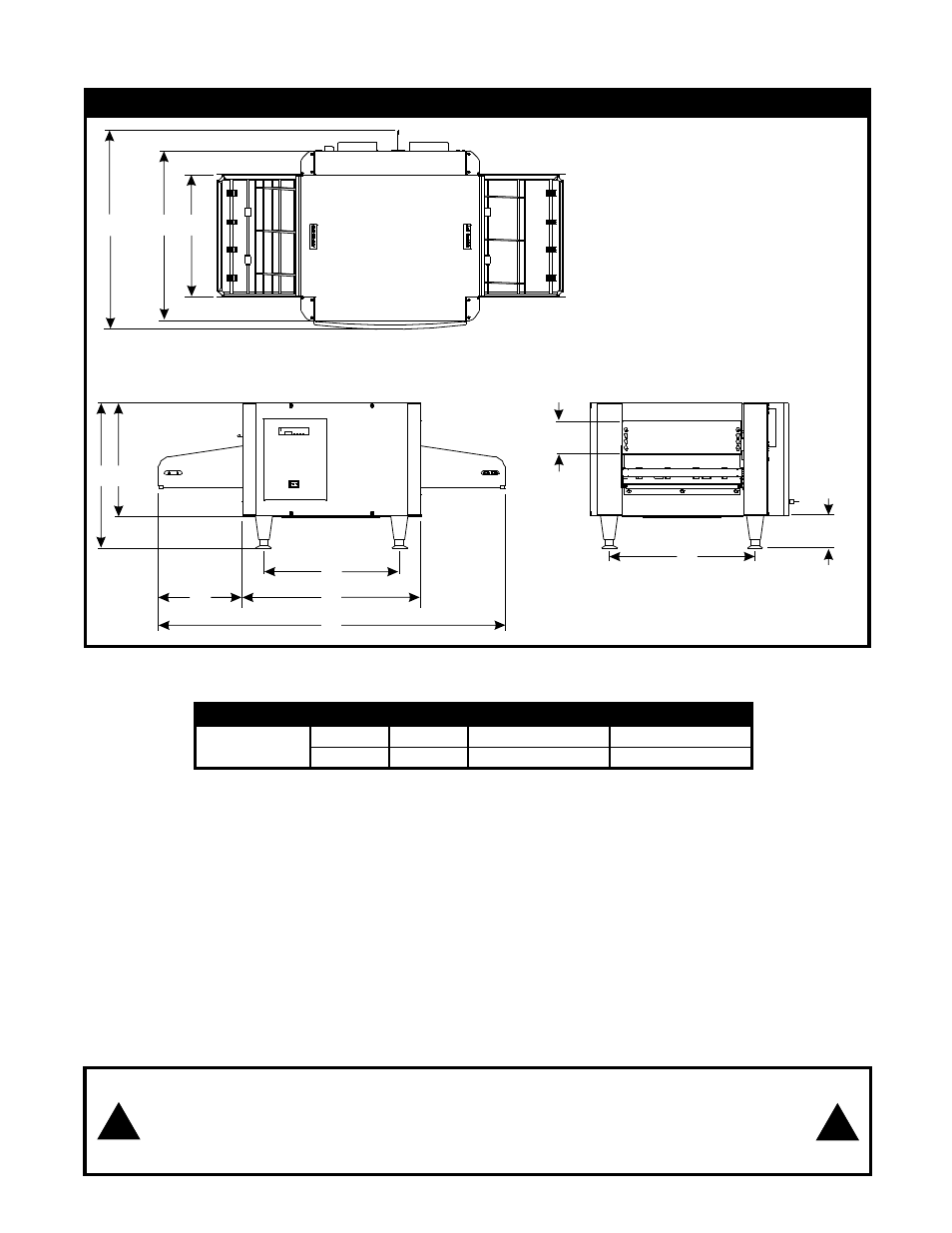

OVERALL DIMENSIONS - XWAV 1417A
D
F
G
H
I
J
K
L
A
C
B
E
L =
A = 24.49”
B = 21.00”
C = 15.14”
D = 18.00”
E = 14.00”
F = 11.80”
G = 10.50”
H = 17.25”
I = 38.25”
J =
3.84”
K = 18.00”
4.00”
Electrical ratings:
Power Cord:
Six (6) foot, 3 wire grounded cord. If the supply cord is damaged, the manufacturer, or an authorized
service agent, must replace it in order to avoid a hazard and warranty. Please contact the factory by
calling the 800 # located on the unit.
Shipping Weight:
XWAV 1417A 98 lbs. (44.5 kg.)
MODEL
WATTS
VOLTS
AMPS (1 Phase)
NEMA PLUG
4100
208
19.7
6-30P
4100
240
17.1
6-30P
XWAV 1417A
4. INSTALLATION INSTRUCTIONS
If the carton appears damaged, or damage is discovered once the carton is opened, stop
immediately and contact the freight company to file a damage claim.
CAUTION: The Pass Through Oven is shipped assembled. The unit is shipped with
urethane supports between the top heaters and the conveyor assembly. Please remove
all urethane supports and packaging materials before operating the unit. Failure to
remove all packaging materials may lead to a fire and / or damage to the appliance.
!
!
