Connections

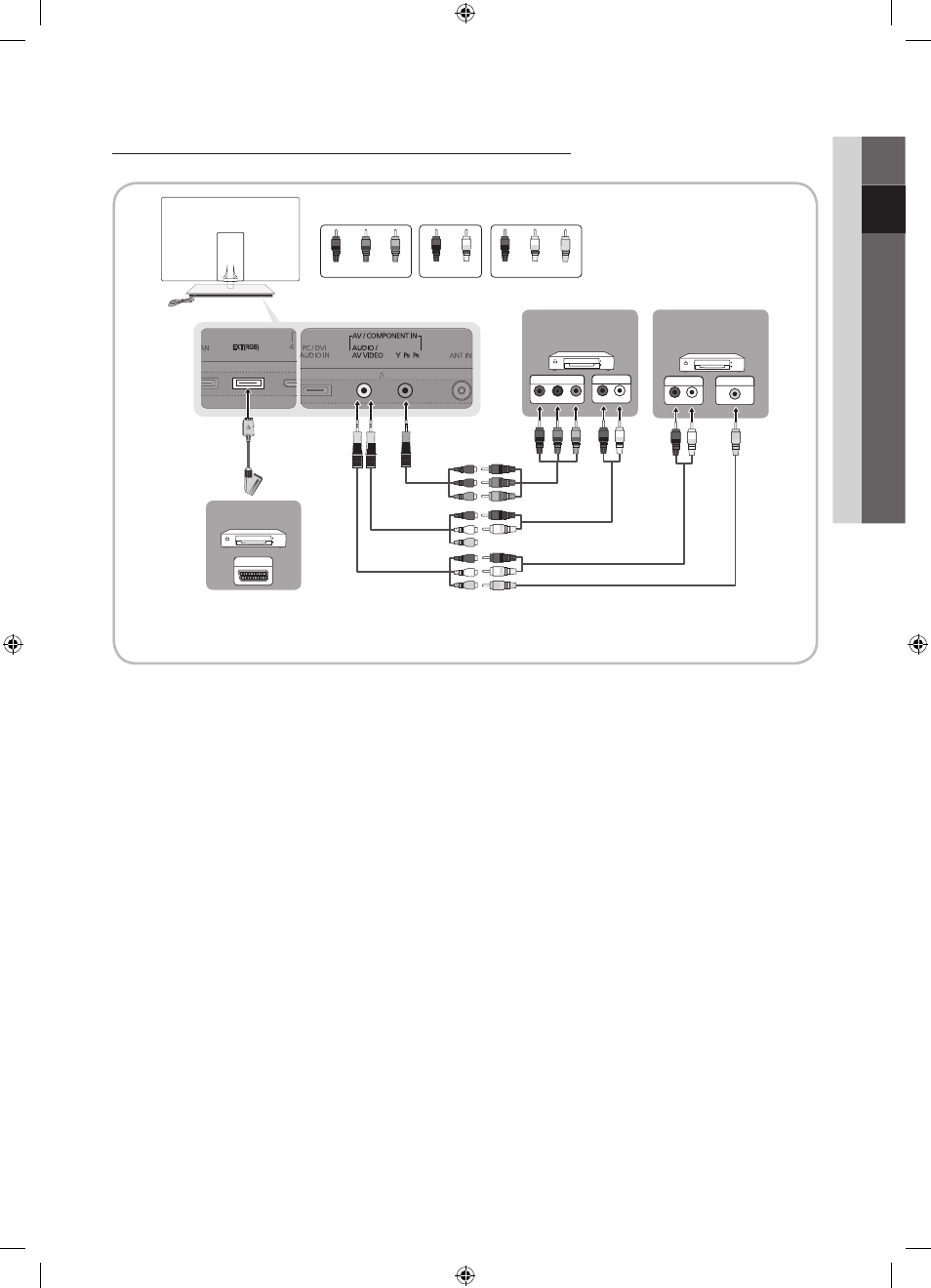

Using a Component (up to 1080p) or Audio/Video (480i only) and Scart Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
P R P B Y
COMPONENT OUT AUDIO OUT
R-AUDIO-L
W R R G B
AUDIO OUT
R-AUDIO-L
VIDEO OUT
R
R B G W R
R
G
B
W
W
R
W Y
Y
R
EXT
Y W R
Red Red Blue White Green
VCR
VCR
DVD / Blu-ray
player
Red White Yellow
✎
In Ext. mode, DTV Out supports MPEG SD Video and Audio only.
✎
To obtain the best picture quality, the Component connection is recommended over the A/V connection.
