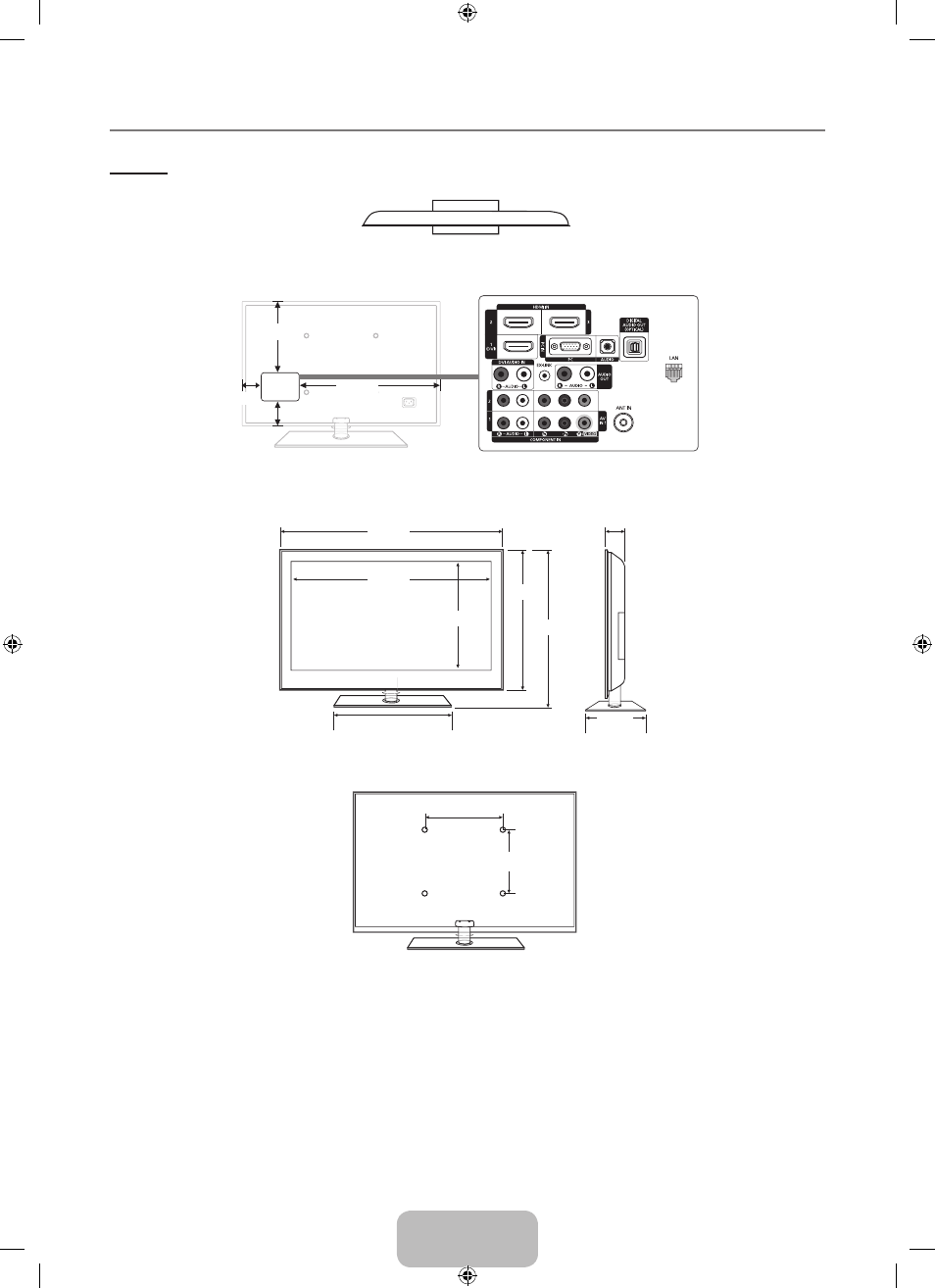

Dimensions
LN6B60
TOP VIEW
JACK PANEL DETAIL .2"H X 6.6"W
FRONT VIEW / SIDE VIEW
REAR VIEW
NOTE: All drawings are not necessarily to scale. Some
dimensions are subject to change without prior notice. Refer to
the dimensions prior to performing installation of your TV. Not
responsible for typographical or printed errors.
