Connections
Connecting to an AV Device
Using an HDMI or an HDMI to DVI cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
✎
HDMI IN 1(DVI) , 2
x When using an HDMI/HDMI cable connection, the picture may not display normally (if at all) or the audio
may not work if an external device that uses an older version of HDMI mode is connected to the TV. If such
a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date,
request an upgrade.
x Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may
occur.
x When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack for video. A DVD, Blu-ray
player, HD cable box, HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI (DVI
to HDMI) adapter.
x If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

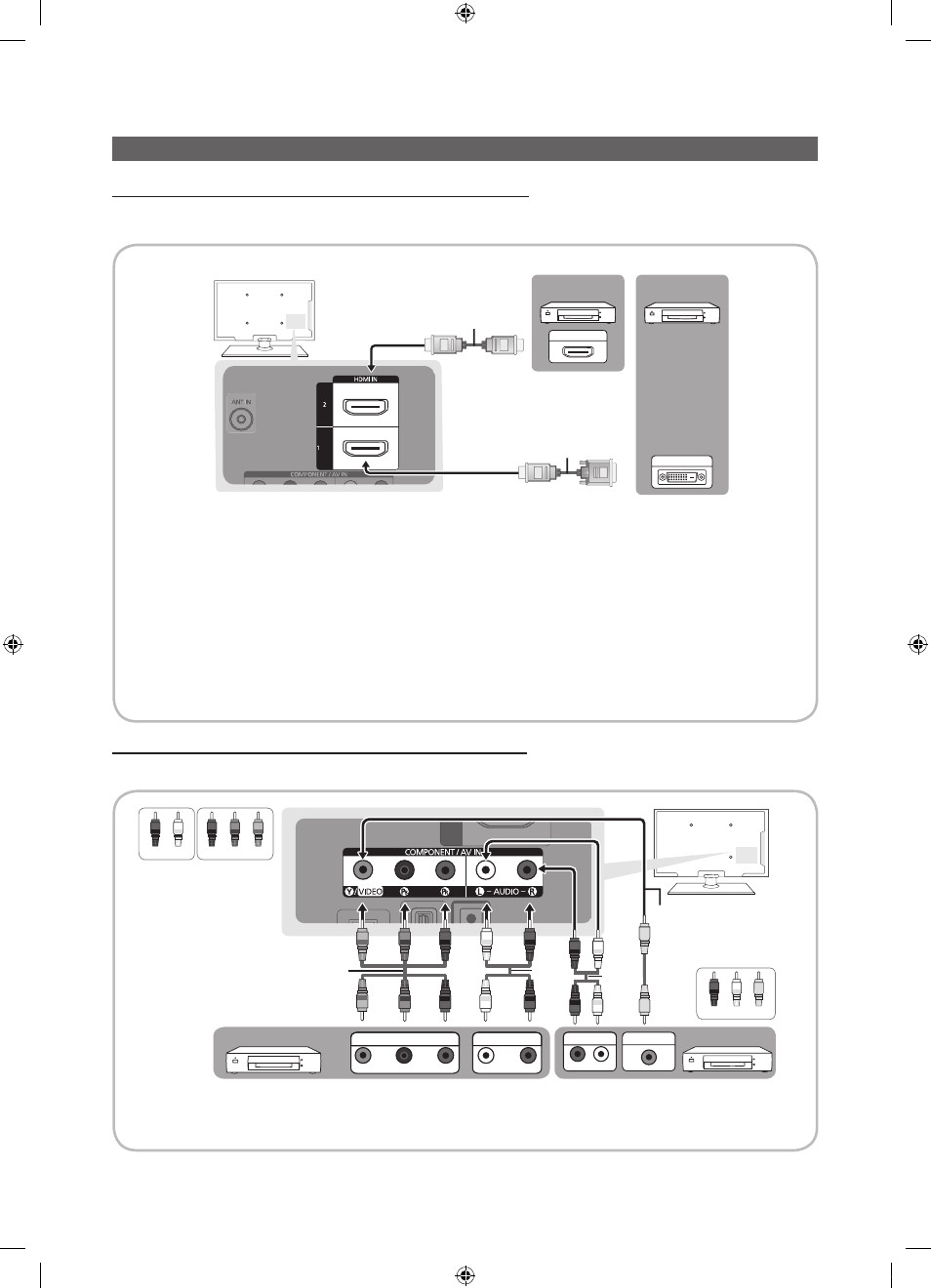

Using a Component (up to 1080p) or an Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
✎
When connecting to AV IN , the color of the AV IN [Y/VIDEO] jack (green) will not match the video cable (yellow).
✎
For better picture quality, the Component connection is recommended over the A/V connection.
W
W
G
G
B
B
R
R
R
R
W
W
R
R
P R P B Y
COMPONENT OUT AUDIO OUT
R-AUDIO-L
VIDEO OUT AUDIO OUT
R-AUDIO-L
R W
Y
Y
Y
R W R G B
Red White Red Blue Green
Red White Yellow
HDMI OUT
DVI OUT
(DVI)
Device Device
Component Cable
(Not Supplied)
HDMI Cable (Not Supplied)
HDMI to DVI Cable (Not Supplied)
Audio Cable
(Not Supplied)
Video Cable
(Not Supplied)
Audio Cable
(Not Supplied)
