Samsung PN50C490B3DXZA User Manual

Quick setup guide, Step 1, Step 2

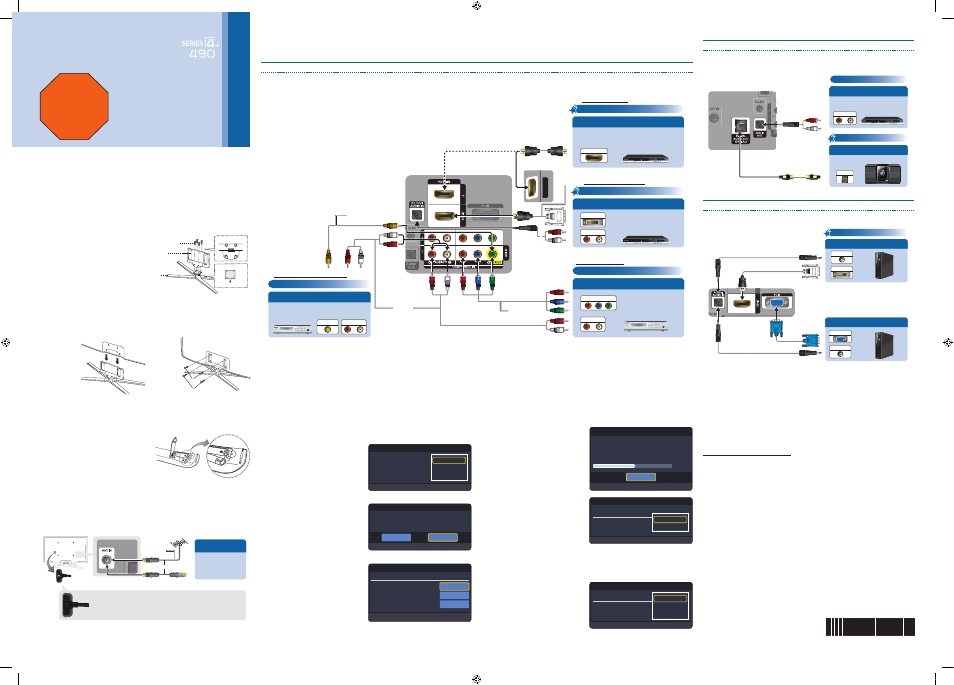

Step 1

: Install the Stand

Follow the steps below to connect the TV to the stand.

✎

NOTE

Make sure to distinguish between the front and back of the Stand and
Guide Stand when assembling them.

Make sure that at least two people lift and move the PDP TV.

Stand the product up and fasten the screws. If you fasten the screws with
the PDP TV placed down, it may lean to one side.

Connect the Guide Stand to the
Stand using four screws (M4 X L10)
as shown.

With your TV upright, connect the
TV to the Stand.

Fasten two screws (M4 X L12) at
position 1, and then fasten two
screws (M4 X L12) at position 2.

Rear

Front

Step 2

: Install the Batteries into the Remote

To install batteries into your remote control,
follow these steps:
1. Lift the cover on the back of the remote

upward as shown in the figure to the
right.

2. Install two AAA batteries.

✎

Make sure to match the + and -
ends of the batteries to the diagram in the battery compartment.

3. Replace the cover.

Step 3

: Connect Power and Antenna or Cable

Quick Setup Guide

Congratulations on the purchase of your new Samsung TV.
Read this setup guide to get your TV up and running quickly.

1-800-SAMSUNG (1-800-726-7864)
Samsung Electronics America, Inc.
85 Challenger Road Ridgefield Park, NJ 07660-2112
Samsung Electronics Canada Inc.
55 Standish Court Mississauga, Ontario L5R 4B2
Call Center hours of operation: Mon-Sun, 9:00 AM -12
AM EST.
To register this product, visit: www.samsung.com/
register.

STOP

Please do not return this unit.

If you have problems operating your

TV, call:

1-800-SAMSUNG (1-800-726-7864)

For web support please visit:

www.samsung.com/support

Step 4

: Connect External Devices

Connecting an AV device (DVD/Blu-ray player, cable/satellite box, etc.)

Step 5

: Run Plug & Play

When you turn on your TV for the first time, it automatically launches the Plug &
Play function. With Plug & Play, you can select the On Screen Display language,
set the clock mode, and launch the TV’s channel memorizing process.
It also displays connection instructions similar to those in this guide.
To navigate while Plug & Play is running, press the Up, Down, Left or Right arrow
buttons on your remote. To make a selection, press the

ENTER

E button.

To skip a screen, press the

button. To turn on your TV, press the

POWER

button on the remote or on the TV. To run Plug & Play, follow these steps:

Using your remote control, select
the language for the On Screen
Display (OSD), and then press
the

ENTER

E button.

Select Home Use, and then
press the

ENTER

E button. If

you select Store Demo, the TV
will reset your picture and audio
settings every 30 minutes.

Select the Antenna source
to memorize, you must select
Antenna Source to same type
as your cable system type. After
selecting source, select Start;
then press the

ENTER

E button

on your remote.

✎

Most cable systems are Standard(STD) systems, If you are not sure about
what kind of cable system you have, contact your cable company.

✎

If your TV is attached to a cable or satellite box, skip Steps 3 through 5. After
Plug & Play is complete, set your TV to Channel 3 or 4, according to the
directions for your cable or satellite box.

The TV memorizes the available
channels. This process can take
up to 45 minutes.

After the TV has memorized the
channels, choose the Clock
Mode. Select Auto if you have
a digital channel in your area.
Select Manual if you don’t, or
if you have a cable or satellite
box. When done, press the

ENTER

E button.

✎

If you select Manual, the
clock setting screen appears.

Select the daylight savings time
setting: Off, On or Auto and then
press the

ENTER

E button.

✎

This function is only available
when the Clock Mode is set to
Auto.

Select the time zone in which you live, and then press the

ENTER

E button.

After the time zone screen, The connection method for best HD screen
quality is displayed. Press Right arrow button on your remote to view each
screen in succession. Press the Blue button to skip this section.

The Enjoy your TV. screen appears. Then press the

ENTER

E button.

If You Want to Rerun Plug & Play
1. Press the

SOURCE

button on your remote, then select TV mode.

2. Press the

button on your remote to display the menu.

3. Press the

▲ or ▼ button to select Setup, and then press the

ENTER

button.

4. Press the

ENTER

E button again to select Plug & Play.

Connecting an audio device (Home Theater, etc.)

Connect your TV to your Home Theater or other audio device to enjoy enhanced
Sound quality.

Connecting a PC

Connect your TV to a PC to use it as a Monitor.

Top view

Front

Rear

Guide Stand

Screws (M4 X L10)

Stand

Rear

HDMI IN

HDMI OUT

AUDIO OUT

VIDEO OUT

AUDIO OUT

COMPONENT OUT

AUDIO OUT

DVI OUT

Using an HDMI to DVI Cable

HD connection (up to 720p/1080i)

Very Good Connection

Device

Best Connection

HD connection (up to 720p/1080i)

Using an HDMI Cable

DVD, Blu-ray player, HD cable box, HD STB

(Set-Top-Box) satellite receiver

Device

Using a Component Cable

Good Connection

Component connection (up to 720p/1080i)

DVD, Blu-ray player, cable box,

STB satellite receiver, VCR,

Device

Use one of the connections below to connect your TV to an external A/V device. We recommend using
HDMI for the highest picture quality.

✎

When connecting to

AV IN

on the back of your TV, attach the video cable (yellow) to the green jack

next to the

AV IN

label. The jack will not match the color of the video cable (yellow).

U Move E Enter

Select Language of the OSD.

Language

Plug & Play

English

Español

Français

L Move E Enter

Select ‘Home Use’ when installing this TV in your home.

Store Demo

Home Use

Plug & Play

U Move E Enter m Skip

Select the Antenna source to memorize.

Air

Cable

Auto

Start

Plug & Play

U Move E Enter m Skip

Set the Clock Mode.

Clock Mode

Auto

Manual

Plug & Play

U Move E Enter m Skip

Set to daylight saving time.

DST

Off

Auto

Plug & Play

48%

E Enter m Skip

Auto Program in Progress.

DTV Air : --

Air : --

DTV Cable : --

Cable : --

Cable : 35

Stop

Plug & Play

BN68-03115A-01

Lowest Quality Connection

Using an Audio/Video Cable

Audio/Video connection (480i only)

DVD, Blu-ray player, cable box, STB satellite
receiver, VCR

Device

VHF/UHF Antenna

Connect Ant In to

• Wall cable jack
• VHF/UHF Antenna
• Cable or Satellite box

Ant or Cable Out

Make sure the AC power cord is plugged in securely to
the wall outlet and the TV.

Use a 75 ohm (round) cable.

Antenna Cable

(Not Supplied)

HDMI Cable (Not Supplied)

HDMI to DVI Cable

(Not Supplied)

Audio Cable (Not Supplied)

Audio Cable

(Not Supplied)

Component Cable

(Not Supplied)

Video Cable

(Not Supplied)

AUDIO IN

OPTICAL

Analog Audio connection

Digital Audio connection

Amplifier / DVD home theater

Digital Audio System

Using an Audio Cable

Using an Optical Cable

Optical Cable (Not Supplied)

Audio Cable (Not Supplied)

DVI OUT

AUDIO OUT

PC OUT

HD connection

Using an HDMI to DVI Cable

Using a D-Sub Cable

HDMI to DVI Cable (Not Supplied)

D-Sub Cable (Not Supplied)

Audio Cable (Not Supplied)
