Connecting a VCR
2
3
If you have a “mono” (non-stereo) VCR,
use a Y-connector (not supplied) to
connect to the right and left audio input
jacks of the TV. Alternatively, connect
the cable to the “R” jack. If your VCR is
stereo, you must connect two cables.
➣
Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does
not match the color of the video cable (Yellow).
➣
➣
➣

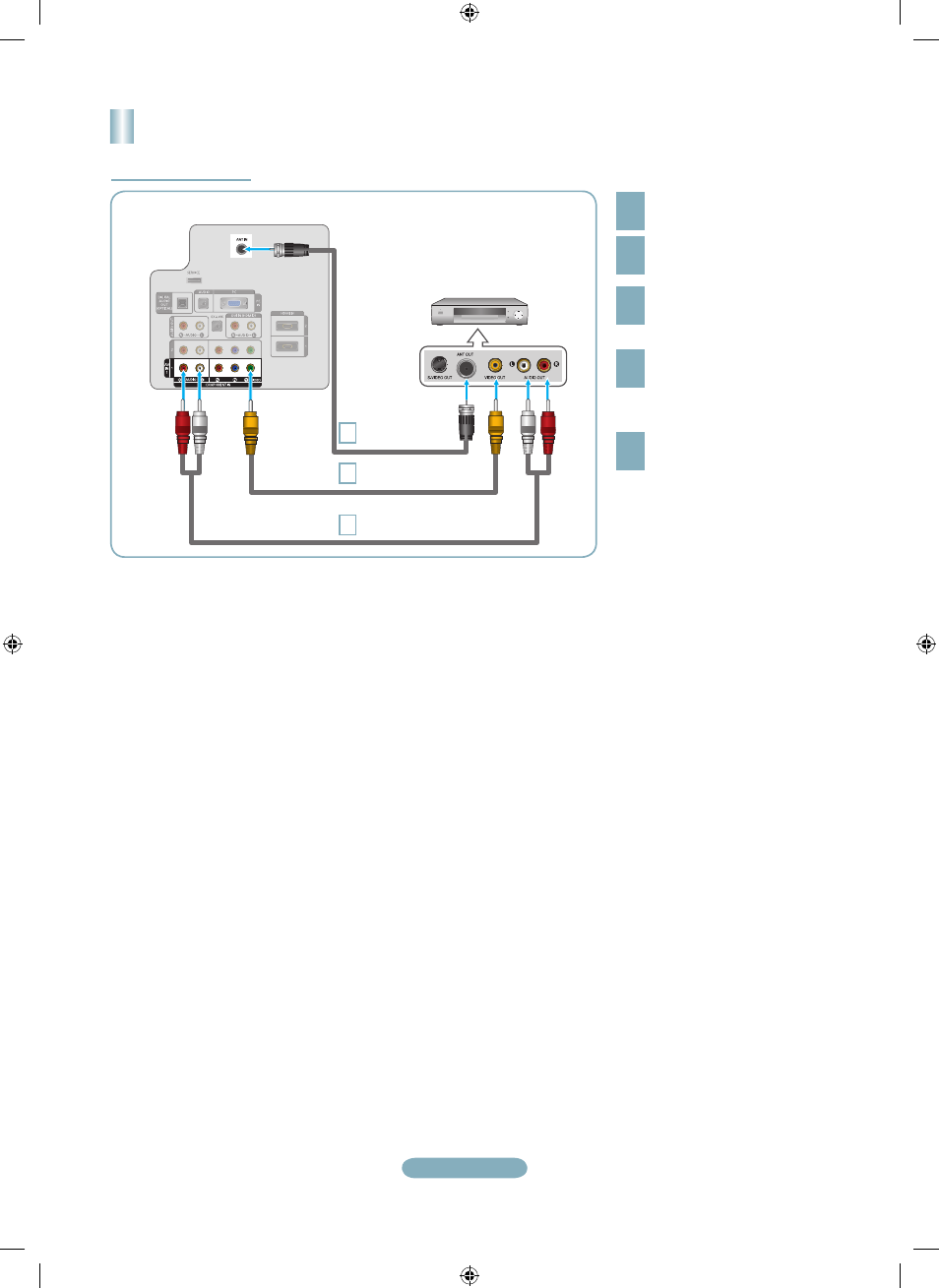

TV Rear Panel
3 RF Cable
(Not supplied)
Audio Cable (Not supplied)
VCR Rear Panel
Video Cable (Not supplied)
Connect the cable or antenna
to the ANT IN terminal on the
back of the VCR.
Connect an RF Cable between
the ANT OUT terminal on the
VCR and the ANT IN terminal
on the TV.
Connect a Video Cable between
the VIDEO OUT jack on the
VCR and the AV IN 1 [Y/VIDEO]
jack on the TV.
Unplug the cable or antenna
from the back of the TV.
Connect Audio Cables between
the AUDIO OUT jacks on
the VCR and the AV IN 1 [R-
AUDIO-L] jacks on the TV.
Video Connection
