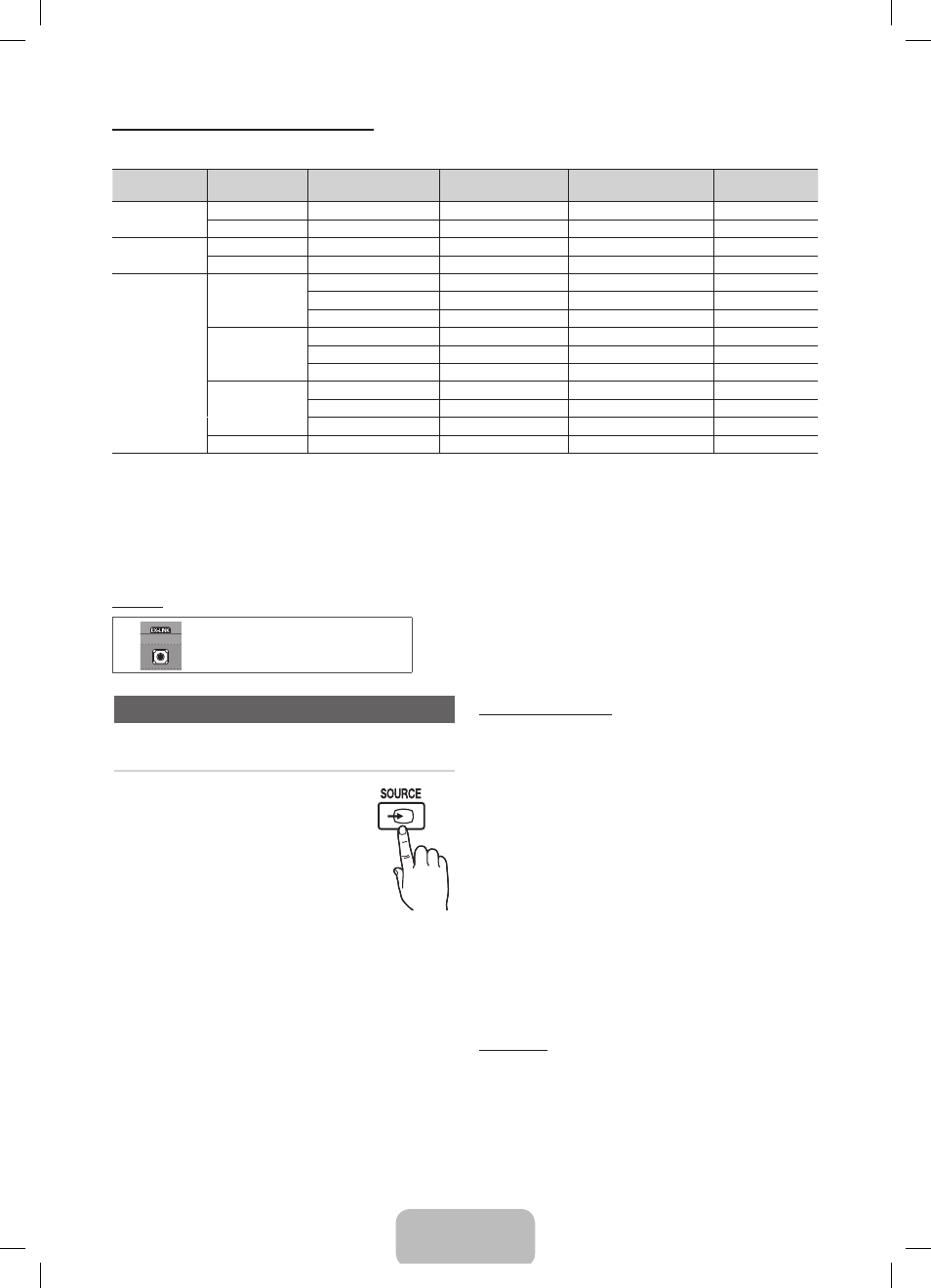

Display Modes (D-Sub and HDMI/DVI Input)
Optimal resolution is 1360 x 768@60Hz. You can also select one of the standard resolutions listed in the Resolution column.
The TV will automatically adjust to the resolution you choose.
Mode Resolution
Horizontal Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock Frequency
(MHz)
Sync Polarity (H/V)
IBM
640 x 350 31.469 70.086 25.175 + / -
720 x 400 31.469 70.087 28.322 - / +
MAC
640 x 480 35.000 66.667 30.240 - / -
832 x 624 49.726 74.551 57.284 - / -
VESA DMT
640 x 480
31.469 59.940 25.175 - / -
37.861 72.809 31.500 - / -
37.500 75.000 31.500 - / -
800 x 600
37.879 60.317 40.000 + / +
48.077 72.188 50.000 + / +
46.875 75.000 49.500 + / +
1024 x 768
48.363 60.004 65.000 - / -
56.476 70.069 75.000 - / -
60.023 75.029 78.750 + / +
1360 x 768 47.712 60.015 85.500 + / +
✎
NOTE
x For HDMI/DVI cable connection, you must use the HDMI IN 1 (DVI) jack.
x The interlace mode is not supported.
x The set might operate abnormally if you select a non-standard video format.
x Separate and Composite modes are supported. SOG (Sync On Green) is not supported.
EX-LINK
Connector for service only.
Changing the Input Source
Source
Use to select TV or an external input
sources such as a DVD / Blu-ray player /
cable box / STB satellite receiver.
1. Press the
SOURCE button.
2. Select a desired external input source.
■ ■ TV / Component / PC / HDMI1/
DVI / HDMI2 / HDMI3 / HDMI4 / AV
/ USB
✎
You can only choose external
devices that are connected to the TV. In the Source,
connected inputs will be highlighted.
✎
If you want to see connected devices only, move to
Connected using
◄ or ► button.
■ ✎
PC always stay activated.
✎
If the connected external devices are not highlighted,
press the red button. The TV will search for connected
devices.
How to use Edit Name
Edit Name lets you associate a device name to an input
source. To access Edit Name, press the
TOOLS button In
Source. The following selections appear under Edit Name:
■ VCR / DVD / Cable STB / Satellite STB / PVR STB /
AV Receiver / Game / Camcorder / PC / DVI PC / DVI
Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name
the device connected to the input jacks to make your
input source selection easier.
✎
If you have connected a PC to the HDMI IN 1 (DVI)
port with an HDMI cable, select PC under Edit Name
to enter a device name.
✎
If you have connected a PC to the HDMI IN 1 (DVI)
port with an HDMI to DVI cable, select DVI PC under
Edit Name to enter a device name.
✎
If you connected an AV device to the HDMI IN 1 (DVI)
port with an HDMI to DVI cable, select DVI Devices
under mode under Edit Name to enter a device name.
Information
You can see detailed information about the selected external
device.
