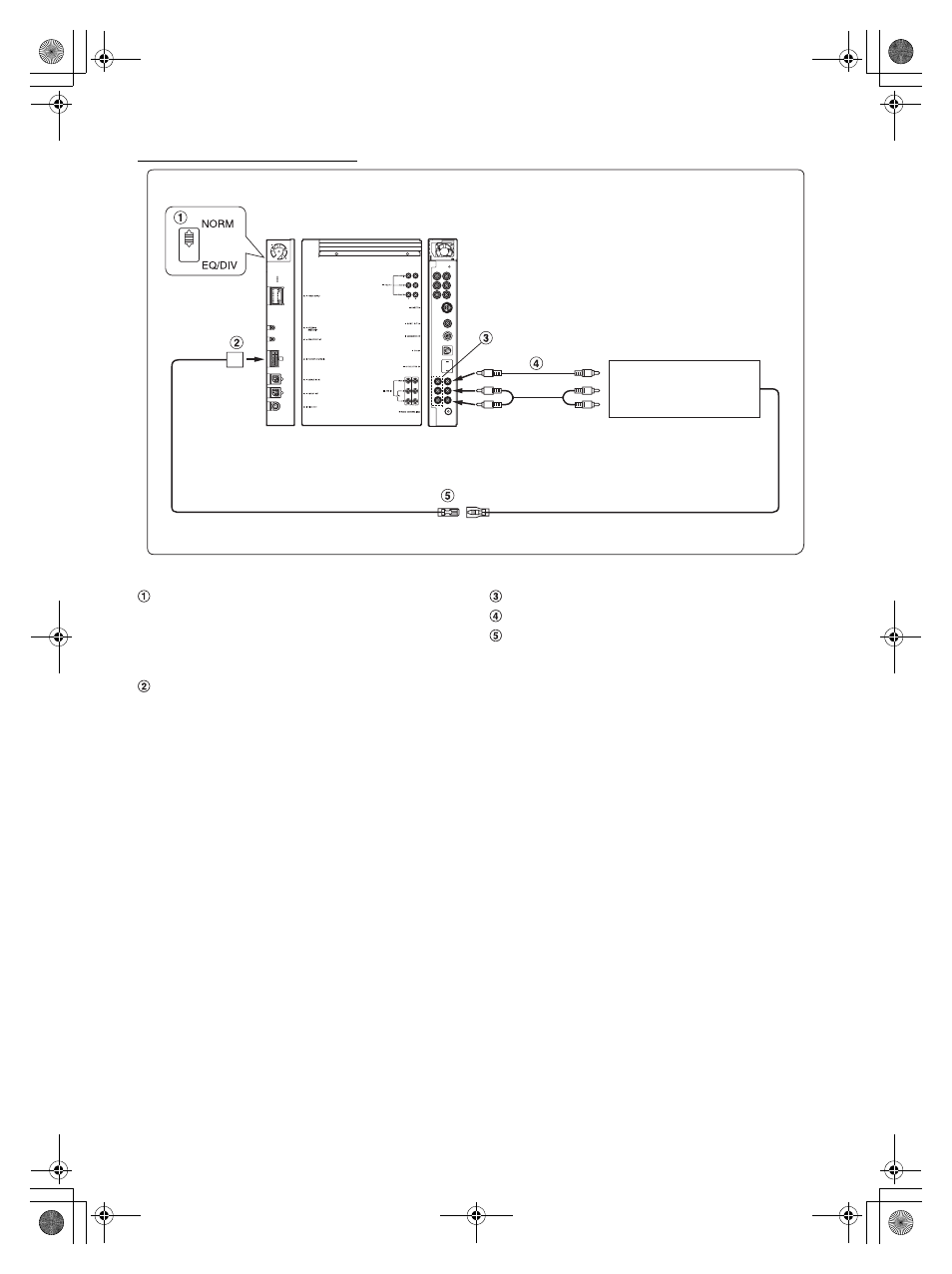

When Connecting External Equipment
VPA-B222
System Switch
When connecting an equalizer or divider using Ai-NET
feature, place this switch in the EQ/DIV position. When no
device is connected, leave the switch in the NORM position.
• Be sure to turn the power off on the unit before changing the
switch position.
Factory System Input Terminal
AUX Video/Audio Input Terminal
RCA Extension Cable (Sold separately)
Remote Control Output Lead (White/Brown)
Connect this lead to the remote control input lead. This lead
outputs the controlling signals from the remote control.
To Video Output terminal
To Audio Output terminal
(White/Brown) REMOTE OUT REMOTE IN (White/Brown)
TV Tuner, VCR or DVD Player
(DVE-5207) that is not
compatible with Ai-NET (Sold
Separately)
