Connecting a Camcorder
You can use your camcorder to view tapes without using a VCR.
1 Locate the A/V output jacks
on the camcorder. They are
usually found on the side or
back of the camcorder.
2 Connect a set of audio
cables between the AUDIO
IN jacks on the TV and the
AUDIO OUT jacks on the
camcorder. If you have a
mono Camcorder, connect
L(mono) to the Camcorder
audio out using only one
audio cable.
3 Connect a video cable
between the VIDEO IN (or
S-VIDEO IN) jack on the TV
and the VIDEO OUT jack
on the Camcorder. The
audio-video cables shown
here are usually included
with a Camcorder. (If not,
check your local electronics
store.) If your Camcorder is
stereo, you need to connect
a set of two cables.

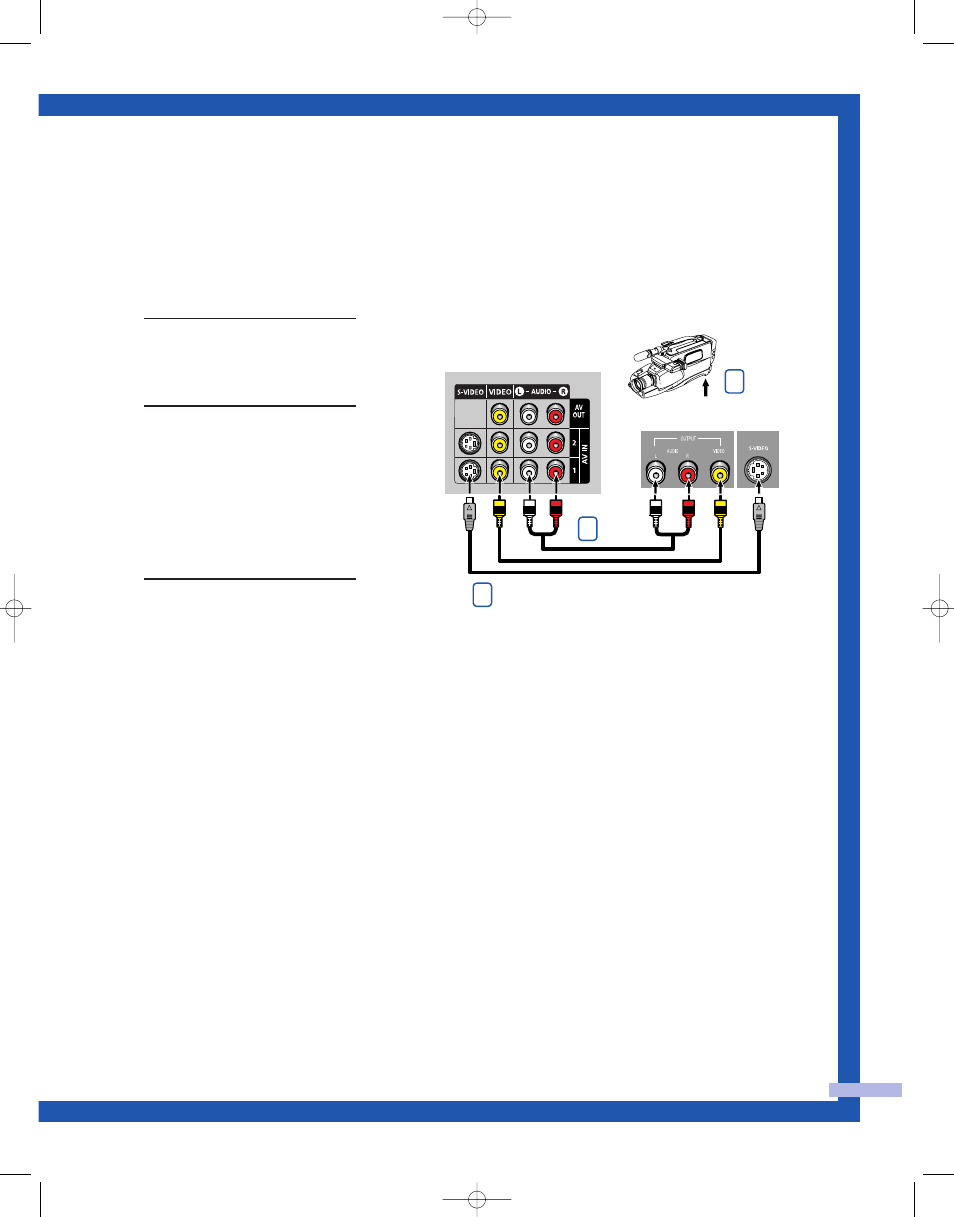

Camcorder
Output Jacks
Camcorder
TV Rear Panel
English - 25
