English - 11

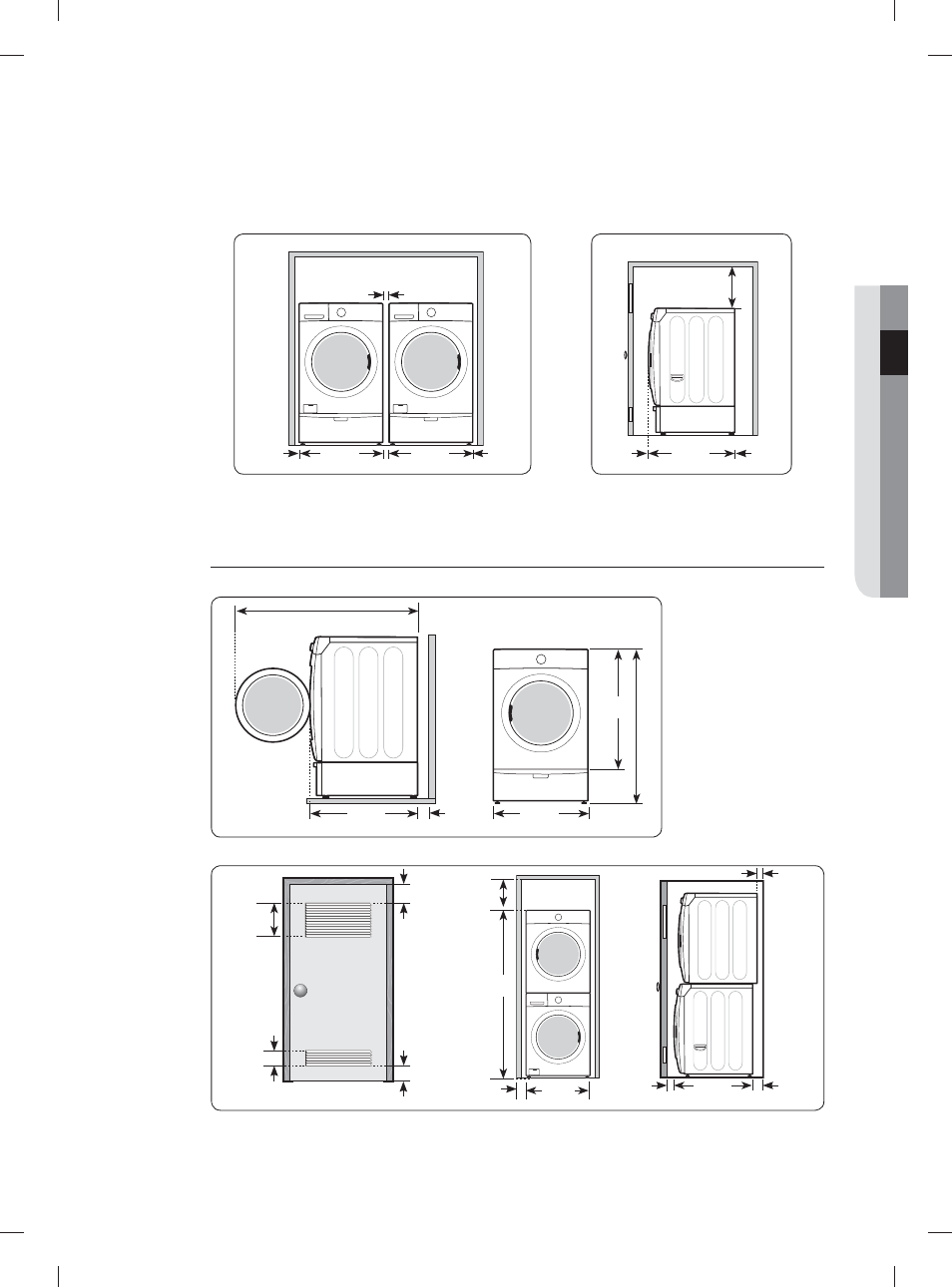

MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:
Sides - 1 In.(2.5 cm)
Rear - 5 In. (12.7 cm)
Top - 17 In.(43.2 cm)
Closet Front - 2 In. (5.1 cm)
If the washer and dryer are installed together, the closet front must have at least a 72 in²
(465cm²) unobstructed air opening. Your washer alone does not require a specific air opening.
A. Recessed area
B. Side view - closet or confined area
With optional pedestal base or stacking kit
Required Dimensions for Installation With Pedestal
Required Dimensions for Installation With Stacking Kit
* Required spacing
** External exhaust elbow requires additional space.
02 installing your dryer
B
2 in.
(5 cm)
31.9 in.
(81.1 cm)
5 in.
(12.7 cm)
17 in.
(43.2 cm)
A
1 in.
(2.5 cm)
27 in.
(68.6 cm)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
30.9 in.
(78.3 cm)
5 in
(12.7 cm)
49 in. (124.5 cm) to clear open door
27 in.
(68.6 cm)
38.6 in.
(98.1 cm)
53.6 in.
(136.2 cm)
3 in.
(7.6 cm)
Closet or Door
48 in.² *
(310 cm²)
3 in.
(7.6 cm)
24 in.² *
(155 cm²)
31.3 in.
(79.4 cm)
1 in.
(2.5 cm)
5.5 in.**
(14 cm)
2.5 in
(6.3 cm) 6 in. *
(15.2 cm)
77.2 in.
(196.2 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
