Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD players or a VCR.
For more information on connecting equipment, see pages 6~11.
HDMI IN4

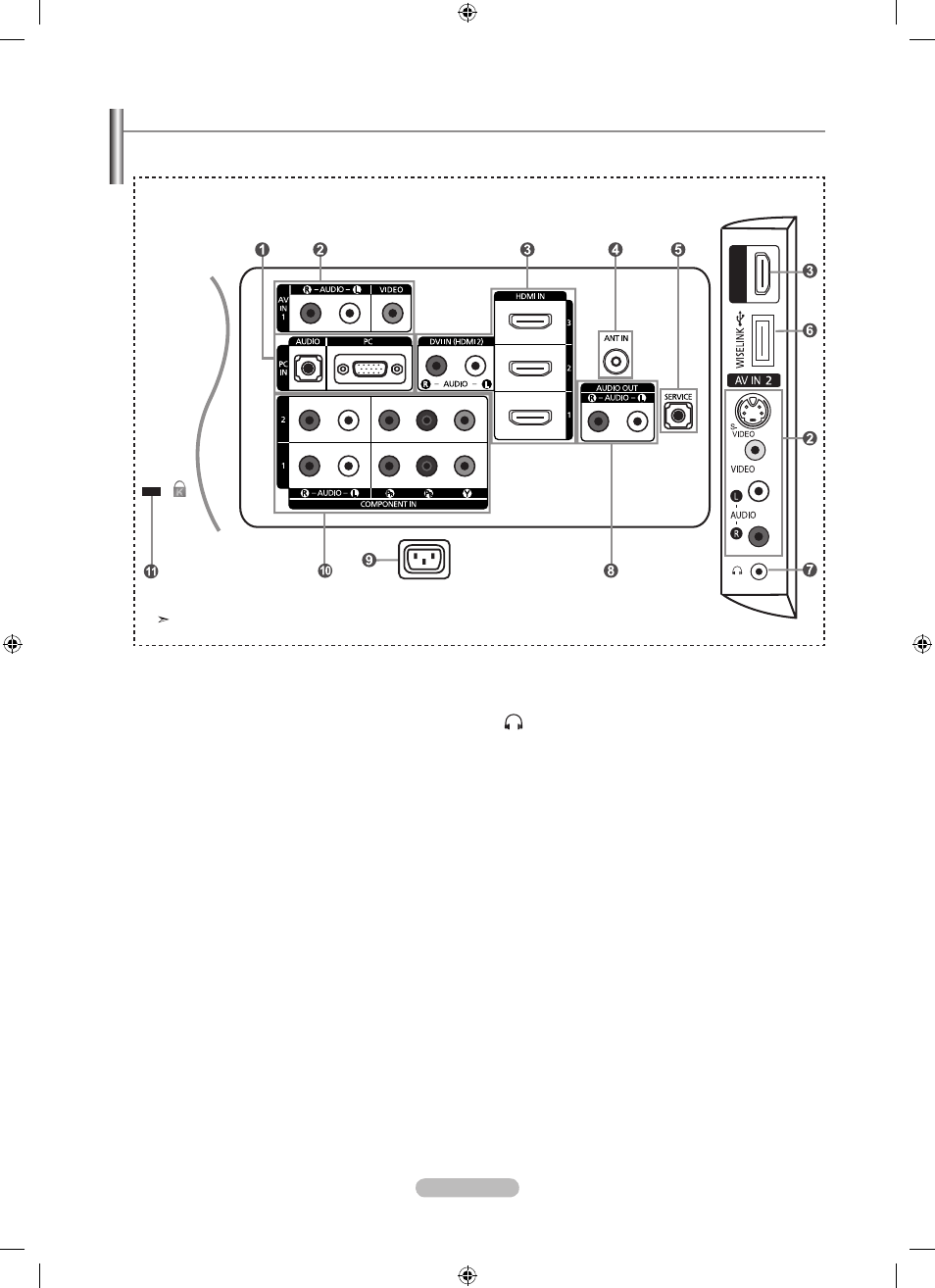

[tV Side Panel] [tV rear Panel]
The product color and shape may vary depending on the model.
1 PC In [PC] / [auDIo]
Connects to the video and audio output jacks on your
PC.
2 aV In ,
Video and audio inputs for external devices, such as a
camcorder or VCR.
S-VIDEo
Connects an S-Video signal from a camcorder or VCR.
3 hDmI In , , , 4 / DVI In(hDmI)[r-auDIo-l]
Connects to the HDMI jack of a device with an HDMI
output.
- No sound connection is needed for an HDMI to HDMI
connection.
Use the HDMI IN 2 jack for DVI connection to an external
device. Use a DVI to HDMI cable or DVI-HDMI adapter
(DVI to HDMI) for video connection and the
DVI IN (HDMI2) [R-AUDIO-L] jacks for audio.
- When using an HDMI/DVI cable connection, you must use
the HDMI IN 2 jack.
4 ant In
Connects to an antenna or cable TV system.
5 SErVICE
- Connector for SERVICE only.
- Connect this to the jack on the optional wall mount
bracket. This will allow you to adjust the TV viewing angle
using your remote control.
6 WISElInK
Connect a USB mass storage device to view photo files
(JPEG), play audio files (MP3) and videos (AVI, MP4, PS).
7 (hEaDPhonE)
Connects a set of external headphones for private listening.
8 auDIo out
Connects to the audio input jacks on your Amplifier/
Home theater.
9 PoWEr InPut
Connects the supplied power cord.
0 ComPonEnt In ,
Connects Component video/audio.
! KEnSInGton loCK (depending on the model)
The Kensington lock (optional) is a device used to
physically fix the system when used in a public place. If you
want to use a locking device, contact the dealer where you
purchased the TV.
The location of the kensington lock may be different
depending on its model.
➣
English - 4
Viewing the Connection Panel
