Step-by-step installation guide
2. VENTILATION TYPES (CHOOSE A, B OR C)
This microwave oven is compatible with the following
three types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Recirculating (Non-Vented Ductless)
C. Outside Back Exhaust (Horizontal Duct)
NOTE: This microwave is shipped assembled
for Outside Top Exhaust (except for non-vented
models). An exhaust adaptor is shipped assembled
and attached to the filler-upper. Select the type of
ventilation required for your installation and proceed to
that section.

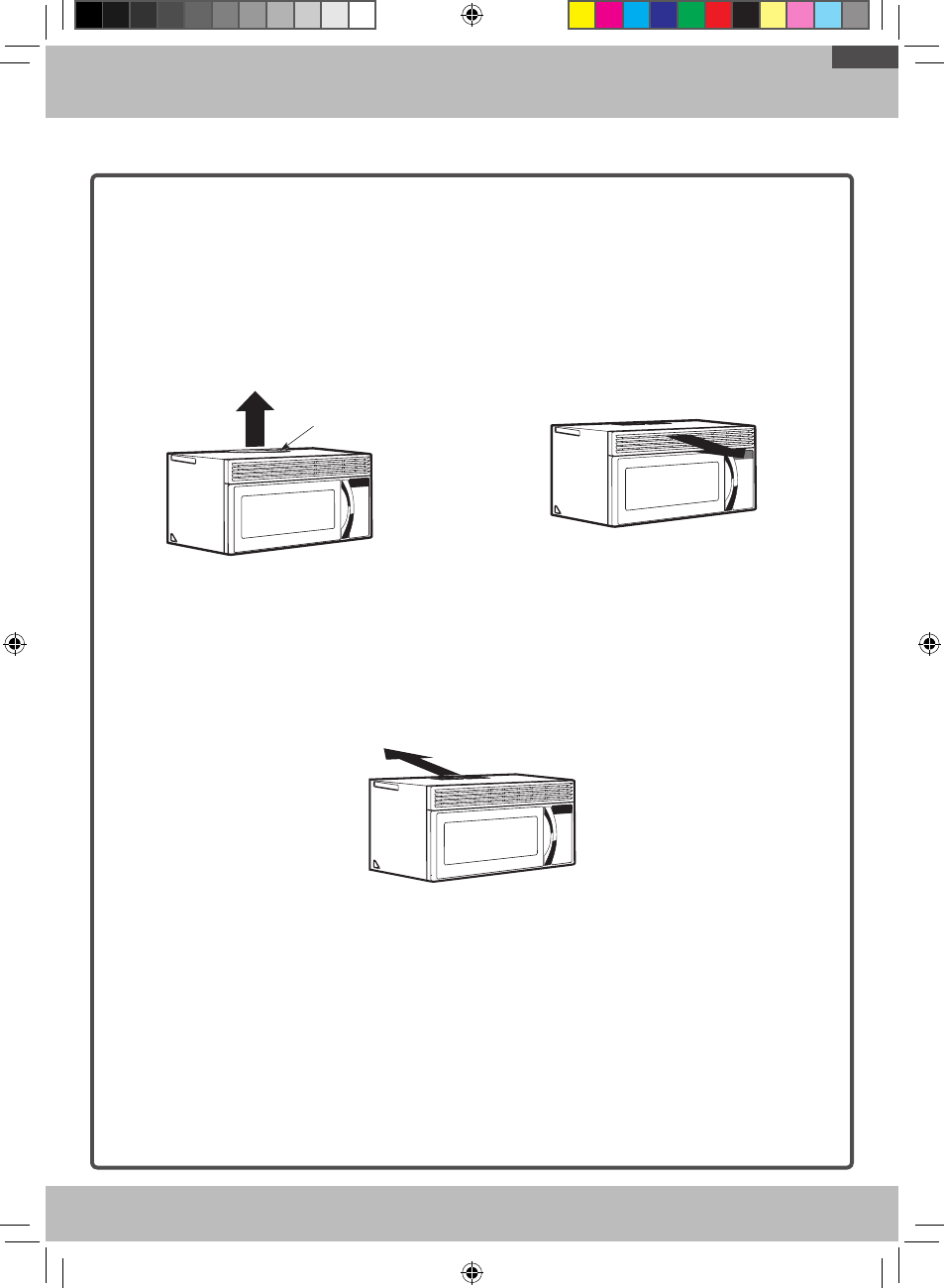

A. OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
B. RECIRCULATING (NON-
VENTED DUCTLESS)
Adaptor in Place
for Outside
Top Exhaust
Adaptor in Place
for Outside Top
Exhaust
See page 12 See page 13
A Charcoal Filter Accessory Kit is required for the
nonvented exhaust. (See your Owner’s Manual for the
kit number.)
C. OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
See page 14
