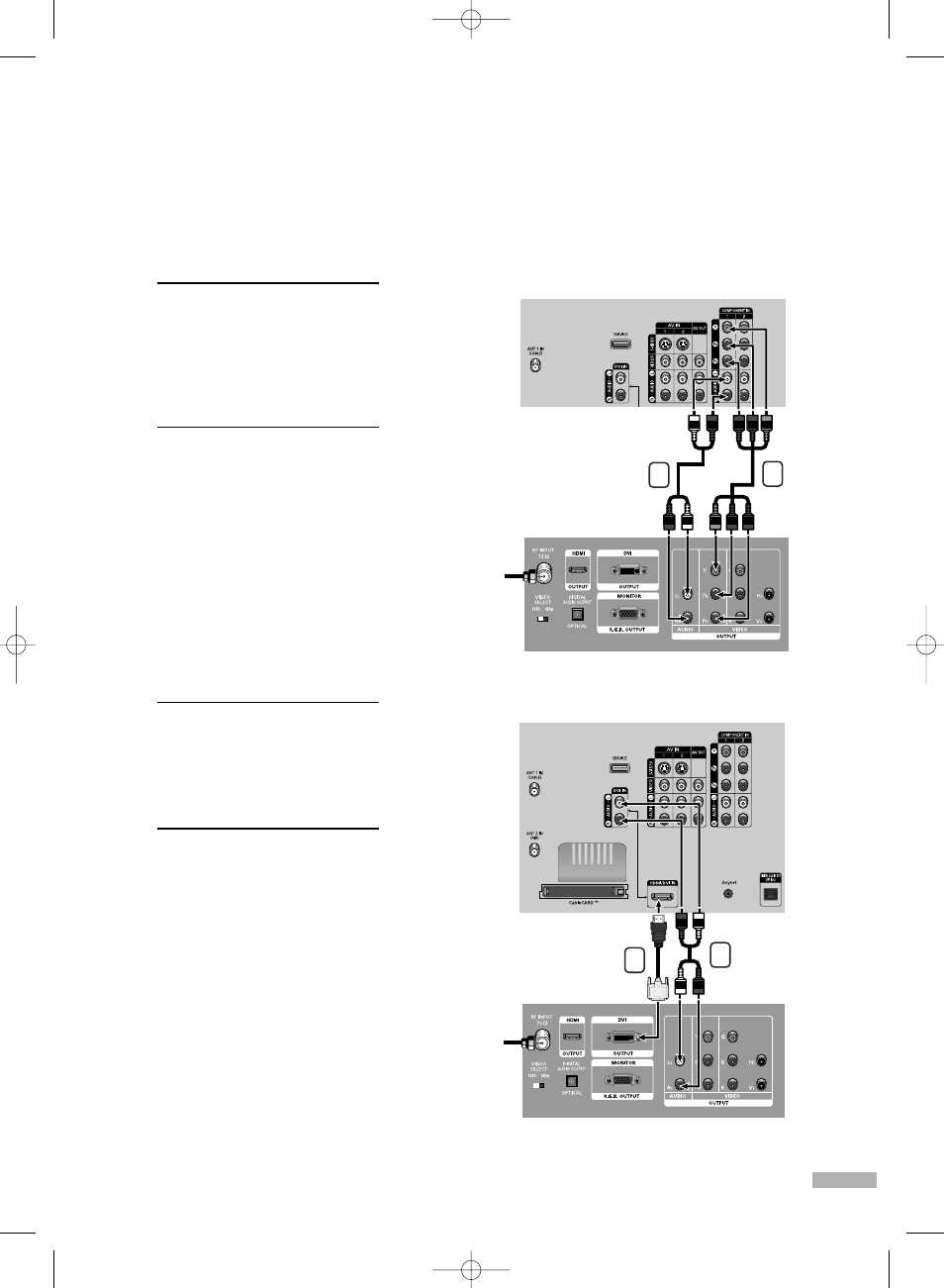

Connecting a DTV Set-Top Box
Connecting to Y, P
B
, P
R
1 Connect a set of audio
cables between the
COMPONENT (1 or 2)
AUDIO (L, R) IN jacks on
the TV and the AUDIO OUT
jacks on the Set-Top Box.
2 Connect a set of video
cables between the
COMPONENT (1 or 2)
VIDEO (Y, P
B , P R ) IN jacks
on the TV and VIDEO
(Y/P
B /P R or Y/C B /C R ) OUT
jacks on the Set-Top Box.
Connecting to DVI (Digital Visual Interface)
1 Connect a set of audio
cables between the DVI
AUDIO (L, R) IN jacks on the
TV and the AUDIO OUT
jacks on the Set-Top Box.
2 Connect an HDMI/DVI
video cable between the
HDMI/DVI IN jack on the
TV and the DVI OUT jack
on the Set-Top Box.
NOTES
• For an explanation
of Component video, see
your Set-Top Box owner’s
manual.
• Requires a Cable Converter.
English - 25
TV Rear Panel
DTV Set-Top Box
Incoming
Cable or
Antenna
TV Rear Panel
DTV Set-Top Box
Incoming
Cable or
Antenna
1
1
2
2
