installing your dryer _11
ALCOVE OR CLOSET INSTALLATION
MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:
Sides – 1 in / 25 mm
Rear – 5 in / 127 mm Top – 17 in / 432 mm
Closet Front – 2 in / 51 mm
If the washer and dryer are installed together, the closet front must have at least a 72 in²
(465 cm²) unobstructed air opening.

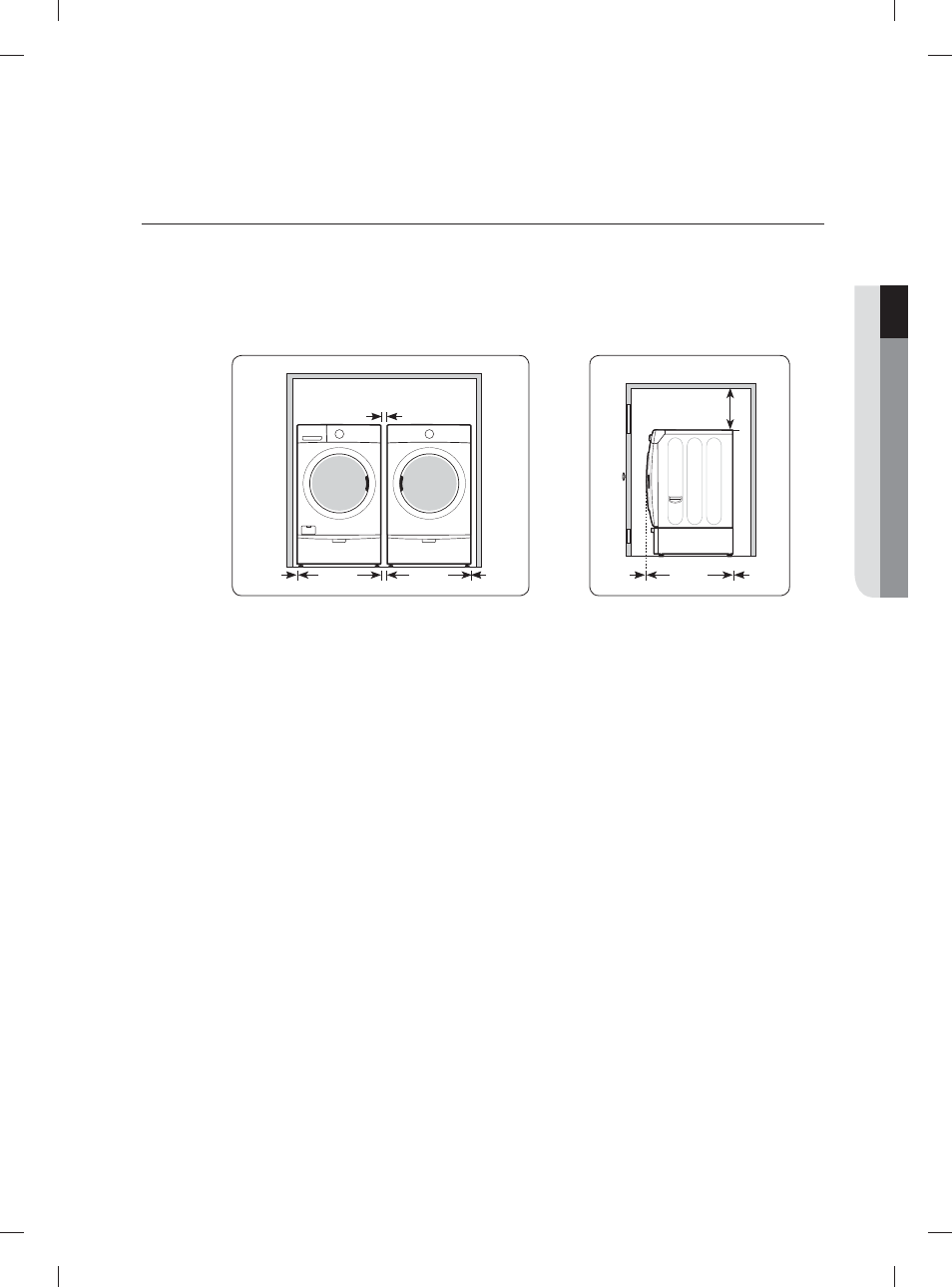

A. Recessed area
B. Side view - closet or confined area
01 installing your dryer
B
2 in.
(5 cm)
31.9 in.
(81.1 cm)
5 in.
(12.7cm)
17 in.
(43.2 cm)
A
1 in.
(2.5 cm)
27 in.
(68.6 cm)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
