I N S TA L L AT I O N
3
Connect an RF cable
between the ANT OUT
terminal on the VCR
and the ANT IN
terminal on the TV.
4
Connect an audio cable
between the AUDIO OUT
jacks on the VCR and
the AV IN [L-AUDIO-R]
jacks on the TV.
An RF cable is usually included with a VCR. (If not, check your local electronics store).
If you have a “mono” (non-stereo) VCR, use the Y-connector (not supplied) to hook up to the left
and right audio input jacks of the TV.

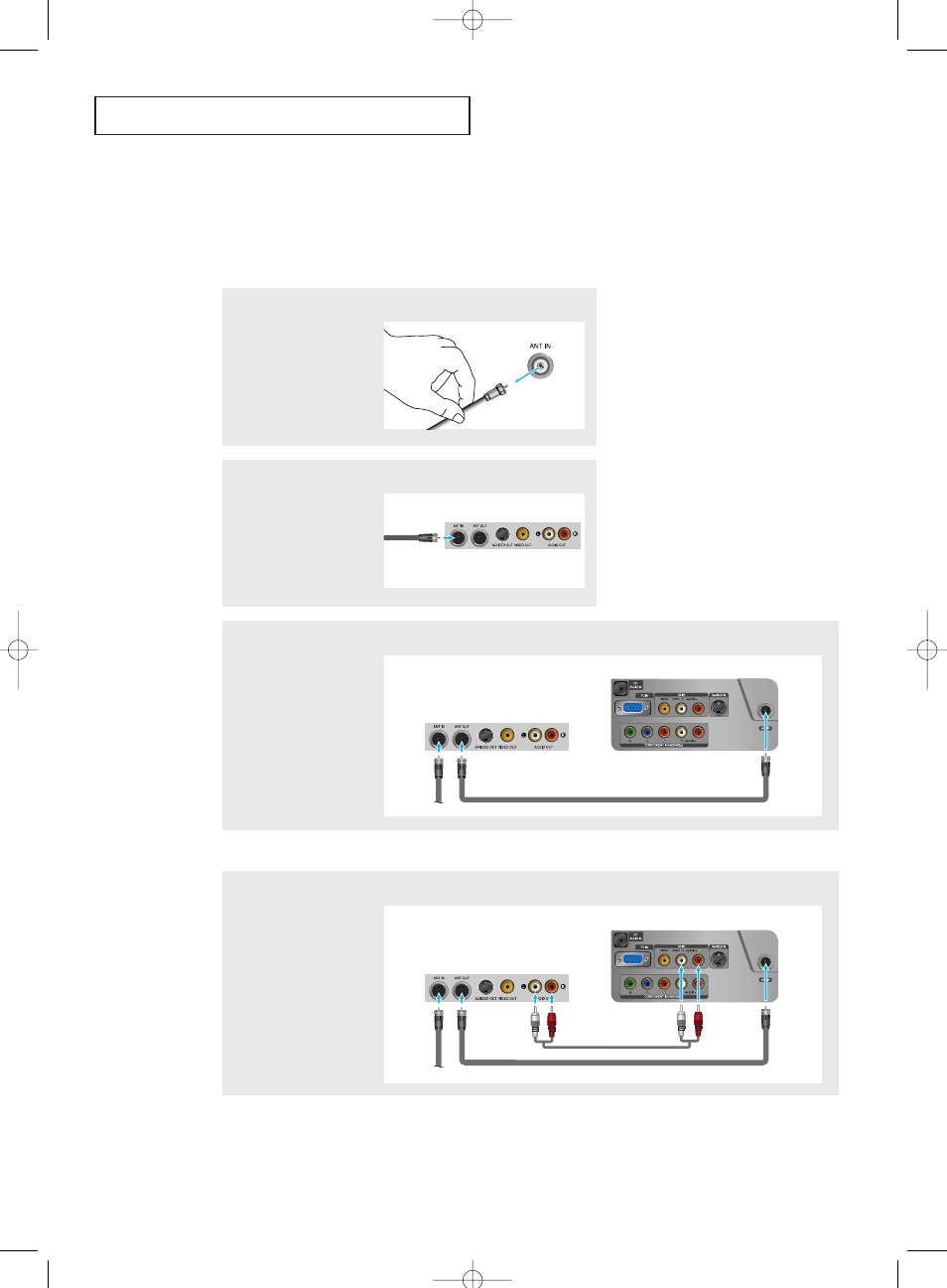

Connecting a VCR
These instructions assume that you have already connected your TV to an antenna or a
cable TV system (according to the instructions on pages 6-9).
Skip step 1 if you have not yet connected to an antenna or a cable system.
1
Unplug the cable or
antenna from the
back of the TV.
2
Connect the cable or
antenna to the ANT IN
terminal on the back of
the VCR.
TV Rear Panel
VCR Rear Panel
Incoming Cable
or Antenna
RF Cable
VCR Rear Panel
TV Rear Panel
Audio Cable
VCR Rear Panel
