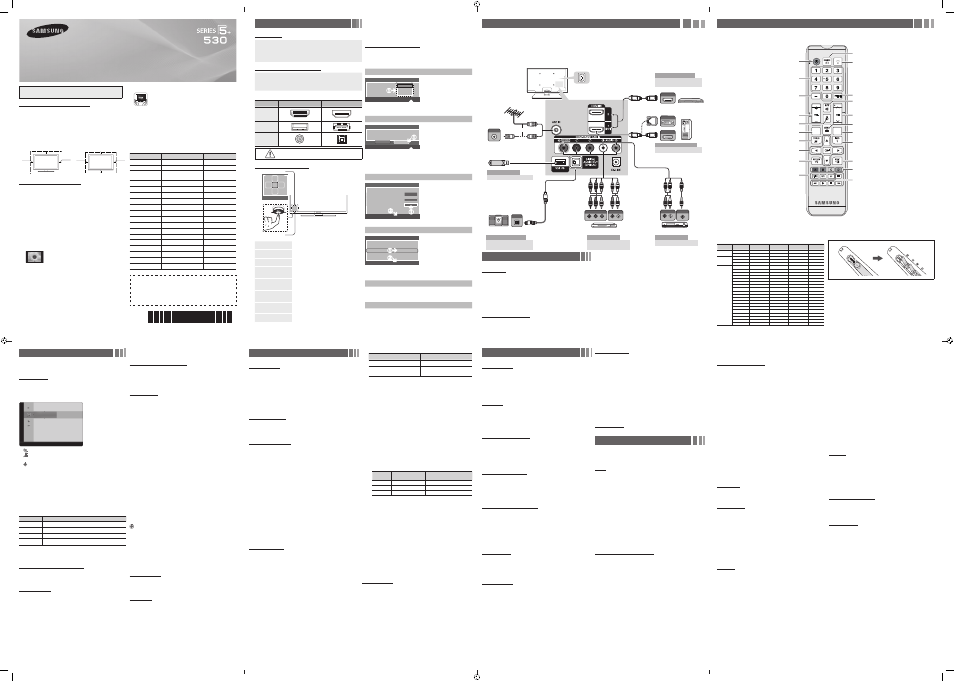

Connections
• For better picture and audio quality, connect to a digital device using an HDMI cable.
• The picture may not display normally (if at all) or the audio may not work if
an external device that uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.
• Be sure to purchase a certified HDMI cable. Otherwise, the picture may not
display or a connection error may occur.
• PC(D-Sub) and PC/DVI AUDIO IN input are not supported.
• For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.
• Connecting through the HDMI cable may not be supported depending on the PC.
• If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.
• EX-LINK: Connector for service only.
• The PDP device may interfere with an amateur radio or AM radio.
• When using two-way radio mobile and portable units or amateur radio or AM
radio near by your TV, this may cause the TV to malfunction.
Picture Menu
Mode t
Select your preferred picture type.
✎ When connecting a PC, you can only select Entertain and Standard.
■ ■ Dynamic: Suitable for a bright room.
■ ■ Standard: Suitable for a normal environment.
■ ■ Movie: Suitable for watching movies in a dark room.
■ ■ Entertain: Suitable for watching movies and games.
✎ Only available when connecting a PC.
Cell Light / Contrast / Brightness / Sharpness /
Color / Tint (G/R)
Your television has several setting options for picture quality control.
✎ When connecting a PC, you can only make changes to Cell Light,
Contrast, Brightness and Sharpness
Advanced Settings
(available in Standard / Movie mode)
Compared to previous models, new Samsung TVs have a more precise
picture.
✎ When connecting a PC, you can only make changes to Gamma and
White Balance.
■ ■ Color Space (Auto / Native): Adjusts the range of colors available to create
the image.
■ ■ White Balance: Adjusts the color temperature for a more natural picture.
R-Offset / G-Offset / B-Offset: Adjusts each color’s (red, green, blue)
darkness.
R-Gain / G-Gain / B-Gain: Adjusts each color’s (red, green, blue)
brightness.
Reset: Resets the White Balance to it’s default settings.
■ ■ Gamma: Adjusts the primary color intensity.
■ ■ Dynamic Contrast (Off / Low / Medium / High): Adjusts the screen contrast.
■ ■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust
the screen depth.
■ ■ Flesh Tone: Emphasize pink “flesh tone”.
■ ■ Motion Lighting (Off / On): Reduce power consumption by brightness
control adapted motion.
✎ Available in Standard mode only.
Picture Options
✎ When connecting a PC, you can only make changes to the Color Tone,
Size and HDMI Black Level.
■ ■ Color Tone (Cool / Standard / Warm1 / Warm2)
✎ Warm1 or Warm2 will be deactivated when the picture mode is
Dynamic.
■ ■ Size: Your cable box/satellite receiver may have its own set of screen sizes as
well. However, we highly recommend you use 16:9 mode most of the time.
16:9: Sets the picture to 16:9 wide mode.
Zoom1: Use for moderate magnification.
Zoom2: Use for a stronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen.
4:3: Sets the picture to basic (4:3) mode.
✎ Do not watch in 4:3 format for a long time. Traces of borders displayed
on the left, right and center of the screen may cause image retention
(screen burn) which are not covered by the warranty.
Screen Fit: Displays the full image without any cut-off when HDMI (720p
/ 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.
✎ HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720).
✎ Settings can be adjusted and stored for each external device you have
connected to an input on the TV.
✎ Picture Sizes available by Input Source:
Input Source Picture Size
ATV, AV, Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3
DTV(1080i, 1080p), Component (1080i,
1080p), HDMI (720p, 1080i, 1080p) 16:9, Wide Fit, 4:3, Screen Fit
■ ■ Digital Noise Filter (Off / Low / Medium / High / Auto) : If the broadcast signal received by your TV is weak, you can activate the Digital Noise Filter
feature to reduce any static and ghosting that may appear on the screen.
✎ When the signal is weak, try other options until the best picture is
displayed.
■ ■ HDMI Black Level (Normal / Low) : Selects the black level on the screen to
adjust the screen depth.
✎ Available only in HDMI mode (RGB signals).
■ ■ Film Mode (Off / Auto) : Sets the TV to automatically sense and process film
signals from all sources and adjusts the picture for optimum quality.
✎ Available in ATV, DTV(interlace), AV, COMPONENT (480i / 1080i) and
HDMI (480i / 1080i).
■ ■ Screen Burn Protection : To reduce the possibility of screen burn, this unit is
equipped with Pixel Shift screen burn prevention technology. Pixel Shift moves
the picture slightly on the screen. The Time function setting allows you to
program the time between movement of the picture in minutes. Your TV also has the following additional screen burn protection functions:
x Pixel Shift (Off / On) : Using this function, you can set the TV to move
pixels minutely on the PDP screen in a horizontal or vertical direction to
minimize after images on the screen.
✎ Available Pixel Shift Settings and Optimum Settings
Available Settings Optimum Settings for TV/AV/
Component/HDMI
Horizontal 0~4(pixels) 4
Vertical 0~4(pixels) 4
Time (minute) 1~4 min 4 min
✎ The Pixel Shift value may differ depending on the monitor size
(inches) and mode.
✎ This function is not available in the Screen Fit mode.
x Scrolling: This function removes after-images on the screen by illuminating all the pixels on the PDP according to a pattern. Use
this function when there are after images or symbols on the screen,
especially when you displayed a still image on the screen for a long
time.
✎ The after-image removal function has to be executed for a long
time (approximately 1 hour) to effectively remove after-images on
the screen. If the after-image is not removed after you apply the
function, repeat the function again.
✎ Press any key on the remote control to cancel this feature.
x Side Gray (Light / Dark): When you watch TV with the screen ratio set
to 4:3, using the Side Gray function can prevent damage to the edges
of the screen by adjusting the white balance on the extreme left and right sides.
Picture Reset
Resets your current picture mode to its default settings.
■ ■ Reset Picture Mode: Returns all picture values in the currently selected mode
to the default settings.
Channel Menu
❑ Seeing Channels
Channel List
Add, delete or set Favorite channels and use the program guide for
digital broadcasts. Select a channel in the All Channels, Added Channels, Favorite or Programmed screen by pressing the ▲ / ▼
buttons, and pressing the ENTER E button. Then you can watch the
selected channel.
Added Channels
6 Air
6-1 ♥ TV #6
7-1 ♥ TV #7
8 Air
9 Air 9-1 ♥ TV #9
10 Air
10-1 ♥ TV #10 11-1 ♥ TV #11
Air ' Zoom ' Select T Tools ► Next Program
■ ■ All Channels: Shows all currently available channels.
■ ■ Added Channels: Shows all added channels.
■ ■ * Favorite: Shows all favorite channels.
■ ■ Programmed: Shows all currently reserved programs.
✎ Using the remote control buttons with the Channel List
x Green (Zoom): Enlarges or shrinks a channel number.
x Yellow (Select): Selects multiple channel lists. Select desired
channels and press the Yellow button to set all the selected channels
at the same time. The c mark appears to the left of the selected
channels.
x T (Tools): Displays the Channel List option menu. (The Options
menus may differ depending on the situation.)
Channel Status Display icons
Icons Operations
c A channel selected.
* A channel set as a Favorite.
) A reserved program.
( A program currently being broadcast.
❑ Memorizing channels
Antenna (Air / Cable) t
Before your television can begin memorizing the available channels, you
must specify the type of signal source that is connected to the TV (i.e. an
Air or a Cable system).
Auto Program
✎ When selecting the Cable TV system: Selects the cable system. STD,
HRC and IRC identify various types of cable TV systems. Contact your
local cable company to identify the type of cable system that exists in
your particular area. At this point, the signal source has been selected.
✎ After all the available channels are stored, it starts to remove scrambled
channels. The Auto program menu then reappears.
✎ Press the ENTER E button to stop the channel store during Auto Program.
How to Stop Auto Programming
1. Press the ENTER E button.
2. A message will ask Stop Auto Program? Select Yes by pressing the ◄ or
► button.
3. Press the ENTER E button.
❑ Other Features
Clear Scrambled Channel
This function filters out scrambled channels after Auto Program is
completed. This process may take up to 20~30 minutes.
✎ Press the ENTER E button to stop the Clear Scrambled Channel.
✎ This function is only available in Cable mode.
Channel List
Channel List Option Menu
t
Set each channel using the Channel List menu options. Option menu
items may differ depending on the channel status.
■ ■ Add / Delete: Delete or add a channel to display the channels you want.
✎ All deleted channels will be shown on the All Channels menu.
✎ A gray-colored channel indicates the channel has been deleted.
✎ The Add menu only appears for deleted channels.
✎ Delete a channel from the Added Channels or Favorite menu in the
same manner.
■ ■ Add to Favorite / Delete from Favorite t: Set channels you watch
frequently as Favorites.
■ ■ Timer Viewing: You can set a desired channel to be displayed automatically
at the set time; even when you are watching another channel. Set the
current time first to use this function.
✎ Only memorized channels can be reserved.
✎ Reserved programs will be displayed in the Programmed menu.
✎ When a digital channel is selected, press the ► (Next
Program ) button to view the digital program. If you select the
ENTER E(Schedule) button on the next program, you can set
Timer Viewing directly.
■ ■ Channel Name Edit (analog channels only): Assign your own channel
name.
■ ■ Select All: Select all the channels in the channel list.
■ ■ Deselect All: Deselect all the selected channels. ✎ You can only select Deselect All when one or more channels are
selected.
■ ■ Auto Program: Scans for a channel automatically and stores in the TV.
Programmed
(in Channel List)
You can view, modify or delete a show you have reserved to watch.
■ ■ Change Info: Change a show you have reserved to watch.
■ ■ Cancel Schedules: Cancel a show you have reserved to watch.
■ ■ Information: Display a show you have reserved to watch. (You can also
change the reservation Information.)
■ ■ Select All / Deselect All: You can select or deselect all channels in the
channel list.
Channel Mode
Change the channel mode directly between Added Channels and
Favorite Channels.
✎ The Favorite Channels is enabled only when you set Add to Favorite.
Fine Tune
(analog channels only)
If the reception is clear, you do not have to fine tune the channel, as this
is done automatically during the search and store operation. If the signal is weak or distorted, fine tune the channel manually.
✎ Fine tuned channels that have been saved are marked with an asterisk
“*” on the right-hand side of the channel number in the channel banner.
✎ To reset the fine-tuning, select Reset.
Sound Menu
Mode t
■ ■ Standard: Selects the normal sound mode.
■ ■ Music: Emphasizes music over voices.
■ ■ Movie: Provides the best sound for movies.
■ ■ Clear Voice: Emphasizes voices over other sounds.
■ ■ Amplify: Increase the intensity of high-frequency sounds to allow a better
listening experience for the hearing impaired.
Equalizer
(standard sound mode only)
■ ■ Balance L/R: Adjusts the balance between the right and left speaker.
■ ■ 100Hz / 300Hz / 1KHz / 3KHz / 10KHz (Bandwidth Adjustment): Adjusts the
level of specific bandwidth frequencies.
■ ■ Reset: Resets the equalizer to its default settings.
SRS TruSurround HD
(standard sound mode only)
SRS TruSurround HD is a patented SRS technology that solves the
problem of playing 5.1 multichannel content over two speakers.
TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television
speakers. It is fully compatible with all multichannel formats.
Preferred Language
(digital channels only)
Digital-TV broadcasts are capable of simultaneous transmission of many
audio tracks (for example, simultaneous translations of the program into
foreign languages).
✎ You can only select a language from among the ones being broadcasted.
Multi-Track Sound (MTS)
(analog channels only)
■ ■ Mono: Choose for channels that are broadcasting in mono or if you are
having difficulty receiving a stereo signal.
■ ■ Stereo: Choose for channels that are broadcasting in stereo.
■ ■ SAP: Choose to listen to the Separate Audio Program, which is usually a
foreign-language translation.
✎ Depending on the program being broadcast, you can listen to Mono,
Stereo or SAP.
Auto Volume
Because each broadcasting station has its own signal conditions, the volume may fluctuate each time channel is changed. This feature lets you
automatically adjust the volume of the desired channel by lowering the
sound output when the modulation signal is high or by raising the sound
output when the modulation signal is low.
SPDIF Output
The SPDIF (Sony Philips Digital InterFace) outputs an uncompressed digital
audio signal when you connect the digital audio jack on the back of the TV
to a digital audio in jack on a receiver or home theater.
■ ■ Audio Format: You can select the Digital Audio output (SPDIF) format. The
available Digital Audio output (SPDIF) format may differ depending on the input source.
✎ By connecting the TV to a receiver or home theater with Dolby Digital
and 5.1ch speakers and selecting Dolby Digital, you can maximize
your interactive 3D sound experience.
■ ■ Audio Delay: Lets you correct timing mismatches between the audio track
and the video when you are watching the TV and listening to digital audio
output from the TV through an external device such as an AV receiver. When
you select Audio Delay, a slider appears. Use the left and right arrow buttons
to adjust the slider. Press ENTER E when done (0ms ~ 250ms).
Speaker Select
■ ■ Speaker Select (External Speaker / TV Speaker)
If you are listening to the sound track of a broadcast or movie through
an external receiver, you may hear a sound echo caused by the
difference in decoding speed between the TV’s speakers and the
speakers attached to your audio receiver. If this occurs, set the TV to
External Speaker.
✎ When you set Speaker Select to External Speaker, the TV’s
speakers are turned off. You will hear sound through the external speakers only. When you set Speaker Select to TV Speaker both the
TV’s speakers and the external speakers are on. You will hear sound
through both.
✎ When Speaker Select is set to External Speaker, the VOLUME and
MUTE buttons will not operate and the sound settings will be limited.
✎ If there is no video signal, both the TV’s speakers and the external
speakers will be mute.
Sound Reset
■ ■ Reset All: Resets all sound settings to the factory defaults.
Setup Menu
❑ Setting the Time
Time
✎ The current time will appear every time you press the INFO button.
■ ■ Clock: Setting the clock is for using various timer features of the TV.
✎ If you disconnect the power cord, you have to set the clock again.
Clock Mode: Set the current time manually or automatically.
Clock Set: Set the Month, Day, Year, Hour, Minute and am/pm.
✎ Available only when Clock Mode is set to Manual.
Time Zone: Select your time zone.
DST (Daylight Saving Time): Switches the DST (Daylight Saving Time)
function on or off.
✎ DST and Time Zone function is only available when the Clock Mode
is set to Auto.
■ ■ Sleep Timer t
Automatically shuts off the TV after a preset period of time. (30,
60, 90, 120, 150 and 180 minutes).
✎ To cancel the Sleep Timer, select Off.
Timer 1 / Timer 2 / Timer 3
Three different on / off timer settings can be made. You must set the clock
first.
■ ■ On Time / Off Time: Set the hour, minute, am/pm and Activate / Inactivate.
(To activate the timer with the setting you have chosen, set to Activate.)
■ ■ Volume: Set the desired volume level.
■ ■ Contents: When the On Time is activated, you can turn on a specific channel or play back contents such as photo or audio files.
- TV/USB: Select TV or USB. (Make sure that an USB device is
connected to your TV.)
- Antenna: Displays the current antenna source.
- Channel: Select the desired channel.
- Music/Photo: Select the folder containing MP3/JPEG files on the
USB device.
✎ The maximum displayed number of files, including sub folders, in one
folder of USB storage device is 2000.
✎ The media may not be playing smoothly when using the device lower
than USB 2.0.
■ ■ Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual
to set at you convenience. If you select Manual, you can set up the day you
want to activate the timer.
Changing the Input Source
Source List
Use to select TV or an external input source such as a DVD player / Blu-ray
player / cable box / STB satellite receiver.
1. Press the SOURCE button.
2. Select a desired external input source.
■ ■ TV / AV / Component / HDMI1/DVI / HDMI2
✎ You can only choose external devices that are connected to the TV. In the
Source List, connected inputs will be highlighted.
How to use Edit Name
Edit Name lets you associate a device name to an input source. To access
Edit Name, press the TOOLS button in Source List. The following
selections appear under Edit Name:
■ ■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game
/ Camcorder / PC / DVI PC / DVI / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source
selection easier.
✎ When connecting a PC to the HDMI IN 1(DVI) port with HDMI cable, you
should set the TV to PC mode under Edit Name.
✎ When connecting a PC to the HDMI IN 1(DVI) port with HDMI to DVI
cable, you should set the TV to DVI PC mode under Edit Name.
✎ When connecting an AV devices to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI mode under Edit Name.
Information
You can see detailed information about the connected external device.
❑ Other Features
Program Rating Lock
The Program Rating Lock feature automatically locks out programs
that are deemed inappropriate for children. The user must enter a PIN (personal identification number) before any of the Program Rating Lock
restrictions are set up or changed.
✎ Program Rating Lock is not available in HDMI or Component mode.
✎ The default PIN number of a new TV set is “0-0-0-0”.
■ ■ Program Rating Lock: You can block rated TV Programs.
■ ■ TV Parental Guidelines: You can block TV programs depending on their rating. This function allows you to control what your children are watching.
■ ■ MPAA Rating: You can block movies depending on their MPAA rating. The
Motion Picture Association of America(MPAA) has implemented a rating
system that provides parents or guardians with advanced information on
which films are appropriate for children.
■ ■ Canadian English: You can block TV programs depending on their
Anglophone Canadian.
■ ■ Canadian French: You can block TV programs depending on their French
Canadian rating.
■ ■ Downloadable U.S. Rating: Parental restriction information can be used
while watching DTV channels.
■ ■ Change PIN: The Change PIN screen will appear. Choose any 4 digits
for your PIN and enter it in Enter New PIN. Re-enter the same 4 digits in
Confirm New PIN. When the Change PIN screen disappears, press the
OK button. The TV has memorized your new PIN.
✎ If you forget the PIN, press the remote-control buttons in the
following sequence, which resets the pin to “0-0-0-0” : POWER
(off) → MUTE → 8 → 2 → 4 → POWER (on)
Language
Set the menu language.
✎ Choose between English, Español and Français.
Game Mode
When connecting to a game console such as PlayStation™ or Xbox™,
you can enjoy a more realistic gaming experience by selecting the
game menu.
✎ Precautions and limitations for game mode
x To disconnect the game console and connect another external
device, set Game Mode to Off in the setup menu.
x If you display the TV menu in Game Mode, the screen shakes slightly.
✎ Game Mode is not available when the input source is set to TV.
✎ After connecting the game console, set Game Mode to On.
Unfortunately, you may notice reduced picture quality.
Caption
(On-Screen Text Messages)
■ ■ Caption: You can switch the caption function on or off. If captions are not
available, they will not be displayed on the screen.
✎ The Caption feature does not work in Component or HDMI mode.
■ ■ Caption Mode: You can select the desired caption mode.
Default / CC1~CC4 / Text1~Text4: (analog channels only) The
Analog Caption function operates in either analog TV channel mode
or when a signal is supplied from an external device to the TV.
(Depending on the broadcasting signal, the Analog Caption function
may or may not work with digital channels.)
Default / Service1~Service6 / CC1~CC4 / Text1~Text4: (digital
channels only) The Digital Captions function works with digital
channels.
✎ Service1~6 may not be available in digital caption mode depending
on the broadcast.
■ ■ Digital Caption Options: (digital channels only)
Size: Options include Default, Small, Standard and Large. The
default is Standard.
Font Style: Options include Default and Styles 0 to 7. The default
is Style 0.
Foreground Color: Options include Default, White, Black, Red,
Green, Blue, Yellow, Magenta and Cyan.
You can change the color of the letter. The default is White.
Background Color: Options include Default, White, Black, Red,
Green, Blue, Yellow, Magenta and Cyan. You can change the
background color of the caption. The default is Black.
Foreground Opacity: This adjusts the opacity of text. Options
include Default, Transparent, Translucent, Solid and Flashing.
Background Opacity: This adjusts the opacity of the caption
background. Options include Default, Transparent, Translucent, Solid
and Flashing.
Return to Default: This option sets each Size, Font Style,
Foreground Color, Background Color, Foreground Opacity and Background Opacity to its default.
✎ Digital Caption Options are available only when Default and
Service1 ~ Service6 can be selected in Caption Mode.
✎ The Foreground and Background cannot be set to have the same
color.
Melody
Set so that a melody plays when the TV is turned on or off.
✎ The Melody does not play.
x When no sound is output from the TV because the MUTE button
has been pressed.
x When no sound is output from the TV because the volume has been
reduced to minimum with the VOL – button.
x When the TV is turned off by Sleep Timer function.
Auto Protection Time
■ ■ Auto Protection Time (Off / 10 min / 20 min / 40 min / 1 hour): If the
screen remains idle with a still image for a certain period of time defined
by the user, the screen saver is activated to prevent the formation of ghost
images on the screen.
Eco Solution
■ ■ Energy Saving (Off / Low / Medium / High / Picture Off) : This adjust the brightness of the TV in order to reduce power consumption. If you
select Picture Off, the screen is turned off, but the sound remains on.
Press any button except volume button to turn on the screen.
■ ■ Eco Sensor (Off / On) : To enhance your power savings, the picture
settings will automatically adapt to the light in the room. ✎ If you adjust Cell Light in the Picture menu, the Eco Sensor will
be set to Off.
Min Cell Light : When Eco Sensor is On, you can manually adjust
the minimum screen brightness.
✎ If Eco Sensor is On, the display brightness may change (become
slightly darker or brighter) depending on the surrounding light
intensity. You can control the screen’s minimum brightness with the
Min Cell Light function.
■ ■ No Signal Power Off (Off / 15 min. / 30 min. / 60 min.): Sets how quickly
the TV switches to standby mode, if no picture is being received.
✎ Disabled when the PC is in power saving mode.
■ ■ Auto Power Off (Off / On): The TV will be automatically turned off when
no user operation is received for 4 hours.
AUDIO OUT
R-AUDIO-L
VIDEO OUT
W R
R W R B R G
R B R G
ANT OUT
W Y R
R W R Y
AUDIO OUT
R-AUDIO-L
COMPONENT OUT
PR PB Y OPTICAL
HDMI OUT
HDMI OUT
DVI OUT
(5V 0.5A)
VCR Blu-ray player
Cable
or
Power Input
VHF/UHF Antenna
Audio Device
Using an Optical (Digital) Cable
AV Device (2)
Using an Audio/Video
AV Device (3)
Using a Component Cable (up to 1080p)
Media Play
Using a USB Drive
PC
Using a HDMI (to DVI) Cable
Digital Audio System
AV Device (1)
Using a HDMI Cable (up to
1080p)
PC
Blu-ray player / DVD /
cable box / sat box
Display Modes (HDMI/DVI Input)
Optimal resolution is 1920 x 1080@60Hz.
Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)
IBM 640 x 350 31,469 70,086 25,175 +/- 720 x 400 31,469 70,087 28,322 -/+
MAC 640 x 480 35,000 66,667 30,240 -/- 832 x 624 49,726 74,551 57,284 -/-
1152 x 870 68,681 75,062 100,000 -/-
VESA DMT
640 x 480 31,469 59,940 25,175 -/- 640 x 480 37,861 72,809 31,500 -/- 640 x 480 37,500 75,000 31,500 -/- 800 x 600 37,879 60,317 40,000 +/+ 800 x 600 48,077 72,188 50,000 +/+ 800 x 600 46,875 75,000 49,500 +/+
1024 x 768 48,363 60,004 65,000 -/- 1024 x 768 56,476 70,069 75,000 -/- 1024 x 768 60,023 75,029 78,750 +/+ 1152 x 864 67,500 75,000 108,000 +/+ 1280 x 720 45,000 60,000 74,250 +/+ 1280 x 800 49,702 59,810 83,500 -/+ 1280 x 1024 63,981 60,020 108,000 +/+
1280 x 1024 79,976 75,025 135,000 +/+ 1366 x 768 47,712 59,790 85,500 +/+ 1440 x 900 55,935 59,887 106,500 -/+ 1600 x 900RB 60,000 60,000 108,000 +/+ 1680 x 1050 65,290 59,954 146,250 -/+ 1920 x 1080 67,500 60,000 148,500 +/+
Installing batteries (Battery size: AAA)
✎ NOTE
x Use the remote control within 23 feet from TV.
x Bright light may affect the performance of the remote control. Avoid
use when nearby fluorescent lights or neon signs.
x The Color and shape may vary depending on the model.
Remote Control
✎ This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.
Press to select additional channels (digital) being broadcasted by the same station. For example,
to select channel ‘54-3’, press ‘54’, then press ‘-’ and ‘3’.
Returns to the previous channel.
Press to directly access to channels.
Turns the TV on and off.
Displays and selects the available video
sources.
Use these buttons in a specific feature.
P.SIZE : Lets you choose the picture size.
MTS : Press to choose stereo, mono or
Separate Audio Program (SAP broadcast).
CC : Controls the caption decoder.
Cuts off the sound temporarily.
Automatically shuts off the TV at a preset time.
Displays the channel list on the screen.
Displays information on the TV screen. Quickly select frequently used functions.
Selects the on-screen menu items and changes the
values seen on the menu.
Exit the menu. Returns to the previous menu.
Turns the remote control light on or off. When on,
the buttons become illuminated for a moment when
pressed. (Using the remote control with this button set
to On will reduce the battery usage time.)
Use these buttons according to the direction on screen.
Changes channels.
Displays the main on-screen menu.
Views the Media Play.
Adjusts the volume.
MEDIA.P SLEEP
Getting Started
Accessories
• Remote Control & Batteries (AAA x 2)
• Warranty Card / Safety Guide
• Owner’s Instructions
• Power Cord
• Cleaning Cloth
Input Cables (Sold Separately)
• RS232
• Audio
• HDMI
• HDMI-DVI • Component
• Composite (AV)
• Coaxial (RF)
✎ Check the cable before plug-in
Cable Ports
HDMI
USB
Optical
Do not plug cable upside down.
Be sure to check before plug-in.
TV Controller (Panel Key)
Power on Turns the TV on by pressing the controller in standby
mode.
Adjusting the volume Adjusts the volume by moving the controller from side to
side when the power is on.
Selecting a channel Selects a channel by moving the controller up and down
when the power is on.
Using the function menu
Press the controller when the power is on, then the
function menu screen appears. If you press it again, the
function menu screen disappears.
Selecting the Media Play
Selects the MEDIA.P by moving the controller in the
function menu screen. The Media Play main screen
appears.
Selecting the MENU (m) Selects the MENU(m) by moving the controller in the function menu screen. The OSD(On Screen Display) of
your TV’s feature appears.
Selecting the Source
List (s) Selects the Source List (s) by moving the controller in the function menu screen. The Source List screen
appears.
Power Off (P) Selects the Power Off (P) to turn the TV off by moving the controller in the function menu screen.
✎ Exits the menu when pressing the controller more than 1 second.
✎ When selecting the function by moving the controller to the up/down/ left/right directions, be sure not to press the controller. If you press it
first, you cannot operate it to move the up/down/left/right directions.
Plug & Play (Initial Setup)
When you turn the TV on for the first time, a sequence of on-screen
prompts will assist in configuring basic settings. Press the POWER
button. Plug & Play is available only when the Input source is set to TV.
✎ Connecting the power cord and antenna. (refer to ‘Connections’)
Selecting a language
Select Language of the OSD.
Language
U Move E Enter
Plug & Play


 
English
Español
Français
Select the desired OSD (On Screen
Display) language.

Selecting a Home Use mode
Select ‘Home Use’ when installing this TV in your home.
L Move E Enter
Plug & Play
Home Use Store Demo
 
 
• Select the Home Use mode.
Store Demo mode is for retail
environments.
• When pressing TV controller, the
function menu screen appears.
Select the MENU(m) and press it more than 5 seconds using the
controller. The Store Demo mode
is set. Cancel the Store Demo by
selecting Source List(s) and
pressing it more than 5 seconds. 
Selecting an antenna
Select the Antenna source to memorize.
Air Start
Cable Start
Auto Start
U Move E Enter m Skip
Plug & Play


 
In Cable mode, you can select the
correct signal source among STD,
HRC, and IRC by pressing the ▲,
▼, ◄ or ► button.

Setting the Clock Mode
Set the Clock Mode.
Clock Mode : Auto
Plug & Play
E Enter m Skip
 
 
Set the Clock Mode automatically or manually.
• If you select the Auto, set the
DST(Daylight Saving Time).
• On the DST screen, press
ENTER E, then select whether to
turn DST (Daylight Savings Time)
on or off. Select the time zone
where you live.

Viewing the HD Connection Guide
The connection method for the best HD screen quality is displayed.

Enjoy your TV.
Press the ENTER E button.
Remote control sensor
TV Controller
Function menu
MEDIA.P
m R s
P
Return
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and
specifications may be changed without notice.
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal
temperature of the product.
✎ When using a stand or wall-mount, use parts provided by Samsung Electronics only. x If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling. ✎ The appearance may differ depending on the product. ✎ Be careful when you contact the TV because some parts can be somewhat hot.
Installation with a stand. Installation with a wall-mount.
4inches
4inches
4inches
4inches
4inches 4inches
4inches
Important User Information
• Screen Image retention
Do not display a still image (such as that from a video game) on the plasma display panel for more than a few minutes. Still images can cause screen image retention (burn in). To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
• Heat on the top of the Plasma TV The top side of the TV may become hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the TV. This is normal and does not indicate any defect or operational failure of unit.
However, children should be prevented from touching the upper part of the TV.
• The TV is making a ‘cracking’ noise.
• Cell Defects
The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
• Avoid operating the TV at temperatures below 41°F (5°C)
• A still image displayed too long may cause permanent damage to the PDP Panel.
Watching the Plasma TV in 4:3 format for a long period of time may leave
traces of the borders on the left, right, top, or bottom of the screen. Playing a DVD or a game console may have a similar effect. Damage caused by the above effect is not covered by the warranty.
• After-images on the Screen.
The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However, there may be
a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
• Warranty
Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.
• Caution
The glass screen of your PDP TV can break if you accidently drop the TV. Handle the TV with care. When moving the TV, always have two or more people pick it up and carry it as a safety precaution. Do not lay the TV flat on its face or back.
(Your) Samsung Plasma TV is a high quality television that has been carefully packaged to protect the integrity of its glass panel and component parts during shipment. It is, nonetheless, a fragile piece of electronics that requires careful handling. Refrain from putting undue stress on any part of the packaging when shipping or unpacking the TV. Use care when installing the TV. Avoid placing the TV in a location where it may be struck, exposed to sharp impacts, or fall. Panel breakage caused by a fall or impact strike is not covered under the manufacturer’s warranty.
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung
products, please contact the SAMSUNG customer care center.
Country Customer Care Center  Web Site
MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com
ARGENTINA 0800-333-3733 www.samsung.com
BRAZIL 0800-124-421
4004-0000 www.samsung.com
CHILE 800-SAMSUNG(726-7864) www.samsung.com
COLOMBIA 01-8000112112 www.samsung.com
COSTA RICA 0-800-507-7267 www.samsung.com
DOMINICA 1-800-751-2676 www.samsung.com
ECUADOR 1-800-10-7267 www.samsung.com
EL SALVADOR 800-6225 www.samsung.com
GUATEMALA 1-800-299-0013 www.samsung.com
HONDURAS 800-7919267 www.samsung.com
JAMAICA 1-800-234-7267 www.samsung.com
NICARAGUA 00-1800-5077267 www.samsung.com
PANAMA 800-7267 www.samsung.com
PERU 0-800-777-08 www.samsung.com
PUERTO RICO 1-800-682-3180 www.samsung.com
TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com
VENEZUELA 0-800-100-5303 www.samsung.com
(MEXICO Only)
IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO S.A. de C.V.
AV. PRESIDENTE MASARIK #111 INT701
COL. CHAPULTEPEC MORALES C.P.11570
DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL
Tel: 01-55-5747-5100 / 01-800-726-7864
BN68-04216D
BN68-04216D-01
Plasma TV
user manual
© 2012 Samsung Electronics Co., Ltd. All rights reserved.
- 2 - - 1 -
- 6 - - 5 -
- 3 -
- 7 -
- 4 -
- 8 -
[PE530-ZX]BN68-04216D-ENG.indd 1 2012-02-27 �� 9:02:47
