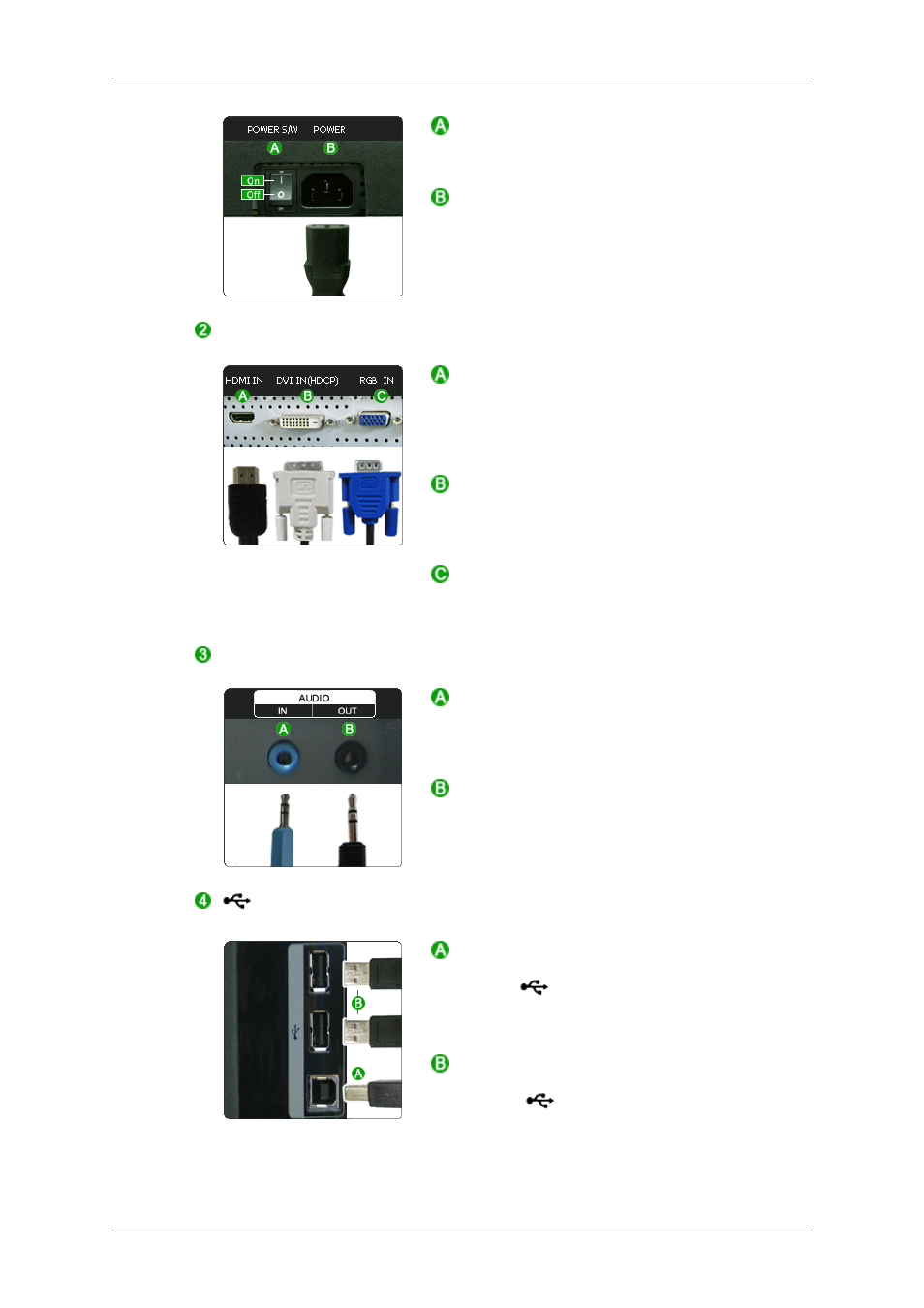

POWER S/W
Switch the product on and off.
POWER
Connect the power cord for your monitor to
the POWER port on the back of the product.
HDMI IN / DVI IN(HDCP) /
RGB IN
HDMI IN
Connect the HDMI IN terminal at the back of
your product to the HDMI terminal of your
digital output device using a HDMI cable.
DVI IN(HDCP)
Connect the DVI cable to the DVI IN
(HDCP) port on the back of your product.
RGB IN
Connect the RGB IN terminal at the back of
your product to your computer.
AUDIO IN / AUDIO OUT
AUDIO IN
Connect the audio cable for your product to
the audio port on the back of your computer.
AUDIO OUT
Headphone output terminal
USB connection ter-
minal (Option)
UP (USB upstream port)
Connect the UP port of the product and
the USB port of the computer with the USB
cable.
DOWN (USB downstream port)
Connect the DOWN port of the USB
product and a USB device with the USB ca-
ble.
