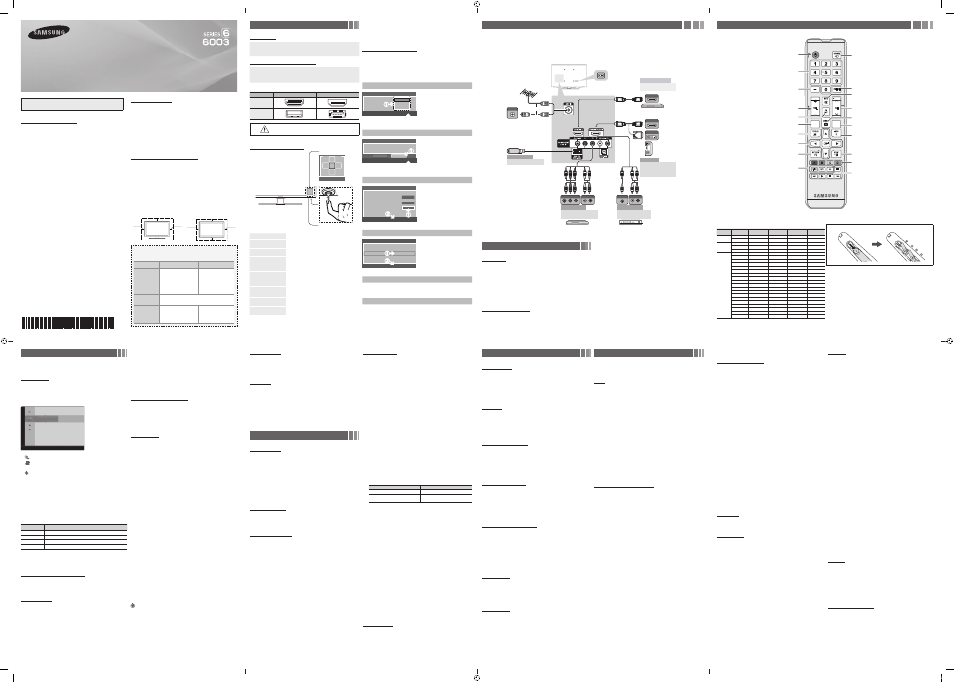

Connections

For better picture and audio quality, connect to a digital device using an HDMI cable.

The picture may not display normally (if at all) or the audio may not work if an external device

that uses an older version of HDMI mode is connected to the TV. If such a problem occurs,

ask the manufacturer of the external device about the HDMI version and, if out of date,

request an upgrade.

Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a

connection error may occur.

PC(D-Sub) and PC/DVI AUDIO IN input are not supported.

For HDMI/DVI cable connection, you must use the

HDMI IN 1(DVI)

jack.

Connecting through the HDMI cable may not be supported depending on the PC.

If an HDMI to DVI cable is connected to the

HDMI IN 1(DVI)

port, the audio does not work.

EX-LINK: Connector for service only.

Remote Control

✎

This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.

Figures and illustrations in this User Manual are provided for reference

only and may differ from actual product appearance. Product design and

specifications may be changed without notice.

Important Warranty Information Regarding

Television Format Viewing

✎

See the warranty card for more information on warranty terms.

Wide screen format LED Displays (16:9, the aspect ratio of the screen width to
height) are primarily designed to view wide screen format full-motion video. The
images displayed on them should primarily be in the wide screen 16:9 ratio format,
or expanded to fill the screen if your model offers this feature and the images are
constantly moving. Displaying stationary graphics and images on screen, such as the
dark sidebars on non- expanded standard format television video and programming,
should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports,
video game displays, station logos, web sites or computer graphics and patterns,
should be limited as described above for all televisions. Displaying stationary images
that exceed the above guidelines can cause uneven aging of LED Displays that leave
subtle, but permanent burned-in ghost images in the LED picture. To avoid this, vary
the programming and images, and primarily display full screen moving images, not
stationary patterns or dark bars. On LED models that offer picture sizing features,
use these controls to view different formats as a full screen picture. Be careful in the
selection and duration of television formats you use for viewing. Uneven LED aging as
a result of format selection and use, as well as burned-in images, are not covered by
your Samsung limited warranty.
• SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original
Limited Warranty supplied with Samsung Electronics (SAMSUNG) products, and the
requirements, conditions, exclusions and limitations contained herein, SAMSUNG
will additionally provide Warranty Repair Service in the United States on SAMSUNG
products purchased in Canada, and in Canada on SAMSUNG products purchased
in the United States, for the warranty period originally specified, and to the Original
Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized
Service Center. Along with this Statement, the Original Limited Warranty Statement
and a dated Bill of Sale as Proof of Purchase must be presented to the Service
Center. Transportation to and from the Service Center is the responsibility of the
purchaser. Conditions covered are limited only to manufacturing defects in material or
workmanship, and only those encountered in normal use of the product. Excluded, but
not limited to, are any originally specified provisions for, in-home or on-site services,
minimum or maximum repair times, exchanges or replacements, accessories, options,
upgrades, or consumables.
For the location of a SAMSUNG Authorized Service Center, please call toll-free:
–– In the United States : 1-800-SAMSUNG (1-800-726-7864)
–– In Canada : 1-800-SAMSUNG

Still image warning

Avoid displaying still images (such as jpeg picture files) or still image elements (such
as TV channel logos, panorama or 4:3 image format, stock or news bars at screen
bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of
LED screen, which will affect image quality. To reduce risk of this effect, please follow
below recommendations:
• Avoid displaying the same TV channel for long periods.
• Always try to display any image on full screen, use TV set picture format menu for

best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired

picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen

burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to
ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in
the internal temperature of the product.

✎

When using a stand or wall-mount, use parts provided by Samsung
Electronics only.

If you use parts provided by another manufacturer, it may result in a
problem with the product or an injury due to the product falling.

✎

The appearance may differ depending on the product.

✎

Be careful when you contact the TV because some parts can be somewhat
hot.

Installation with a stand.

Installation with a wall-mount.

4inches

Channel Menu

❑

Seeing Channels

Channel List

Add, delete or set Favorite channels and use the program guide for

digital broadcasts. Select a channel in the All Channels, Added

Channels, Favorite or Programmed screen by pressing the

▲

▼ buttons, and pressing the

ENTER

E button. Then you can

watch the selected channel.

Added Channels

Air

6-1

♥ TV #6

7-1

♥ TV #7

Air

9-1

♥ TV #9

Air

10-1

♥ TV #10

11-1

♥ TV #11

Air

Zoom

Select T Tools ► Next Program

■

All Channels: Shows all currently available channels.

■

Added Channels: Shows all added channels.

■

Favorite: Shows all favorite channels.

■

Programmed: Shows all currently reserved programs.

✎

Using the remote control buttons with the Channel List

Green (Zoom): Enlarges or shrinks a channel number.

Yellow (Select): Selects multiple channel lists. Select desired

channels and press the Yellow button to set all the selected

channels at the same time. The c mark appears to the left of

the selected channels.

T (Tools): Displays the Channel List option menu. (The

Options menus may differ depending on the situation.)

Channel Status Display icons

Icons

Operations

A channel selected.

A channel set as a Favorite.

)

A reserved program.

(

A program currently being broadcast.

❑

Memorizing channels

Antenna (Air / Cable)

Before your television can begin memorizing the available channels,

you must specify the type of signal source that is connected to the

TV (i.e. an Air or a Cable system).

Auto Program

✎

When selecting the Cable TV system: Selects the cable

system. STD, HRC and IRC identify various types of cable

TV systems. Contact your local cable company to identify the

type of cable system that exists in your particular area. At this

point, the signal source has been selected.

✎

After all the available channels are stored, it starts to

remove scrambled channels. The Auto program menu then

reappears.

✎

Press the

ENTER

E button to stop the channel store during

Auto Program.

How to Stop Auto Programming

1. Press the

ENTER

E button.

2. A message will ask Stop Auto Program? Select Yes by

pressing the

◄ or ► button.

3. Press the

ENTER

E button.

❑

Other Features

Clear Scrambled Channel

This function filters out scrambled channels after Auto Program is

completed. This process may take up to 20~30 minutes.

✎

Press the

ENTER

E button to stop the Clear Scrambled

Channel.

✎

This function is only available in Cable mode.

Channel List
Channel List Option Menu

Set each channel using the Channel List menu options. Option

menu items may differ depending on the channel status.

■

Add / Delete: Delete or add a channel to display the channels

you want.

✎

All deleted channels will be shown on the All Channels

menu.

✎

A gray-colored channel indicates the channel has been

deleted.

✎

The Add menu only appears for deleted channels.

✎

Delete a channel from the Added Channels or Favorite

menu in the same manner.

■

Add to Favorite / Delete from Favorite

t: Set channels

you watch frequently as Favorites.

■

Timer Viewing: You can set a desired channel to be displayed

automatically at the set time; even when you are watching

another channel. Set the current time first to use this function.

✎

Only memorized channels can be reserved.

✎

Reserved programs will be displayed in the Programmed

menu.

✎

When a digital channel is selected, press the

► (Next

Program) button to view the digital program. If you select

the

ENTER

E(Schedule) button on the next program, you

can set Timer Viewing directly.

■

Channel Name Edit (analog channels only): Assign your own

channel name.

■

Select All: Select all the channels in the channel list.

■

Deselect All: Deselect all the selected channels.

✎

You can only select Deselect All when one or more

channels are selected.

■

Auto Program: Scans for a channel automatically and stores in

the TV

Programmed

(in Channel List)
You can view, modify or delete a show you have reserved to watch.

■

Change Info: Change a show you have reserved to watch.

■

Cancel Schedules: Cancel a show you have reserved to watch.

■

Information: Display a show you have reserved to watch. (You

can also change the reservation Information.)

■

Select All / Deselect All: You can select or deselect all channels

in the channel list.

Sound Menu

Mode

■

Standard: Selects the normal sound mode.

■

Music: Emphasizes music over voices.

■

Movie: Provides the best sound for movies.

■

Clear Voice: Emphasizes voices over other sounds.

■

Amplify: Increase the intensity of high-frequency sounds to allow a

better listening experience for the hearing impaired.

Equalizer

(standard sound mode only)

■

Balance L/R: Adjusts the balance between the right and left speaker.

■

100Hz / 300Hz / 1KHz / 3KHz / 10KHz (Bandwidth Adjustment):

Adjusts the level of specific bandwidth frequencies.

■

Reset: Resets the equalizer to its default settings.

SRS TruSurround HD

(standard sound mode only)
SRS TruSurround HD is a patented SRS technology that solves the

problem of playing 5.1 multichannel content over two speakers.

TruSurround delivers a compelling, virtual surround sound experience

through any two-speaker playback system, including internal

television speakers. It is fully compatible with all multichannel formats.

Preferred Language

(digital channels only)
Digital-TV broadcasts are capable of simultaneous transmission of

many audio tracks (for example, simultaneous translations of the

program into foreign languages).

✎

You can only select a language from among the ones being

broadcasted.

Multi-Track Sound (MTS)

(analog channels only)

■

Mono: Choose for channels that are broadcasting in mono or if

you are having difficulty receiving a stereo signal.

■

Stereo: Choose for channels that are broadcasting in stereo.

■

SAP: Choose to listen to the Separate Audio Program, which is

usually a foreign-language translation.

✎

Depending on the program being broadcast, you can listen to

Mono, Stereo or SAP.

Auto Volume

Because each broadcasting station has its own signal conditions,

the volume may fluctuate each time channel is changed. This feature

lets you automatically adjust the volume of the desired channel by

lowering the sound output when the modulation signal is high or by

raising the sound output when the modulation signal is low.

Sound Reset

■

Reset All: Resets all sound settings to the factory defaults.

Setup Menu

❑

Setting the Time

Time

✎

The current time will appear every time you press the

INFO

button.

■

Clock: Setting the clock is for using various timer features of the

TV.

✎

If you disconnect the power cord, you have to set the clock

again.

Clock Mode: Set the current time manually or automatically.
Clock Set: Set the Month, Day, Year, Hour, Minute and am/pm.

✎

Available only when Clock Mode is set to Manual.

Time Zone: Select your time zone.
DST (Daylight Saving Time): Switches the DST (Daylight Saving

Time) function on or off.

✎

DST and Time Zone function is only available when the

Clock Mode is set to Auto.

■

Sleep Timer

Automatically shuts off the TV after a preset period of time. (30,
60, 90, 120, 150 and 180 minutes).

✎

To cancel the Sleep Timer, select Off.

Timer 1 / Timer 2 / Timer 3

Three different on / off timer settings can be made. You must set the

clock first.

■

On Time / Off Time: Set the hour, minute, am/pm and Activate /

Inactivate. (To activate the timer with the setting you have chosen,

set to Activate.)

■

Volume: Set the desired volume level.

■

Contents: When the On Time is activated, you can turn on a

specific channel or play back contents such as photo or audio files.
- TV/USB: Select TV or USB. (Make sure that an USB device is

connected to your TV.)

- Antenna: Displays the current antenna source.
- Channel: Select the desired channel.
- Music/Photo: Select the folder containing MP3/JPEG files on the

USB device.

✎

The maximum displayed number of files, including sub

folders, in one folder of USB storage device is 2000.

✎

The media may not be playing smoothly when using the

device lower than USB 2.0.

■

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or

Manual to set at you convenience. If you select Manual, you can

set up the day you want to activate the timer.

Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please

contact the SAMSUNG customer care center.

Country

CANADA

U.S.A

Address

Samsung Electronics
Canada Inc.,
Customer Service
55 Standish Court
Mississauga
Ontario L5R 4B2 Canada

Samsung Electronics
America, Inc.
85 Challenger Road
Ridgefield Park, NJ 07660

Customer Care

Center 

1-800-SAMSUNG (726-7864)

Web Site

www.samsung.com/ca
(English)
www.samsung.com/ca_fr
(French)

www.samsung.com/us

LED TV

user manual

Getting Started

Accessories

• Remote Control (AA59-00666A) &

Batteries (AAA x 2)

• Warranty Card / Safety Guide

• Owner’s Instructions
• Power Cord
• Cable manager

Input Cables (Sold Separately)

• RS232 (AA39-00311A)
• Audio
• HDMI
• HDMI-DVI

• Component
• Composite (AV)
• Coaxial (RF)

✎

Check the cable before plug-in

Cable

Ports

HDMI

USB

Do not plug cable upside down.
Be sure to check before plug-in.

TV Controller (Panel Key)

Power on

Turns the TV on by pressing the controller in standby mode.

Adjusting the volume

Adjusts the volume by moving the controller from side to side

when the power is on.

Selecting a channel

Selects a channel by moving the controller up and down when

the power is on.

Using the function menu

Press the controller when the power is on, then the function

menu screen appears. If you press it again, the function menu

screen disappears.

Selecting the Media Play

Selects the MEDIA.P by moving the controller in the
function menu screen. The Media Play main screen
appears.

Selecting the MENU (m)

Selects the MENU(m) by moving the controller in the function

menu screen. The OSD(On Screen Display) of your TV’s feature

appears.

Selecting the Source
List (s)

Selects the Source List(s) by moving the controller in the

function menu screen. The Source List screen appears.

Power Off (P)

Selects the Power Off (P) to turn the TV off by moving the

controller in the function menu screen.

✎

Exits the menu when pressing the controller more than 1 second.

✎

When selecting the function by moving the controller to the up/down/left/
right directions, be sure not to press the controller. If you press it first, you
cannot operate it to move the up/down/left/right directions.

Plug & Play (Initial Setup)

When you turn the TV on for the first time, a sequence of on-screen

prompts will assist in configuring basic settings. Press the

POWER

button. Plug & Play is available only when the Input source is set to

TV.

✎

Connecting the power cord and antenna. (refer to

‘Connections’)

Selecting a language

Select Language of the OSD.

Language

U Move

E Enter

Plug & Play









English
Español
Français

Select the desired OSD (On Screen

Display) language.



Selecting a Home Use mode

Select ‘Home Use’ when installing this TV in your home.

L Move

E Enter

Plug & Play

Home Use

Store Demo









• Select the Home Use mode. Store

Demo mode is for retail environments.

• When pressing TV controller, the

function menu screen appears. Select

the MENU(m) and press it more than 5

seconds using the controller. The Store

Demo mode is set. Cancel the Store

Demo by selecting Source List(s)

and pressing it more than 5 seconds.



Selecting an antenna

Select the Antenna source to memorize.

Air

Start

Cable

Start

Auto

Start

U Move

E Enter

m Skip

Plug & Play









In Cable mode, you can select the correct

signal source among STD, HRC, and IRC

by pressing the

▲, ▼, ◄ or ► button.



Setting the Clock Mode

Set the Clock Mode.

Clock Mode

: Auto

Plug & Play

Enter

m Skip









Set the Clock Mode automatically or

manually.
• If you select the Auto, set the

DST(Daylight Saving Time).

• On the DST screen, press

ENTER

then select whether to turn DST

(Daylight Savings Time) on or off. Select

the time zone where you live.



Viewing the HD Connection Guide

The connection method for the best HD screen quality is displayed.



Enjoy your TV.

Press the

ENTER

E button.

Changing the Input Source

Source List

Use to select TV or an external input source such as a DVD player /

Blu-ray player / cable box / STB satellite receiver.
1. Press the

SOURCE

button.

2. Select a desired external input source.

■

TV / AV / Component / HDMI1/DVI / HDMI2

✎

You can only choose external devices that are connected to the

TV. In the Source List, connected inputs will be highlighted.

How to use Edit Name

Edit Name lets you associate a device name to an input source. To

access Edit Name, press the

TOOLS

button in Source List. The

following selections appear under Edit Name:

■

VCR / DVD / Cable STB / Satellite STB / PVR STB / AV

Receiver / Game / Camcorder / PC / DVI PC / DVI / TV / IPTV

/ Blu-ray / HD DVD / DMA: Name the device connected to the

input jacks to make your input source selection easier.

✎

When connecting a PC to the

HDMI IN 1(DVI)

port with HDMI

cable, you should set the TV to PC mode under Edit Name.

✎

When connecting a PC to the

HDMI IN 1(DVI)

port with HDMI

to DVI cable, you should set the TV to DVI PC mode under Edit

Name.

✎

When connecting an AV devices to the

HDMI IN 1(DVI)

port

with HDMI to DVI cable, you should set the TV to DVI

mode

under Edit Name.

Information

You can see detailed information about the connected external

device.

❑

Other Features

Program Rating Lock

The Program Rating Lock feature automatically locks out

programs that are deemed inappropriate for children. The user

must enter a PIN (personal identification number) before any of the

Program Rating Lock restrictions are set up or changed.

✎

Program Rating Lock is not available in HDMI or

Component mode.

✎

The default PIN number of a new TV set is “0-0-0-0”.

■

Program Rating Lock: You can block rated TV Programs.

■

TV Parental Guidelines: You can block TV programs

depending on their rating. This function allows you to control

what your children are watching.

■

MPAA Rating: You can block movies depending on their MPAA

rating. The Motion Picture Association of America(MPAA) has

implemented a rating system that provides parents or guardians

with advanced information on which films are appropriate for

children.

■

Canadian English: You can block TV programs depending on

their Anglophone Canadian.

■

Canadian French: You can block TV programs depending on

their French Canadian rating.

■

Downloadable U.S. Rating: Parental restriction information can

be used while watching DTV channels.

■

Change PIN: The Change PIN screen will appear. Choose any

4 digits for your PIN and enter it in Enter New PIN. Re-enter

the same 4 digits in Confirm New PIN. When the Change

PIN screen disappears, press the

button. The TV has

memorized your new PIN.

✎

If you forget the PIN, press the remote-control buttons in

the following sequence, which resets the pin to “0-0-0-0” :

POWER

(off)

→

MUTE

→ 8 → 2 → 4 →

POWER

(on)

Language

Set the menu language.

✎

Choose between English, Español and Français.

Game Mode

When connecting to a game console such as PlayStation™ or

Xbox™, you can enjoy a more realistic gaming experience by

selecting the game menu.

✎

Precautions and limitations for game mode

To disconnect the game console and connect another external

device, set Game Mode to Off in the setup menu.

If you display the TV menu in Game Mode, the screen shakes

slightly.

✎

Game Mode is not available when the input source is set

to TV.

✎

After connecting the game console, set Game Mode to On.

Unfortunately, you may notice reduced picture quality.

Caption

(On-Screen Text Messages)

■

Caption: You can switch the caption function on or off. If

captions are not available, they will not be displayed on the

screen.

✎

The Caption feature does not work in Component or

HDMI mode.

■

Caption Mode: You can select the desired caption mode.
Default / CC1~CC4 / Text1~Text4: (analog channels only) The

Analog Caption function operates in either analog TV channel

mode or when a signal is supplied from an external device to

the TV. (Depending on the broadcasting signal, the Analog

Caption function may or may not work with digital channels.)
Default / Service1~Service6 / CC1~CC4 / Text1~Text4:

(digital channels only) The Digital Captions function works with

digital channels.

✎

Service1~6 may not be available in digital caption mode

depending on the broadcast.

■

Digital Caption Options: (digital channels only)
Size: Options include Default, Small, Standard and Large. The

default is Standard.
Font Style: Options include Default and Styles 0 to 7. The

default is Style 0.
Foreground Color: Options include Default, White, Black, Red,

Green, Blue, Yellow, Magenta and Cyan.

You can change the color of the letter. The default is White.
Background Color: Options include Default, White, Black, Red,

Green, Blue, Yellow, Magenta and Cyan. You can change the

background color of the caption. The default is Black.
Foreground Opacity: This adjusts the opacity of text. Options

include Default, Transparent, Translucent, Solid and Flashing.
Background Opacity: This adjusts the opacity of the caption

background. Options include Default, Transparent, Translucent,

Solid and Flashing.
Return to Default: This option sets each Size, Font Style,

Foreground Color, Background Color, Foreground Opacity and

Background Opacity to its default.

✎

Digital Caption Options are available only when Default

and Service1 ~ Service6 can be selected in Caption

Mode.

✎

The Foreground and Background cannot be set to have

the same color.

Melody

Set so that a melody plays when the TV is turned on or off.

✎

The Melody does not play.

When no sound is output from the TV because the

MUTE

button has been pressed.

When no sound is output from the TV because the volume has

been reduced to minimum with the

VOL –

button.

When the TV is turned off by Sleep Timer function.

Auto Protection Time

■

Auto Protection Time (Off / 2 hours / 4 hours / 8 hours / 10

hours): If the screen remains idle with a still image for a certain

period of time defined by the user, the screen saver is activated

to prevent the formation of ghost images on the screen.

Press to select additional channels (digital) being

broadcasted by the same station. For example,

to select channel ‘54-3’, press ‘54’, then press

‘-’ and ‘3’.

Returns to the previous channel.

Press to directly access to channels.

Turns the TV on and off.

Use these buttons in a specific feature.

P.SIZE

: Lets you choose the picture size.

MTS

Press to choose stereo, mono or Separate Audio

Program (SAP broadcast).

: Controls the caption decoder.

Cuts off the sound temporarily.

Automatically shuts off the TV at a preset
time.

Displays the channel list on the screen.

Displays information on the TV screen.

Quickly select frequently used functions.

Selects the on-screen menu items and changes the

values seen on the menu.

Exit the menu.

Returns to the previous menu.

Displays and selects the available video

sources.

Use these buttons according to the

direction on screen.

Changes channels.

Displays the main on-screen menu.

Views the Media Play.

Adjusts the volume.

MEDIA.P

SLEEP

HDMI OUT

AUDIO OUT

L-AUDIO-R

COMPONENT OUT

DVI OUT

VIDEO OUT

ANT OUT

AUDIO OUT

L-AUDIO-R

VCR

Blu-ray player

Cable

Power Input

TV Rear Panel

VHF/UHF Antenna

AV Device (3)
Using Audio/Video

Cables

AV Device (2)
Using a Component

Cable (up to 1080p)

Media Play

Using a USB Drive

Using an HDMI Cable or

an HDMI to DVI Cable.

Use the PC speakers

for audio.

AV Device (1)

Using an HDMI Cable

(up to 1080p)

Blu-ray player / DVD / cable box

/ sat box

- 2 -

- 1 -

- 6 -

- 5 -

- 3 -

- 7 -

- 4 -

- 8 -

BN68-04674B

BN68-04674B-02

Display Modes (HDMI/DVI Input)

Optimal resolution is 1920 x 1080@60Hz.

Mode

Resolution

Horizontal

Frequency (KHz)

Vertical Frequency

(Hz)

Pixel Clock

Frequency (MHz)

Sync Polarity

(H / V)

IBM

640 x 350

31.469

70.086

25.175

+/-

720 x 400

31.469

70.087

28.322

-/+

MAC

640 x 480

35.000

66.667

30.240

-/-

832 x 624

49.726

74.551

57.284

-/-

1152 x 870

68.681

75.062

100.000

-/-

VESA DMT

640 x 480

31.469

59.940

25.175

-/-

640 x 480

37.861

72.809

31.500

-/-

640 x 480

37.500

75.000

31.500

-/-

800 x 600

37.879

60.317

40.000

+/+

800 x 600

48.077

72.188

50.000

+/+

800 x 600

46.875

75.000

49.500

+/+

1024 x 768

48.363

60.004

65.000

-/-

1024 x 768

56.476

70.069

75.000

-/-

1024 x 768

60.023

75.029

78.750

+/+

1152 x 864

67.500

75.000

108.000

+/+

1280 x 720

45.000

60.000

74.250

+/+

1280 x 800

49.702

59.810

83.500

-/+

1280 x 1024

63.981

60.020

108.000

+/+

1280 x 1024

79.976

75.025

135.000

+/+

1366 x 768

47.712

59.790

85.500

+/+

1440 x 900

55.935

59.887

106.500

-/+

1600 x 900RB

60.000

108.000

+/+

1680 x 1050

65.290

59.954

146.250

-/+

1920 x 1080

67.500

60.000

148.500

+/+

Installing batteries (Battery size: AAA)

✎

NOTE

Use the remote control within 23 feet from TV.

Bright light may affect the performance of the remote control.

Avoid use when nearby fluorescent lights or neon signs.

The Color and shape may vary depending on the model.

Channel Mode

Change the channel mode directly between Added Channels and

Favorite Channels.

✎

The Favorite Channels is enabled only when you set Add to

Favorite.

Fine Tune

(analog channels only)
If the reception is clear, you do not have to fine tune the channel, as

this is done automatically during the search and store operation. If the

signal is weak or distorted, fine tune the channel manually.

✎

Fine tuned channels that have been saved are marked with an

asterisk “*” on the right-hand side of the channel number in the

channel banner.

✎

To reset the fine-tuning, select Reset.

Picture Menu

Mode

Select your preferred picture type.

✎

When connecting a PC, you can only select Entertain and

Standard.

■

Dynamic: Suitable for a bright room.

■

Standard: Suitable for a normal environment.

■

Movie: Suitable for watching movies in a dark room.

■

Entertain: Suitable for watching movies and games.

✎

Only available when connecting a PC.

Backlight / Contrast / Brightness / Sharpness /

Color / Tint (G/R)

Your television has several setting options for picture quality control.

✎

When connecting a PC, you can only make changes to

Backlight, Contrast, Brightness and Sharpness

Advanced Settings

(available in Standard / Movie mode)
Compared to previous models, new Samsung TVs have a more

precise picture.

✎

When connecting a PC, you can only make changes to Gamma

and White Balance.

■

Color Space (Auto / Native): Adjusts the range of colors available

to create the image.

■

White Balance: Adjusts the color temperature for a more natural

picture.
R-Offset / G-Offset / B-Offset: Adjusts each color’s (red, green,

blue) darkness.
R-Gain / G-Gain / B-Gain: Adjusts each color’s (red, green, blue)

brightness.
Reset: Resets the White Balance to it’s default settings.

■

Gamma: Adjusts the primary color intensity.

■

Dynamic Contrast (Off / Low / Medium / High): Adjusts the

screen contrast.

■

Black Tone (Off / Dark / Darker / Darkest): Select the black level

to adjust the screen depth.

■

Flesh Tone: Emphasize pink “flesh tone”.

■

Motion Lighting (Off / On): Reduce power consumption by

brightness control adapted motion.

✎

Available in Standard mode only.

Picture Options

✎

When connecting a PC, you can only make changes to the

Color Tone, Size and HDMI Black Level.

■

Color Tone (Cool / Standard / Warm1 / Warm2)

✎

Warm1 or Warm2 will be deactivated when the picture mode

is Dynamic.

■

Size: Your cable box/satellite receiver may have its own set of

screen sizes as well. However, we highly recommend you use 16:9

mode most of the time.
16:9: Sets the picture to 16:9 wide mode.
Zoom1: Use for moderate magnification.
Zoom2: Use for a stronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture to fit the entire

screen.
4:3: Sets the picture to basic (4:3) mode.

✎

Do not watch in 4:3 format for a long time. Traces of borders

displayed on the left, right and center of the screen may

cause image retention (screen burn) which are not covered

by the warranty.

Screen Fit (DTV): Displays the full image without any cut-off when

HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p)

signals are inputted.

✎

HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p

(1280x720)

✎

Settings can be adjusted and stored for each external device

you have connected to an input on the TV.

✎

Picture Sizes available by Input Source:

Input Source

Picture Size

ATV, AV, Component (480i, 480p)

16:9, Zoom1, Zoom2, 4:3

DTV(1080i, 1080p), Component (1080i,

1080p), HDMI (720p, 1080i, 1080p)

16:9, Wide Fit, 4:3, Screen Fit

■

Digital Noise Filter (Off / Low / Medium / High / Auto): If the

broadcast signal received by your TV is weak, you can activate the

Digital Noise Filter feature to reduce any static and ghosting that

may appear on the screen.

✎

When the signal is weak, try other options until the best

picture is displayed.

■

HDMI Black Level (Normal / Low): Selects the black level on the

screen to adjust the screen depth.

✎

Available only in HDMI mode (RGB signals).

■

Film Mode (Off / Auto): Sets the TV to automatically sense and

process film signals from all sources and adjusts the picture for

optimum quality.

✎

Available in ATV, DTV(interlace), AV, COMPONENT (480i /

1080i) and HDMI (480i / 1080i).

■

Auto Motion Plus (Off / Clear / Standard / Smooth / Custom /

Demo): Enhances motion in fast moving scenes.

✎

The info screen on your TV displays the resolution and

frequency of the incoming video signal (60Hz). This displayed

frequency is not what the TV is displaying by using the Auto

Motion Plus function.

■

LED Motion Plus (Off / On): Removes drag from fast scenes with

a lot of movement to provide a clear picture.

Picture Reset

Resets your current picture mode to its default settings.

■

Reset Picture Mode: Returns all picture values in the currently

selected mode to the default settings.

Remote control sensor

TV Controller

Function menu

MEDIA.P

m R s

Return

[UEH6003-ZC]BN68-04674B-02ENG.indd 1

2013-10-14 오후 12:55:20
