English - 7

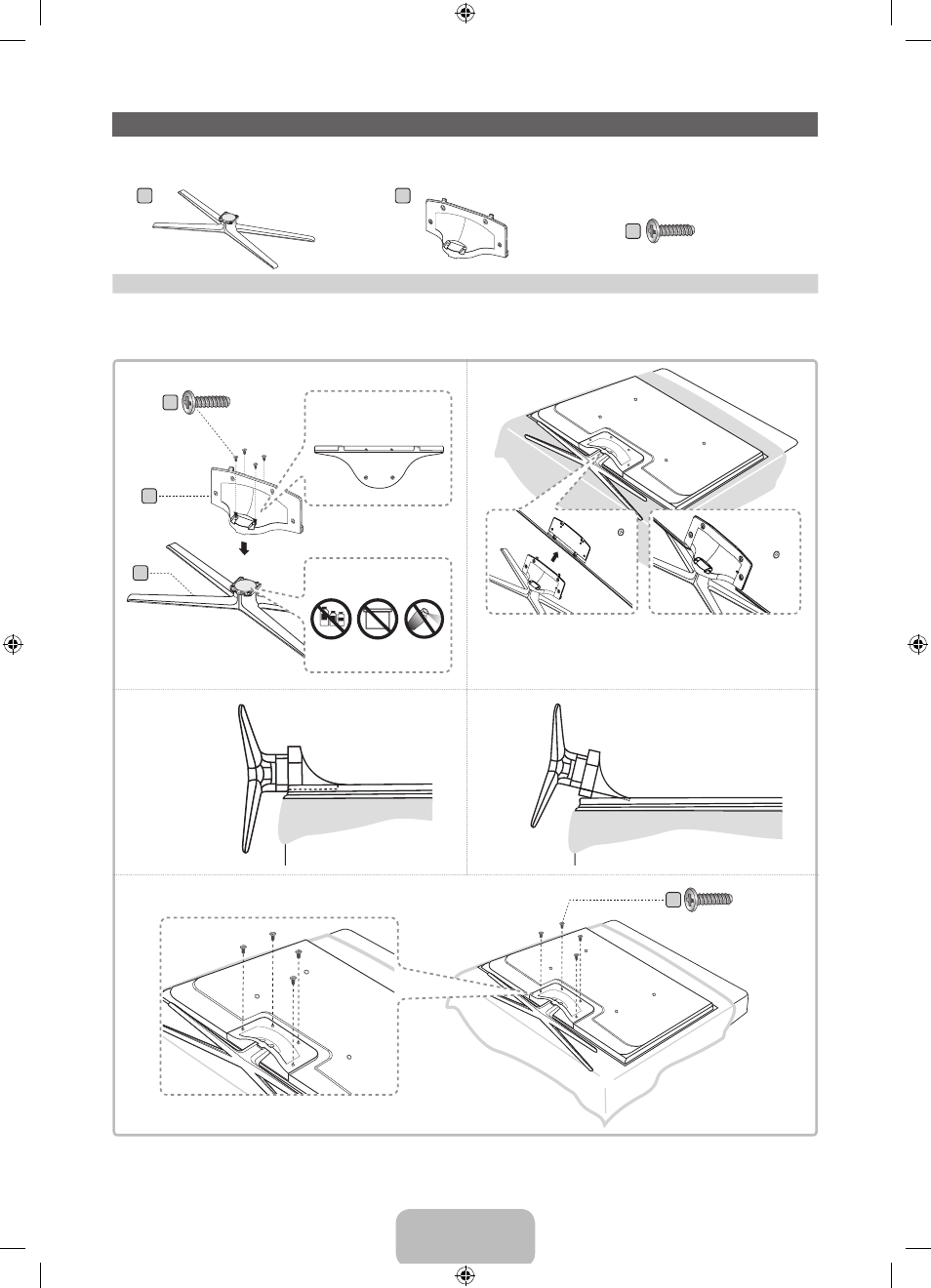

Installing the Stand
Stand Parts: 46 inches model only
A B
(M4 X L12) C
Stand x 1 Guide Stand x 1 Screws x 8
Follow the steps below to connect the TV to the stand. For more detailed instructions, see the separate
stand installation guide.
A
B
C
1
3
4
2
C
(Incorrect assembly)
(Correct assembly)
Side View
✎ Place a soft cloth over a table to protect the TV, and then
place the TV on the cloth screen side down.
✎ Insert the Stand Guide into the slot on the TV's bottom.
x4 (M4 X L12)
Rear
Front
Top View
DO NOT USE
CHEMICALS
DO NOT USE
GREASE
DO NOT
USE OIL
ATTENTION
x4 (M4 X L12)
