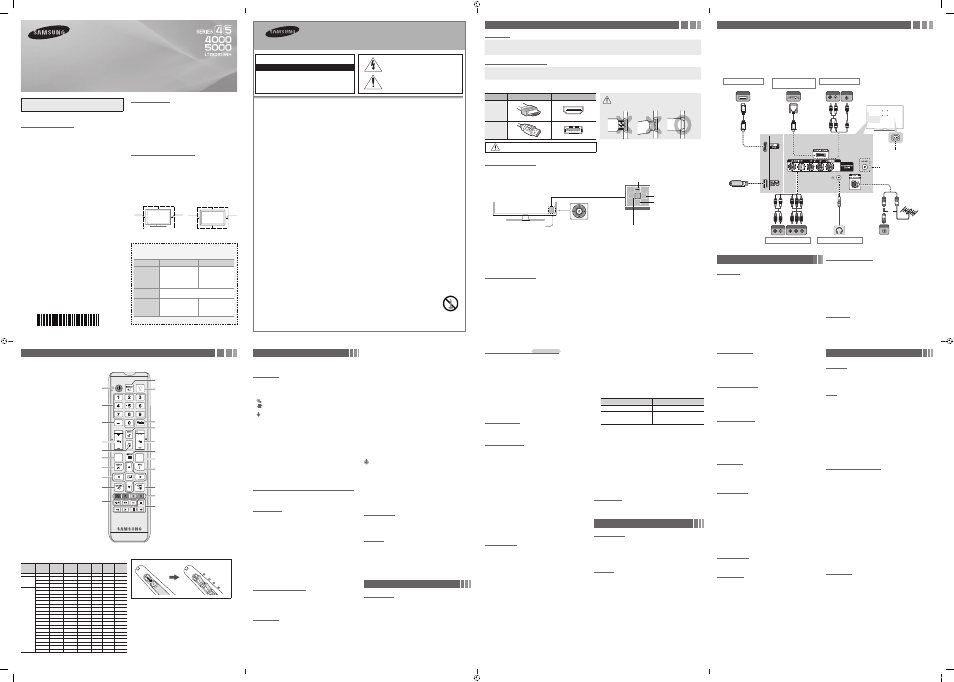

Connections

For the best picture and audio quality, connect digital devices using

an HDMI cable.

If you connect an external device to the TV that uses an older version

of HDMI, the video and audio may not work. If this occurs, ask the

manufacturer of the device about the HDMI version and, if it is out of

date, request an upgrade.

Be sure to purchase a certified HDMI cable. Otherwise, the picture

may not display or a connection error may occur.

PC/DVI AUDIO IN input is not supported.

For an HDMI to DVI cable connection, you must use the

HDMI IN

2 (DVI)

port.

Connecting through the HDMI cable may not be supported

depending on the PC.

If an HDMI to DVI cable is connected to the

HDMI IN 2 (DVI)

port,

the audio does not work.

For Set-top box connection using HDMI cable, we highly

recommend you to connect the

HDMI IN 1 (STB)

port.

Getting Started

Accessories

Input Cables (Sold Separately)

Audio

Composite (AV)

Component

Coaxial (RF)

HDMI

HDMI-DVI

✎

Make sure you have the correct cable before plugging it in. Illustrations of common plugs and jacks are shown below.

Cable Plugs

Ports/Jacks

Do not plug in opposite or wrong direction. It could

damage the TV port.

HDMI

USB

Do not plug cables in upside down. Be sure to check the orientation

of the plug before plugging it in.

TV Controller (Panel Key)

The TV’s Controller, a small joy stick like button on the rear left side of the TV, lets you control the TV without the remote control.

Remote control sensor

TV Controller
The image is drawn by facing

the front side of the TV.

Function menu

m R s

Return

Selecting the Media Play

Selecting a Source

Power Off

Selecting the Menu

✎

Exits the menu when pressing the controller more than 1 second.

✎

When selecting the function by moving the controller to the up/down/left/right directions, be sure not to press the controller. If you press it first,

you cannot operate it to move the up/down/left/right directions.

Plug & Play (Initial Setup)

When you turn the TV on for the first time, a sequence of screens and on-screen prompts will assist you in configuring the TV’s basic settings. Press

the

POWER

button. Plug & Play is available only when the Input source is set to TV. Set the initial setup following instructions that the TV guides.

✎

Connecting the power cord and antenna. (refer to ‘Connections’)

Remote Control

✎

This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.

Channel Menu

❑

Seeing Channels

Channel List

Add, delete or set Favorite channels and use the program guide for

digital broadcasts. Select a channel in the All Channels, Added

Channels, Favorite or Programmed screen by pressing the

▲/▼

buttons, and pressing the

ENTER

E button. Then you can watch the

selected channel.

■

All Channels: Shows all currently available channels.

■

Added Channels: Shows all added channels.

■

* Favorite: Shows all favorite channels.

■

Programmed: Shows all currently reserved programs.

✎

Using the remote control buttons with the Channel List

Green (Zoom): Enlarges or shrinks a channel number.

Yellow (Select): Selects multiple channel lists. Select desired

channels and press the Yellow button to set all the selected

channels at the same time. The c mark appears to the left of

the selected channels.

T (Tools): Displays the Channel List option menu. (The Options

menus may differ depending on the situation.)

Channel Status Display icons

c: A channel selected.

* : A channel set as a Favorite.

) : A reserved program.

( : A program currently being broadcast.

❑

Memorizing channels

Antenna (Switch to Cable / Switch to Air t)

Before your television can begin memorizing the available channels, you

must specify the type of signal source that is connected to the TV (i.e.

an Air or a Cable system).

Auto Program

✎

When selecting the Cable TV system: Selects the cable system.

STD, HRC and IRC identify various types of cable TV systems.

Contact your local cable company to identify the type of cable

system that exists in your particular area. At this point, the signal

source has been selected.

✎

After all the available channels are stored, it starts to remove

scrambled channels. The Auto Program menu then reappears.

✎

Press the

ENTER

E button to stop the channel store during Auto

Program.

How to Stop Auto Programming

1. Press the

ENTER

E button.

2. A message will ask Stop Auto Program?. Select Yes by pressing

the

◄ or ► button.

3. Press the

ENTER

E button.

❑

Other Features

Clear Scrambled Channel

This function filters out scrambled channels after Auto Program is

completed. This process may take up to 20~30 minutes.

✎

Press the

ENTER

E button to stop the Clear Scrambled

Channel.

✎

This function is only available in Cable mode.

Channel List

Channel List Option Menu

O Channel List → t
Set each channel using the Channel List menu options. Option menu

items may differ depending on the channel status.

■

Add / Delete: Delete or add a channel to display the channels you

want.

✎

All deleted channels will be shown on the All Channels menu.

✎

A gray-colored channel indicates the channel has been deleted.

✎

The Add menu only appears for deleted channels.

✎

Delete a channel from the Added Channels or Favorite menu in

the same manner.

■

Add to Favorite / Delete from Favorite t: Set channels you

watch frequently as Favorites.

■

Timer Viewing: You can set a desired channel to be displayed

automatically at the set time; even when you are watching another

channel. Set the current time first to use this function.

✎

Only memorized channels can be reserved.

✎

Reserved programs will be displayed in the Programmed menu.

✎

When a digital channel is selected, press the

► (Next Program)

button to view the digital program. If you select the

ENTER

(Schedule) button on the next program, you can set Timer

Viewing directly.

■

Channel Name Edit: (analog channels only) Assign your own

channel name.

■

Select All: Select all the channels in the channel list.

■

Deselect All: Deselect all the selected channels.

✎

You can only select Deselect All when one or more channels

are selected.

■

Auto Program: Scans for a channel automatically and stores in the

TV.

Programmed

(in Channel List)

O Channel List → Programmed → t
You can view, modify or delete a show you have reserved to watch.

■

Change Info: Change a show you have reserved to watch.

■

Cancel Schedules: Cancel a show you have reserved to watch.

■

Information: Display a show you have reserved to watch. (You can

also change the reservation Information.)

■

Select All / Deselect All: You can select or deselect all channels in

the channel list.

Channel Mode

Change the channel mode directly between Added Channels and

Favorite Channels.

✎

The Favorite Channels is enabled only when you set Add to

Favorite.

Fine Tune

(analog channels only)
If the reception is clear, you do not have to fine tune the channel, as

this is done automatically during the search and store operation. If the

signal is weak or distorted, fine tune the channel manually.

✎

Fine tuned channels that have been saved are marked with an

asterisk “*” on the right-hand side of the channel number in the

channel banner.

✎

To reset the fine-tuning, select Reset.

Picture Menu

Mode t

Select your preferred picture type.

✎

When connecting a PC, you can only select Entertain and

Standard.

■

Dynamic: Suitable for a bright room.

■

Standard: Suitable for a normal environment.

■

Movie: Suitable for watching movies in a dark room.

■

Entertain: Suitable for watching movies and games.

✎

Only available when connecting a PC.

Samsung MagicAngle

for 19", 22" models

Adjust screen viewing Angle to optimize screen quality according to your

viewing position.

■

Samsung MagicAngle: When viewing the screen at an angle from

below or above by setting the appropriate mode for each position you

can obtain a similar picture quality as viewing the screen directly from

the front.
Off: Select when viewing from the front position.
Lean Back Mode: Select when viewing from a slightly lower position.
Standing Mode: Select when viewing from the upper position.

■

Mode: Adjust screen viewing angle.

✎

When Samsung MagicAngle is set to Lean Back Mode or

Standing Mode, Gamma is not available.

Backlight / Contrast / Brightness / Sharpness /

Color / Tint (G/R)

Your television has several setting options for picture quality control.

✎

When connecting a PC, you can only make changes to Backlight,

Contrast, Brightness and Sharpness.

Advanced Settings

(available in Standard / Movie mode)
Compared to previous models, new Samsung TVs have a more precise

picture.

✎

When connecting a PC, you can only make changes to Gamma and

White Balance.

■

Dynamic Contrast: Adjusts the screen contrast.

■

Black Tone: Selects the black level to adjust the screen depth.

■

Flesh Tone: Emphasize pink “flesh tone”.

■

Color Space: Adjusts the range of colors available to create the

image.

■

White Balance: Adjusts the color temperature for a more natural

picture.
R-Offset / G-Offset / B-Offset: Adjusts each color’s (red, green, blue)

darkness.
R-Gain / G-Gain / B-Gain: Adjusts each color’s (red, green, blue)

brightness.
Reset: Resets the White Balance to it’s default settings.

■

Gamma: Adjusts the primary color intensity.

■

Motion Lighting: Reduce power consumption by brightness control

adapted motion.

✎

Available in Standard mode only.

Picture Options

✎

When connecting a PC, you can only make changes to the Color

Tone, Size, and HDMI Black Level.

■

Color Tone

✎

Warm1 or Warm2 will be deactivated when the picture mode is

Dynamic.

■

Size: Your cable box/satellite receiver may have its own set of screen

sizes as well. However, we highly recommend you use 16:9 mode

most of the time.
16:9: Sets the picture to 16:9 wide mode.
Zoom1: Use for moderate magnification.
Zoom2: Use for a stronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture to fit the entire

screen.
4:3: Sets the picture to basic (4:3) mode.

✎

Do not watch in 4:3 format for a long time. Traces of borders

displayed on the left, right and center of the screen may cause

image retention (screen burn) which are not covered by the

warranty.

Screen Fit: (DTV) Displays the full image without any cut-off when

HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals

are inputted.

✎

HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p

(1280x720)

✎

Settings can be adjusted and stored for each external device you

have connected to an input on the TV.

✎

Picture Sizes available by Input Source:

Input Source

Picture Size

ATV, AV, Component (480i, 480p)

16:9, Zoom1, Zoom2, 4:3

DTV(1080i, 1080p), Component

(1080i, 1080p), HDMI (720p, 1080i,

1080p)

16:9, Wide Fit, 4:3, Screen Fit

■

Digital Clean View: If the broadcast signal received by your TV is

weak, you can activate the Digital Clean View feature to reduce any

static and ghosting that may appear on the screen.

✎

When the signal is weak, try other options until the best picture

is displayed.

■

MPEG Noise Filter: Reduces MPEG noise to provide improved

picture quality.

■

HDMI Black Level: Selects the black level on the screen to adjust the

screen depth.

✎

Available only in HDMI mode (RGB signals).

■

Film Mode: Sets the TV to automatically sense and process film

signals from all sources and adjusts the picture for optimum quality.

✎

Available in ATV, DTV(interlace), AV, COMPONENT (480i / 1080i)

and HDMI (480i / 1080i).

■

LED Clear Motion: Removes drag from fast scenes with a lot of

movement to provide a clear picture.

Picture Reset

Resets your current picture mode to its default settings.

■

Reset Picture Mode: Returns all picture values in the currently

selected mode to the default settings.

Sound Menu

Mode

■

Standard: Selects the normal sound mode.

■

Music: Emphasizes music over voices.

■

Movie: Provides the best sound for movies.

■

Clear Voice: Emphasizes voices over other sounds.

■

Amplify: Increase the intensity of high-frequency sounds to allow a

better listening experience for the hearing impaired.

Equalizer

(standard sound mode only)

■

Balance L/R: Adjusts the balance between the right and left speaker.

■

100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment):

Adjusts the level of specific bandwidth frequencies.

■

Reset: Resets the equalizer to its default settings.

DTS TruSurround

(standard sound mode only)
DTS TruSurround is a patented DTS technology that solves the problem

of playing 5.1 multichannel content over two speakers. TruSurround

delivers a compelling, virtual surround sound experience through any

two-speaker playback system, including internal television speakers. It is

fully compatible with all multichannel formats.

Preferred Language

(digital channels only)
Digital-TV broadcasts are capable of simultaneous transmission of many

audio tracks (for example, simultaneous translations of the program into

foreign languages).

✎

You can only select a language from among the ones being

broadcasted.

Multi-Track Sound

(analog channels only)

■

Mono: Choose for channels that are broadcasting in mono or if you

are having difficulty receiving a stereo signal.

■

Stereo: Choose for channels that are broadcasting in stereo.

■

SAP: Choose to listen to the Separate Audio Program, which is

usually a foreign-language translation.

✎

Depending on the program being broadcast, you can listen to

Mono, Stereo or SAP.

Auto Volume

Because each broadcasting station has its own signal conditions, the

volume may fluctuate each time channel is changed. This feature lets

you automatically adjust the volume of the desired channel by lowering

the sound output when the modulation signal is high or by raising the

sound output when the modulation signal is low.

Speaker Select

If you are listening to the sound track of a broadcast or movie through an

external receiver, you may hear a sound echo caused by the difference in

decoding speed between the TV’s speakers and the speakers attached

to your audio receiver. If this occurs, set the TV to External Speaker.

✎

When you set Speaker Select to External Speaker, the TV’s

speakers are turned off. You will hear sound through the external

speakers only. When you set Speaker Select to TV Speaker

both the TV’s speakers and the external speakers are on. You will

hear sound through both.

✎

When Speaker Select is set to External Speaker, the

VOLUME

and

MUTE

buttons will not operate and the sound settings will

be limited.

✎

If there is no video signal, both the TV’s speakers and the external

speakers will be mute.

Visual Impaired

(digital channels only)
Adds verbal description to the main audio to help the visually impaired.

Sound Reset

■

Reset All: Resets all sound settings to the factory defaults.

Setup Menu

Language

Set the menu language.

✎

Choose between English, Español, and Français.

❑

Setting the Time

Time

✎

The current time will appear every time you press the

INFO

button.

■

Clock: Setting the clock is for using various timer features of the TV.

✎

If you disconnect the power cord, you have to set the clock again.

Clock Mode: Set the current time manually or automatically.
Clock Set: Set the Month, Day, Year, Hour, Minute and am/pm.

✎

Available only when Clock Mode is set to Manual.

Time Zone: Select your time zone.
DST: (Daylight Saving Time) Switches the DST (Daylight Saving Time)

function on or off.

✎

DST and Time Zone function is only available when the Clock

Mode is set to Auto.

■

Sleep Timer t

Automatically shuts off the TV after a preset period of time. (30, 60,

90, 120, 150 and 180 minutes).

✎

To cancel the Sleep Timer, select Off.

Timer 1 / Timer 2 / Timer 3

Three different on / off timer settings can be made. You must set the

clock first.

■

On Time / Off Time: Set the hour, minute, am/pm and Activate /

Inactivate. (To activate the timer with the setting you have chosen, set

to Activate.)

■

Volume: Set the desired volume level.

■

Contents: When the On Time is activated, you can turn on a specific

channel or play back contents such as photo or audio files.

− TV/USB: Select TV or USB. (Make sure that an USB device is

connected to your TV.)

− Antenna: Displays the current antenna source.

− Channel: Select the desired channel.

− Music/Photo: Select the folder containing MP3/JPEG files on the

USB device.

✎

The maximum displayed number of files, including sub folders, in

one folder of USB storage device is 2000.

✎

The media may not be playing smoothly when using the device

lower than USB 2.0.

■

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or

Manual to set at you convenience. If you select Manual, you can set

up the day you want to activate the timer.

❑

Other Features

Game Mode

When connecting to a game console such as PlayStation™ or Xbox™,

you can enjoy a more realistic gaming experience by selecting the game

menu.

✎

Precautions and limitations for game mode

To disconnect the game console and connect another external

device, set Game Mode to Off in the setup menu.

If you display the TV menu in Game Mode, the screen shakes

slightly.

Game Mode is not available when the input source is set to TV.

After connecting the game console, set Game Mode to On.

Unfortunately, you may notice reduced picture quality.

LED TV

user manual

y The position of the port may differ

depending on the model.

HDMI OUT

AUDIO OUT

R-AUDIO-L

COMPONENT OUT

DVI OUT

ANT OUT

AUDIO OUT

R-AUDIO-L

VIDEO OUT

Power Input
(for 19", 22" models)

TV Rear Panel

TV Side Panel

VHF/UHF Antenna

Cable

USB

Component connection

Headphones connection

PC connection

(Using an HDMI (to DVI) Cable)

HDMI connection

Set-top box / Blu-ray player / DVD

AV connection

VCR / Blu-ray player

Blu-ray player / DVD

Changing the Input Source

Source List

Use to select TV or an external input source such as a DVD player / Blu-

ray player / cable box / STB satellite receiver.
1. Press the

SOURCE

button.

2. Select a desired external input source.

■

TV / AV / Component / HDMI1 / HDMI2/DVI

✎

You can only choose external devices that are connected to the TV.

In the Source List, connected inputs will be highlighted.

How to use Edit Name

Edit Name lets you associate a device name to an input source. To

access Edit Name, press the

TOOLS

button in Source List. Name the

device connected to the input jacks to make your input source selection

easier.

✎

When connecting a PC to the

HDMI IN 2(DVI)

port with HDMI cable,

you should set the TV to PC mode under Edit Name.

✎

When connecting a PC to the

HDMI IN 2(DVI)

port with HDMI

to DVI cable, you should set the TV to DVI PC mode under Edit

Name.

✎

When connecting an AV devices to the

HDMI IN 2(DVI)

port with

HDMI to DVI cable, you should set the TV to DVI mode under Edit

Name.

Information

You can see detailed information about the connected external device.

Display Modes (HDMI/DVI Input)

4 series & TD310:1366 x 768@60Hz / 5 series: 1920 x 1080@60Hz

Mode

Resolution

Horizontal
Frequency

(KHz)

Vertical

Frequency

(Hz)

Pixel Clock
Frequency

(MHz)

Sync

Polarity

(H / V)

1366 x 768 1920 x 1080

IBM

720 x 400

31.469

70.087

28.322

-/+

MAC

640 x 480

66.667

30.24

-/-

832 x 624

49.726

74.551

57.284

-/-

1152 x 870

68.681

75.062

100

-/-

VESA DMT

640 x 480

31.469

59.94

25.175

-/-

640 x 480

37.861

72.809

31.5

-/-

640 x 480

37.5

31.5

-/-

800 x 600

37.879

60.317

+/+

800 x 600

48.077

72.188

+/+

800 x 600

46.875

49.5

+/+

1024 x 768

48.363

60.004

-/-

1024 x 768

56.476

70.069

-/-

1024 x 768

60.023

75.029

78.75

+/+

1152 x 864

67.5

108

+/+

1280 x 720

74.25

+/+

1280 x 800

49.702

59.81

83.5

-/+

1280 x 1024

63.981

60.02

108

+/+

1280 x 1024

79.976

75.025

135

+/+

1366 x 768

47.712

59.79

85.5

+/+

1440 x 900

55.935

59.887

106.5

-/+

1600 x 900RB

108

+/+

1680 x 1050

65.29

59.954

146.25

-/+

1920 x 1080

67.5

148.5

+/+

Installing batteries (Battery size: AAA)

✎

NOTE
•

Use the remote control within 23 feet from TV.

•

Bright light may affect the performance of the remote control.

Avoid use when nearby fluorescent lights or neon signs.

•

The Color and shape may vary depending on the model.

Press to select additional channels (digital) being

broadcasted by the same station. For example, to

select channel ‘54-3’, press ‘54’, then press ‘-’ and ‘3’.

Returns to the previous channel.

Press to directly access to channels.

Turns the TV on and off.

Displays and selects the available video

sources.

Use these buttons in a specific feature.

P.SIZE

: Lets you choose the picture size.

MTS

: Press to choose stereo, mono or Separate Audio

Program (SAP broadcast).

: Controls the caption decoder.

Cuts off the sound temporarily.

Automatically shuts off the TV at a preset time.

Displays the channel list on the screen.

Displays information on the TV screen.

Quickly select frequently used functions.

Selects the on-screen menu items and changes the

values seen on the menu.

Exit the menu.

Returns to the previous menu.

Turns the remote control light on or off. When

on, the buttons become illuminated for a

moment when pressed. (Using the remote

control with this button set to On will reduce the

battery usage time.)

Use these buttons according to the direction

on screen.

Changes channels.

Displays the main on-screen menu.

Views the Media Play.

Adjusts the volume.

MEDIA.P

SLEEP

y The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this

apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.

Do not cover the slots and openings with a cloth or other materials.

Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.

Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

y Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

y Do not place a vessel containing water (vases etc.) on this apparatus, as this can result in a risk of fire or electric shock.

y Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near

a swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer immediately.

y Make sure to pull out the power cord from the outlet before cleaning.

y This apparatus use batteries. In your community, there might be regulations that require you to dispose of these batteries properly to protect

the environment. Please contact your local authorities for disposal or recycling information.

y Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in fire or electric shock.

y Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay

particular attention to cords at the plug end, where connected to adaptors, and at the point where they exit from the apparatus.

y To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet

and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

y Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local

electrical supply. (depending on the model)

y Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

y To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.

y Make sure to plug the power cord in until it is firmly inserted. Pull on the plug, not the cord, when removing the power cord from the outlet. Do

not touch the power cord with wet hands.

y If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and

contact an authorized dealer or service center.

y Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time

(especially when children, elderly or disabled people will be left alone in the house).

Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat,

or cause the insulation to deteriorate.

y Be sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low temperatures, high humidity,

chemical substances or where it will operate for 24 hours a day such as in an airport, a train station, etc. Failure to do so may cause serious

damage to your set.

y Use only a properly grounded plug and receptacle.

An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

y To turn off the apparatus completely, you must pull the power plug out of the wall socket. Consequently, the power plug should be readily

accessible at all times.

y Do not allow children to hang onto the product.

y Store the accessories (batteries, etc.) in a location safely out of the reach of children.

y Do not install the product in an unstable location such as a shaky self, a slanted floor, or a location exposed to vibration.

y Do not drop or impart a shock to the product. If the product is damaged, disconnect the power cord and contact a service center.

y To clean the product, unplug the power cord from the power outlet and wipe the product using a soft cloth dipped in a small amount of water.

Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. This may damage the

appearance or erase the printing on the product.

y Do not expose the apparatus to dripping or splashing.

y Do not dispose of batteries in a fire.

y Do not short circuit, disassemble, or overheat the batteries.

y There is a danger of explosion if you replace the batteries with the wrong type of battery. Replace only with the same or equivalent type.

y WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL

TIMES.

Warning! Important Safety Instructions

Please read the safety instructions below before installing and using the product.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). THERE

ARE NO USER SERVICEABLE PARTS INSIDE. REFER

ALL SERVICING TO QUALIFIED PERSONNEL.

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

This symbol indicates that high voltage is

present inside. It is dangerous to make any kind

of contact with any internal part of this product.

This symbol indicates that important literature

concerning operation and maintenance has

been included with this product.

Power Input

(for 28", 29" models)

Figures and illustrations in this User Manual are provided for reference only and

may differ from actual product appearance. Product design and specifications

may be changed without notice.

Important Warranty Information Regarding

Television Format Viewing

✎

Wide screen format LED Displays with aspect ratios of 16:9 (the ratio of the

screen width to screen height) are primarily designed to display wide screen

format full-motion video. The images displayed on them should primarily be in

the wide screen 16:9 ratio format, or expanded to fill the screen if your model

offers this feature and the images are constantly moving. Displaying stationary

graphics and images on screen, such as the dark sidebars on non- expanded

standard format television video and programming, should be limited to no

more than 5% of the total television viewing per week. Additionally, viewing

other stationary images and text such as stock market crawls, video game

displays, station logos, web sites or computer graphics and patterns, should

be limited as described above for all televisions. Displaying stationary images

that exceed the above guidelines can cause uneven aging of LED Displays

that leave subtle, but permanent burned-in ghost images in the LED picture.

To avoid this, vary the programming and images, and primarily display full

screen moving images, not stationary patterns or dark bars. On LED models

that offer picture sizing features, use these controls to view different formats

as a full screen picture. Be careful in the selection and duration of television

formats you use for viewing. Uneven LED aging as a result of format selection

and use, as well as burned-in images, are not covered by your Samsung
limited warranty.

SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY

STATEMENT

Subject to the requirements, conditions, exclusions and limitations of the original

Limited Warranty supplied with Samsung Electronics (SAMSUNG) products, and the

requirements, conditions, exclusions and limitations contained herein, SAMSUNG

will additionally provide Warranty Repair Service in the United States on SAMSUNG

products purchased in Canada, and in Canada on SAMSUNG products purchased

in the United States, for the warranty period originally specified, and to the Original

Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized

Service Center. Along with this Statement and the Original Limited Warranty

Statement, a dated Bill of Sale as Proof of Purchase must be presented to the Service

Center. Transportation to and from the Service Center is the responsibility of the

purchaser. Conditions covered are limited only to manufacturing defects in material or

workmanship, and only those encountered in normal use of the product. Exclusions

include, but are not limited to, any originally specified provisions for in-home or

on-site services, minimum or maximum repair times, exchanges or replacements,

accessories, options, upgrades, or consumables.
For the location of a SAMSUNG Authorized Service Center, please call toll-free:
– In the United States : 1-800-SAMSUNG (1-800-726-7864)
– In Canada : 1-800-SAMSUNG

Still image warning

Avoid displaying still images (such as jpeg picture files) or still image elements (such

as TV channel logos, panorama or 4:3 image format, stock or news bars at screen

bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of

LED screen, which will affect image quality. To reduce risk of this effect, please follow
below recommendations:

Avoid displaying the same TV channel for long periods.

Always try to display any image on full screen, use TV set picture format menu for

best possible match.

Reduce brightness and contrast values to minimum required to achieve desired

picture quality, exceeded values may speed up the burnout process.

Frequently use all TV features designed to reduce image retention and screen
burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to
ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in
the internal temperature of the product.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics
only.
• If you use parts provided by another manufacturer, it may result in a problem

with the product or an injury due to the product falling.

✎

The appearance may differ depending on the product.

✎

Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand.

Installation with a wall-mount.

4inches

Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please

contact the SAMSUNG customer care center.

Country

CANADA

U.S.A

Address

Samsung Electronics
Canada Inc., Customer
Service 55 Standish Court
Mississauga, Ontario L5R
4B2 Canada

Samsung Electronics
America, Inc. 85
Challenger Road
Ridgefield Park, NJ 07660

Customer Care

Center 

1-800-SAMSUNG (726-7864)

Web Site

www.samsung.com/ca
(English)
www.samsung.com/ca_fr
(French)

www.samsung.com/us

Remote Control (AA59-00600A) & Batteries (AAA x 2)

Warranty Card / Regulatory Guide

Owner’s Instructions

Power Cord

AC/DC Adapter (for 19", 22" models)

BN68-04797K-00

- 2 -

- 1 -

- 6 -

- 5 -

- 3 -

- 7 -

- 4 -

- 8 -

[UF4000_5000_19-29-ZC]BN68-04797K-00ENG.indd 1

2013-10-10 오전 11:00:02
