ALIGNMENT AND ADJUSTMENTS
10
Board Input Test Mode
Definition of Board Input Test Mode:
- Board Input Test Mode is to displays a specified input after a key press.
How to Enter:

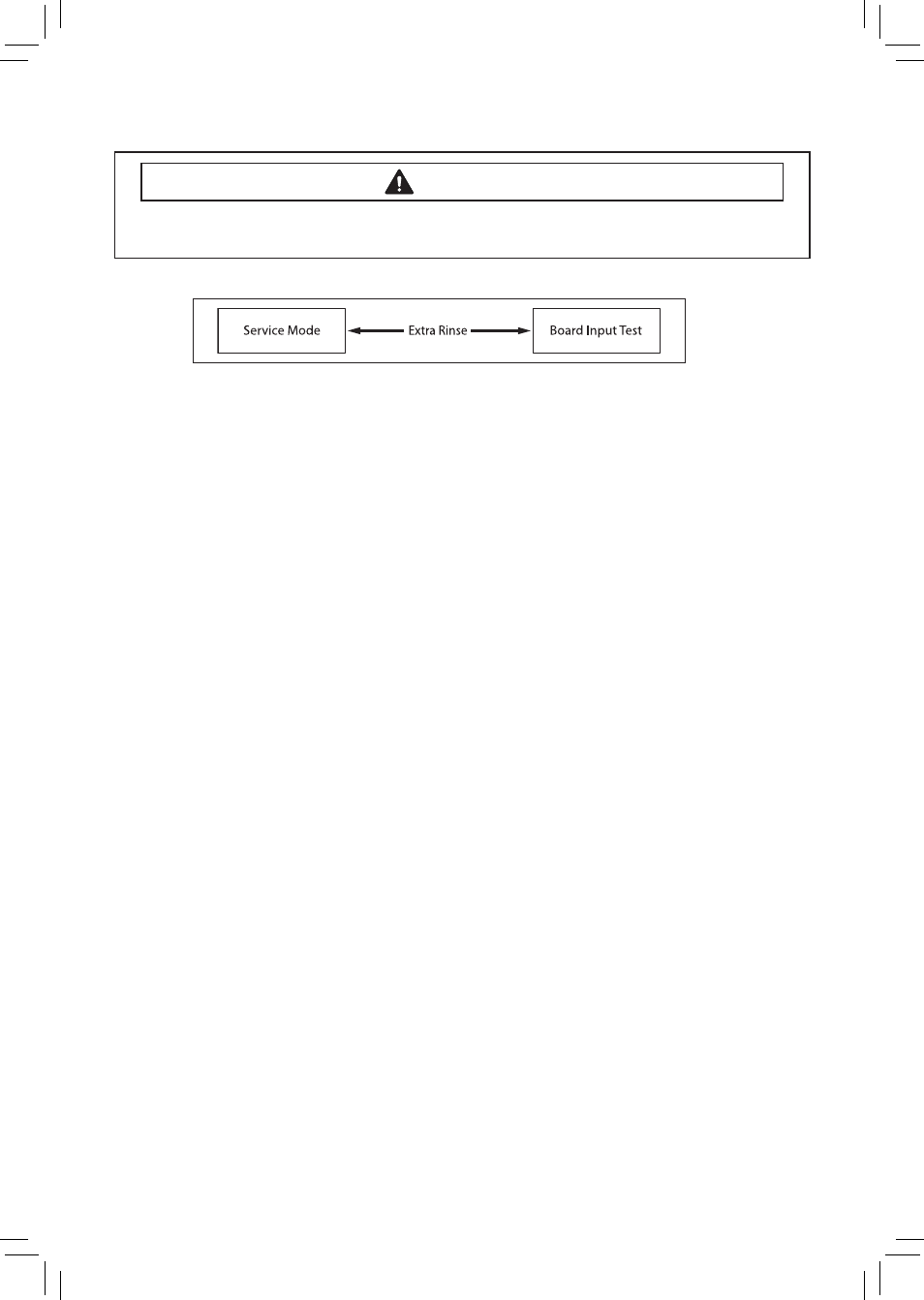

- To enter the Board Input Test Mode, press the Extra Rinse key during Service Mode.
Board Input Test Mode:
1. Activate the Service Mode first.
2. Press the key to start Board Input Test.
3. Turn the Jog-Dial so that the normal course is turned on, and The Water Temperature will be
displayed in Celsius.
4. Turn the Jog-Dial so that the Heavy duty cycle is turned on, The Water Temperature will be
displayed in Fahrenheit.
5. Turn the Jog-Dial so that the Perm Press cycle is turned on, The door status will be displayed (OP
if open, CL if closed).
6. Turn the Jog-Dial so that the Rinse+Spin or Quick Wash is turned on, The Door Lock Switch
status will be displayed (UL if unlocked, LO if locked).
To avoid risk of electrical shock, personal injury or death; disconnect power to washer
before servicing, unless testing requires power.
WARNING
