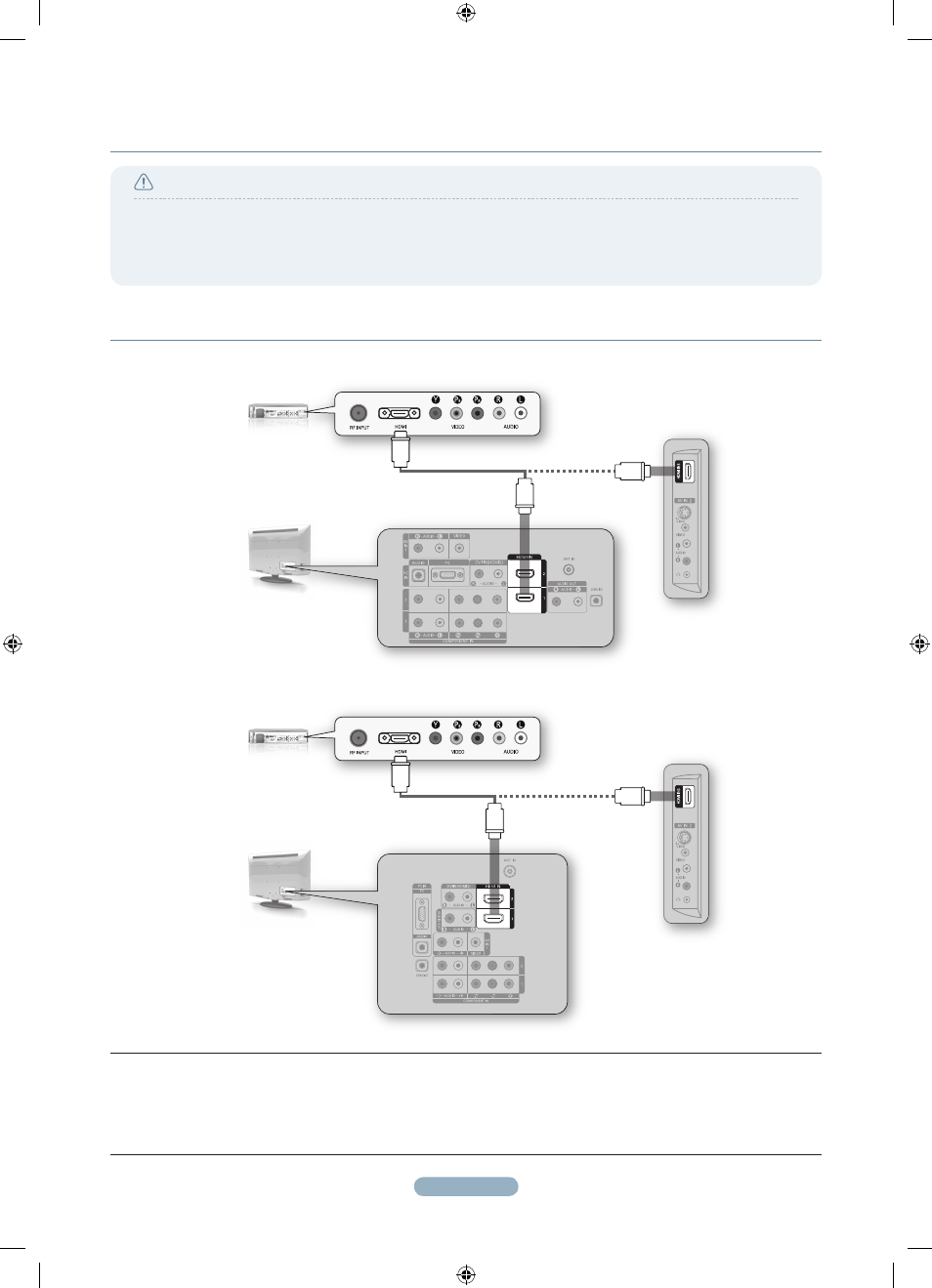

Connect an HDMI Cable(Not supplied) between the
HDMI IN (, 2 or 3) jack on the TV and the HDMI jack on the
Cable Box/Satellite receiver (Set-Top Box).
No additional Audio connection is needed for an HDMI to HDMI connection.
N
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
TV REAR PANEL
TV SIDE PANEL
Connections
CONNECTINg A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA HDMI
Caution
● When connecting an external device, match the colour of the connection terminal to the cable.
● The product colour and shape may vary depending on the model.
● Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.
● Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
TV REAR PANEL
TV SIDE PANEL
