installing the dishwasher _1
02 I
NST
A
ll
ING
T
he d
IS
h
W
AS
her
STep cONNecTING The drAIN hOSe
1. Check the parts on the sink to which the drain hose is connected.

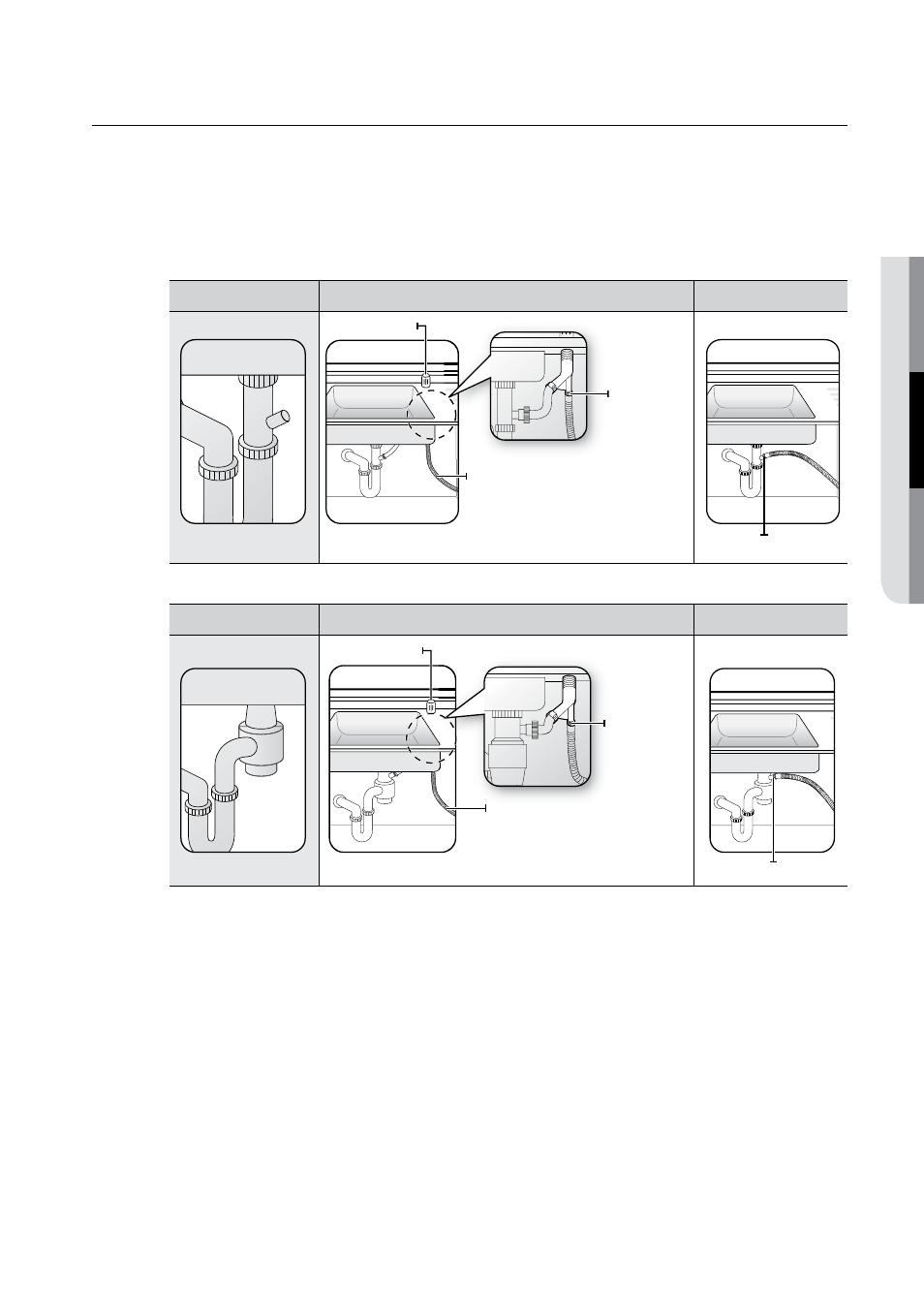

. There are several ways to insert the drain hose into the drain hose connector of the sink, as
shown in the following figures. Connecting the drain outlet must be done in accordance with
the water pipe installation regulations in your region.
Garbage disposal With an air gap Without an air gap
case 2. With disposal
Garbage disposal With an air gap Without an air gap
Air gap
Drain hose
hose clamp
hose clamp
Air gap
hose clamp
Drain hose
hose clamp
