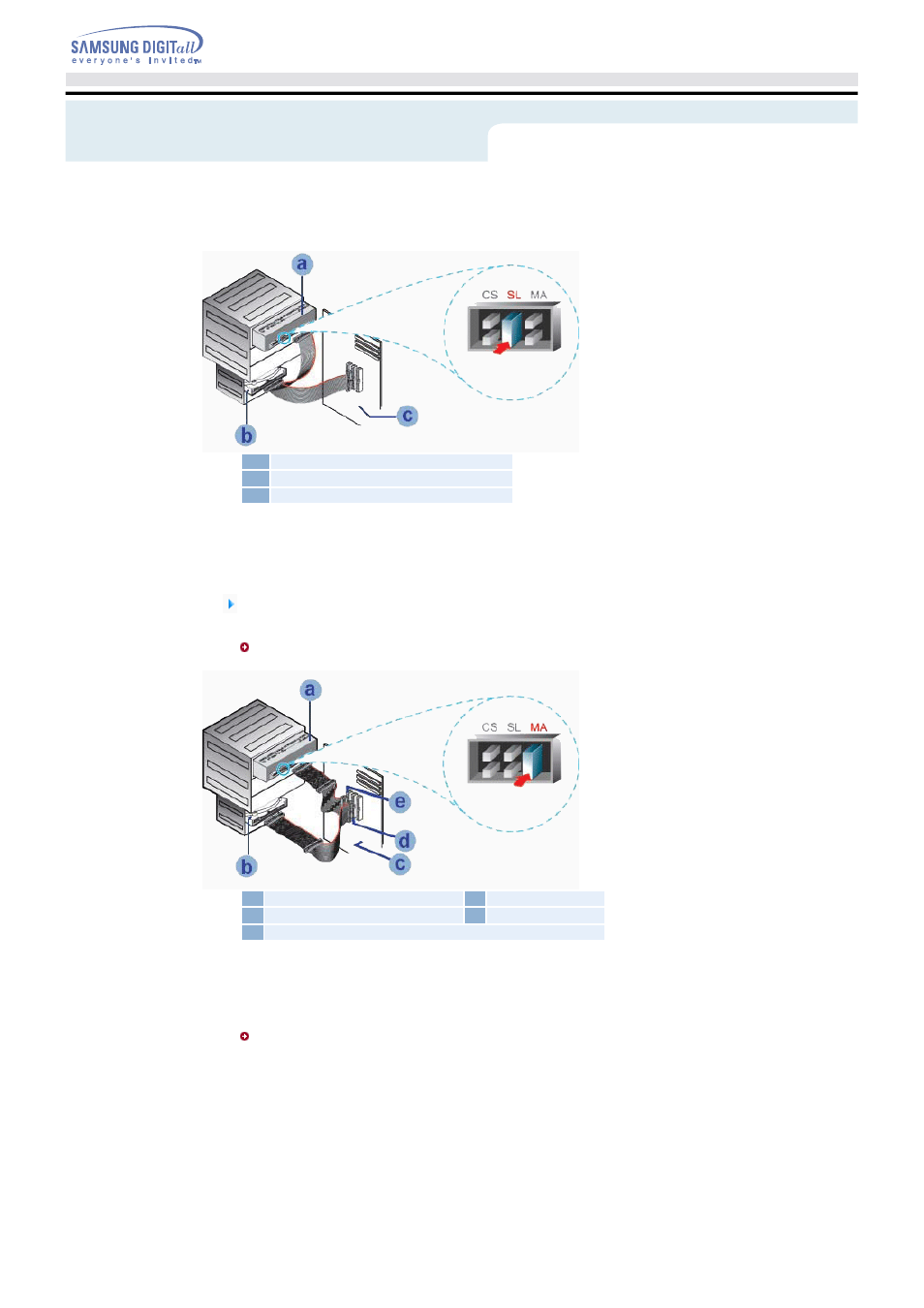

a : Slave Drive (Select the SL jumper)
b : HDD
c : MotherBoard

When you use two E-IDE cables
Set the jumper to MA (Master) in the Master/Slave port in the back of the DVD±R/RW Drive.

When you have one DVD±R/RW Drive: Set it to MA (Master)

a : Master Drive (Select the MA jumper)

b : HDD

c : Motherboard

d : Primary 1

e : Secondly 1

When you have one DVD±R/RW Drive and the other ODD products: Set it to MA (Master) /

SL (Slave),

and Connecting Cables

Installing DVD R/RW Drive
