HOTPLATE
NATURAL GAS
L.H.F. R.H.F. R.H.R. L.H.R. CENTRE CENTRE
WOK FRONT REAR
BURNER TYPE ULTRA-RAPID RAPID RAPID SEMI-RAPID SEMI-RAPID ULTRA-RAPID
MAXIMUM HEAT 5.85 kW 3.22 kW 3.22 kW 1.91 kW 1.91 kW 5 kW
INPUT
BTU’s/hr
20,000 11,000 11,000 6,500 6,500 17,000
INJECTOR MARKING
MAIN
80Hi 155 155 118 118 200
SECONDARY 2 x 1.30 - - - - -
PRESSURE POINT POSITION: REAR RH SIDE OF HOTPLATE
PRESSURE SETTING: 4” W.G.
BURNER IGNITION: H.T. SPARK
PROPANE
L.H.F. R.H.F. R.H.R. L.H.R. CENTRE CENTRE
WOK FRONT REAR
BURNER TYPE ULTRA-RAPID RAPID RAPID SEMI-RAPID SEMI-RAPID ULTRA-RAPID
MAXIMUM HEAT 4.8 kW 3.0 kW 3.0 kW 1.75 kW 1.75 kW 4.0 kW
INPUT
BTU’s/hr
16,500 10,250 10,250 6000 6000 13,500
INJECTOR MARKING
MAIN
46 85 85 65 65 110
SECONDARY 2 x 66 - - - - -
PRESSURE POINT POSITION: REAR RH SIDE OF HOTPLATE
PRESSURE SETTING: 10” W.G.
BURNER IGNITION: H.T. SPARK
ELECTRIC GRILL AND OVENS WEIGHT OF APPLIANCE: 220 kg
TOP OVEN POWER RATING - 1.45 kW
BROILER ELEMENT - POWER RATING 2.45 kW
SLOW COOKING OVEN - POWER RATING 1.0 kW
LOWER OVEN (FAN) - 2.2 kW
240 VOLT 60 Hz SINGLE PHASE
The data plaque is located on a pull out plate - lower front of appliance (See Fig. 10, Page 22).

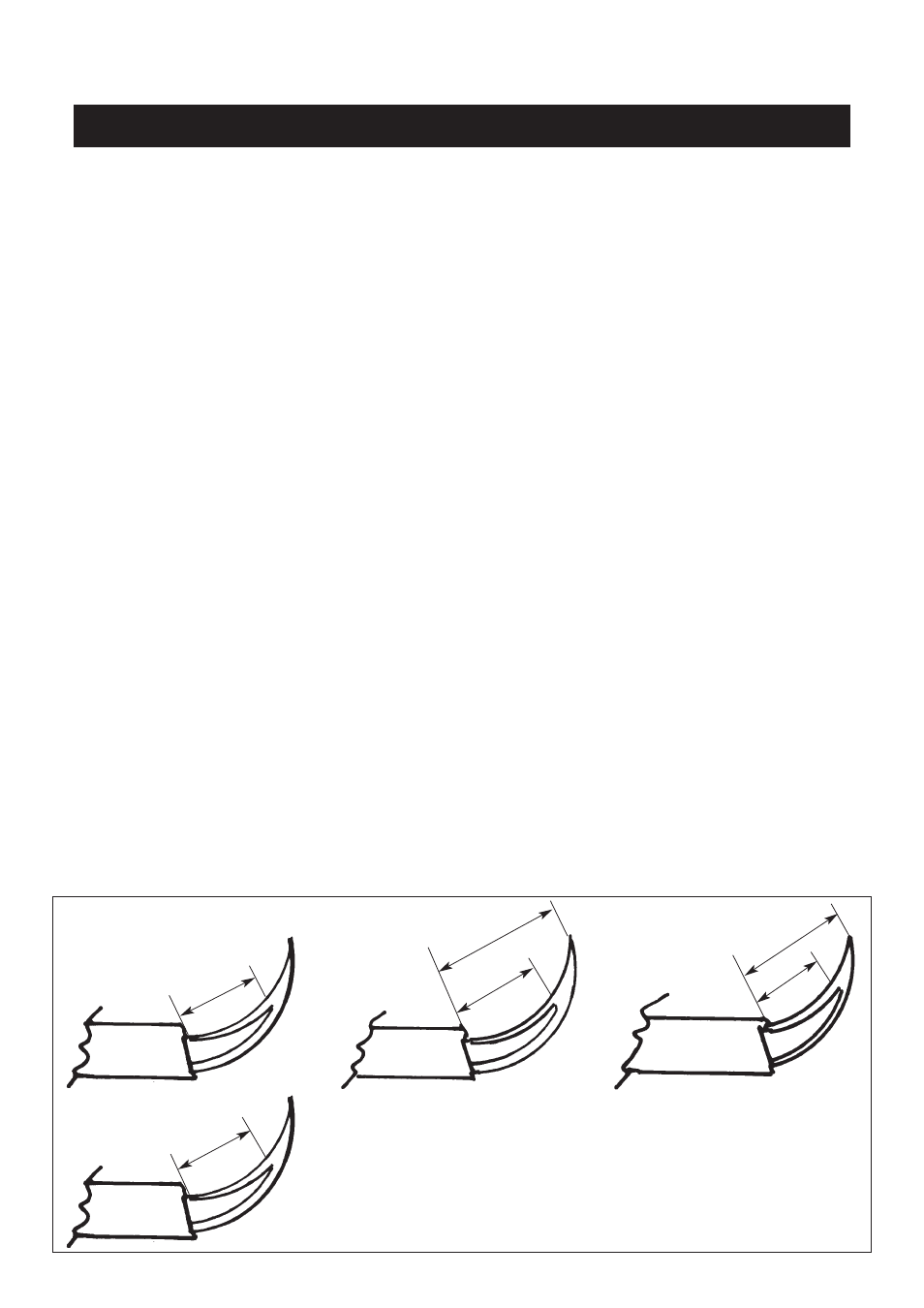

TYPICAL SECTION VIEW OF FLAMES:
TECHNICAL DATA
4
15/16”
9/16”
7/8”
1/2”
3/4”
9/16”
LHF HOTPLATE BURNER
CR HOTPLATE BURNER
RHF & RHR HOTPLATE
BURNER
LHR & CF HOTPLATE BURNER
