Aga Ranges DC6 (FFD) User Manual
Page 15
4. Position burner caps onto burner bodies. (See Figs. 7A, 7B & 7C)
15

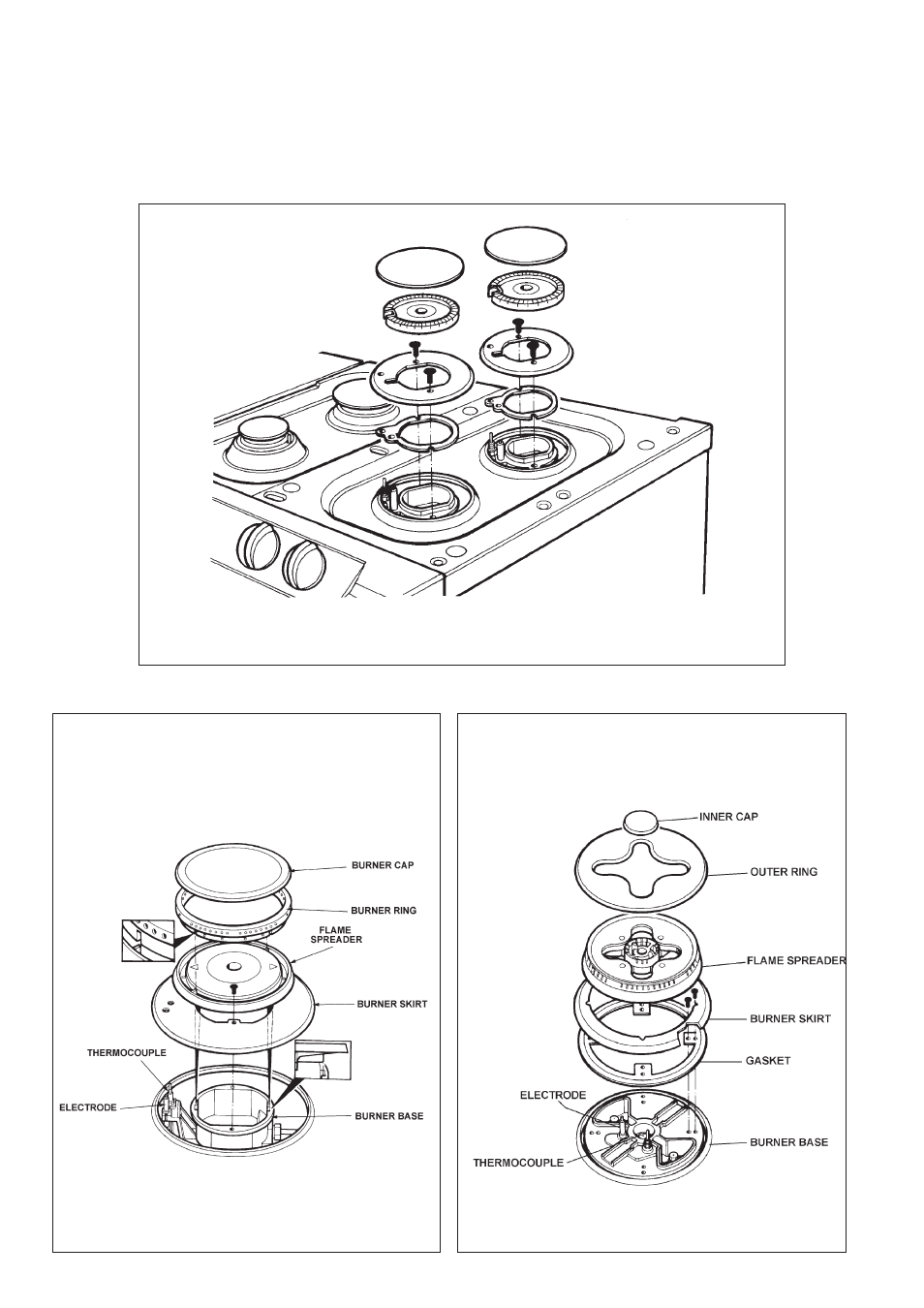

Fig. 6C
DESN 512419 A
3. Fit and secure six burner rings using M4 screws on rear left hand, front centre, front right
hand and rear right hand burners. Use No.6 3/8 screw on front left hand and centre rear
burners. (See Fig. 6C).
NOTE: The fitting of LH and centre burners are the same as shown in Fig. 6B.
Fig. 7A
DESN 513714
ULTRA RAPID BURNER
DESN 513512
WOK BURNER
