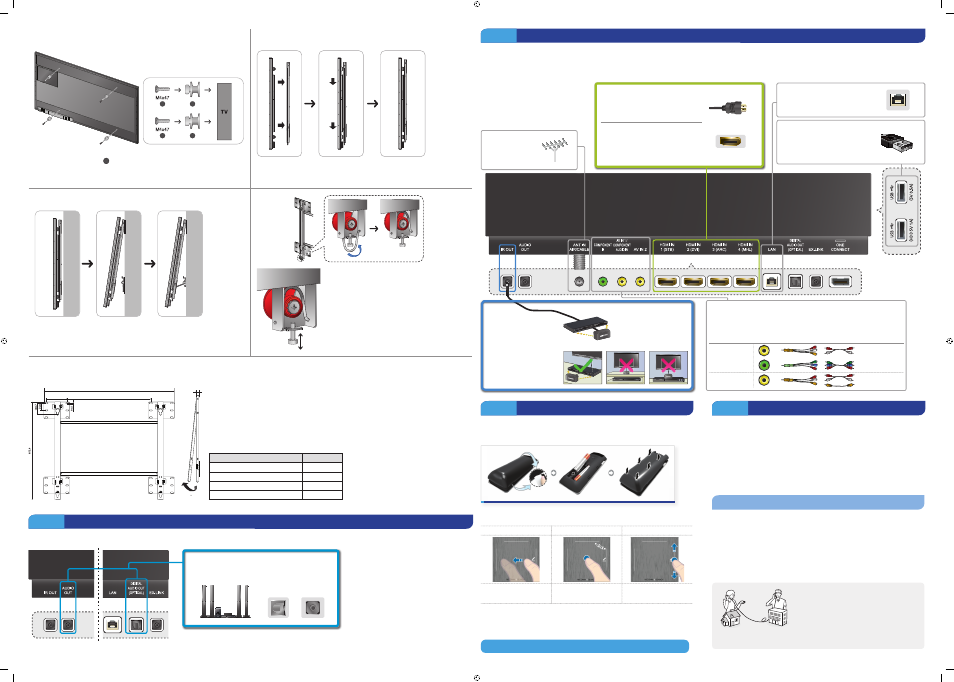

Step 3 Connect devices
We suggest using HDMI connections whenever possible for the best picture quality. Use the included AV adapter to connect older devices.
✎ Please check the shape of the plugs to avoid inserting them upside down.
✎ The appearance of your TV may differ from the images below, depending on the model.
Best Connection : HDMI
We suggest using HDMI whenever
possible.
HDMI Cable
HDMI 1 is the default port for a cable or
satellite set-top box.
Use the other ports for Blu-ray players,
game consoles, and other devices.
HDMI Port USB Connections
You can connect USB storage devices
to the USB ports and enjoy personal
photos, videos, and music.
Wired Ethernet
Connect the IR extender to the
IR Out port to control external
devices connected to the TV
using the Smart Touch Control.
For more detailed information,
refer to the "Universal Remote
Control Setup" section in the
User manual.
Good Connection: Component (Y, PB, PR) or AV (Composite)
Match the colors on your device's cables to the colors on the device's out ports.
Connect the device's cables to the included adapters, and then connect the adapters
to the appropriate ports on the TV as shown in the table below. Make sure the colors
match. The Component connection is shown on the top. The AV connection is shown
on the bottom.
AV IN 1 Audio (L/R)
COMPONENT IN Video
AV IN 2
Audio (L/R)
Video
Connect the cable
from the antenna or
cable TV outlet.
Step 4 Using the Smart Touch Control
Insert the batteries into the Smart Touch Control
Insert the tip of a credit card or similar item into the notch on the side of the Smart Touch Control,
and then twist the card to open and remove the remote's back cover.
✎ The notch’s location may vary depending on the type of Smart Touch Control provided.
Using the touch pad
navigation selection scrolling
To control the highlight, move
your thumb across the pad.
To select an item, press the
pad until you hear a click.
Move your thumb along the
ridges to quickly scroll through
items.
Pairing the Smart Touch Control
If you need to reestablish the connection between the TV and the Smart Touch Control, press the
pairing button at the back of the Smart Touch Control, pointing at the remote control sensor of
the TV.
Congratulations on your new Smart TV!
Step 5 Power on and start the initial setup
Information required:
• Wi-Fi network password (if you use one)
• Zip code
• Cable or satellite provider info
Plug in the TV. Press the power button on the remote to turn on the TV and start the initial set-up.
✎ The TV must be connected to the Internet to use the Smart Features. If you have a wireless
network, confirm that your network router is working before you start the initial setup. If you
have a wired network, connect the TV to the network with a CAT 7 cable before you begin.
Troubleshooting
The TV won’t turn on
Make sure all cables are fully inserted, and that the remote has batteries installed.
I don’t know where to plug in
Devices without HDMI may require the included A/V adapter.
I have extra parts
The TV includes some optional parts to help with wall mounting and cable routing.
If you experience issues, please do not take the TV back
to the store.
In the United States of America, call us at
1-800-SAMSUNG (1-800-726-7864) or visit us at www.
samsung.com or www.samsung.com/spsn for support
and warranty service.
For other countries, refer to "Contact SAMSUNG
WORLDWIDE" in the user guide.
8
C A
C A
Assemble the mounting pieces A to the back of the TV as shown in the diagram.
] Make sure to insert the pieces into the correct holes.
9
Work with at least one person to lift the TV and mount it on to the bracket as shown in the
diagram.
10
wall wall wall
Lift the bottom of the TV and then secure it in place as shown in the diagram. Connect the
cables.
11
Take hold of the bottom of the TV and slightly pull it up to leave
space between the TV and the wall, and then flip the safety
hooks at both ends to secure the mounting pieces.
✎ If the TV is not horizontally level, adjust the level by turning
the screws as shown in the diagram.
Product Specifications
✎ Tilt angle may vary depending on the model.
Width (mm) 1267.2
Height (mm) 952
Depth (mm) 28
Weight (kg) 6.3
Wall Mount VESA Specifications (mm) 1000 x 800
812.8 203.2
1267.2 28.0
6
Step 2 Connect Audio Devices
✎ The UN85S9VF model requires you to connect a separate device in order to produce sound.
✎ To control the audio device using the TV’s remote control, use the Sound Share feature or connect the audio device to the TV’s HDMI (ARC) port.
You can connect home theater systems to the OPTICAL or
AUDIO OUT ports.
or
