English - 5

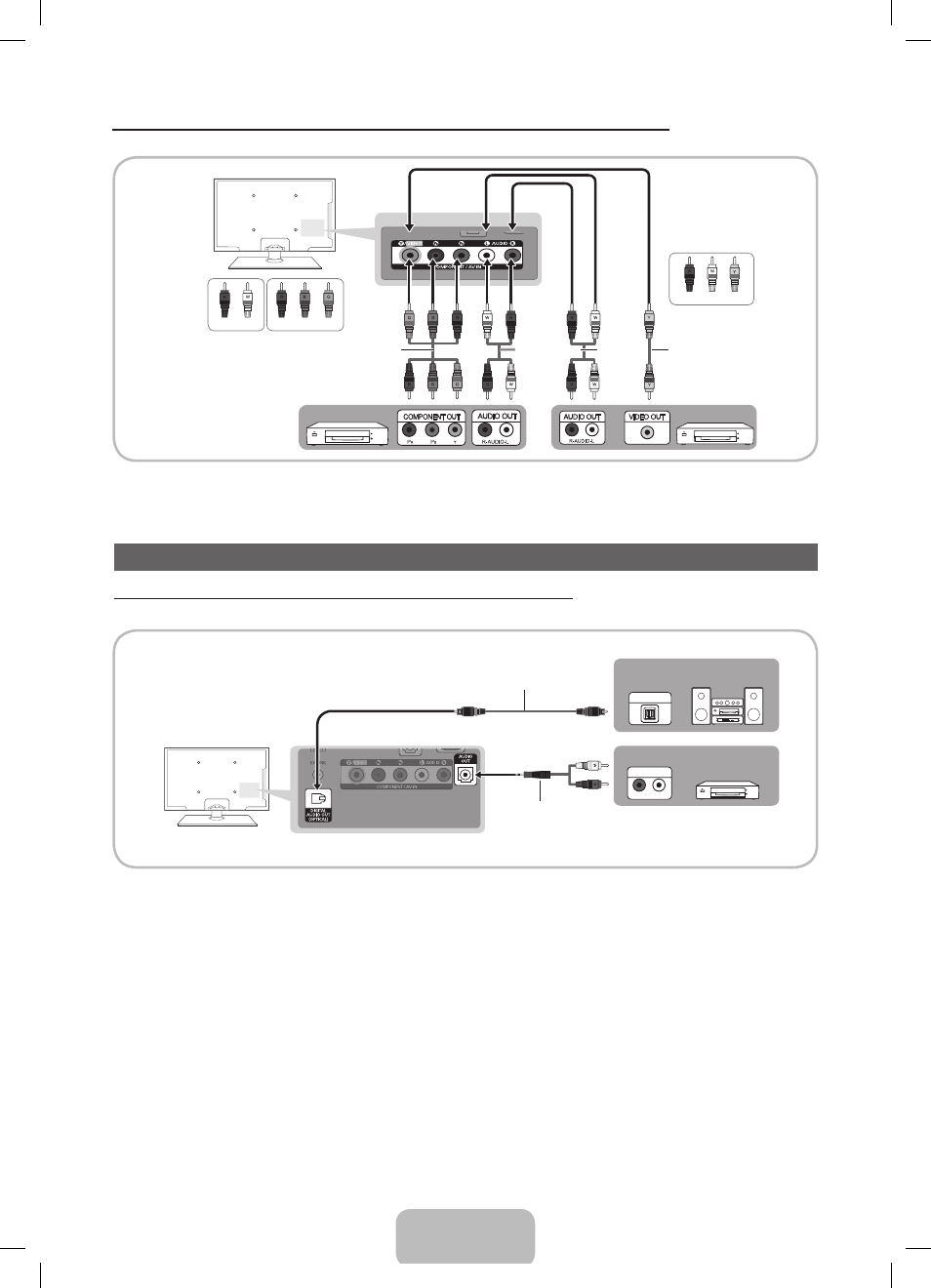

Connecting Audio Devices
Using an Optical (Digital) Cable Connection or a Standard Stereo Connection
Use on Digital Audio Systems, Amplifiers, and Home Theaters.
✎
DIGITAL AUDIO OUT (OPTICAL)
x
When you connect a Digital Audio System to the
DIGITAL AUDIO OUT (OPTICAL)
jack, decrease the volume
of both the TV and the system.
x
5.1 CH (channel) audio is available when you connect the TV to an external device supporting 5.1 CH.
x
When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the
TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is
a digital component such as a DVD player / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver
and you connected it to the TV via HDMI, you will only hear 2 CH audio from the home theater receiver. If you
want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB
satellite receiver directly to an amplifier or home theater.
✎
AUDIO OUT
: Connects to the audio input jacks on your amplifier/home theater.
x
When connecting, use the appropriate connector (sold separately).
x
When you connect an audio amplifier to the
AUDIO OUT
jacks, decrease the volume of the TV and adjust the
volume level with the amplifier’s volume control.
OPTICAL
R-AUDIO-L
AUDIO IN
Optical Cable (Not Supplied)
Audio cable (Not Supplied)
Digital Audio System
DVD Home Theater
Using a Component Cable (up to 1080p HD signals) or Video Cable (480i, analog signals only)
Use on DVD players, Blu-ray players, cable boxes, STB satellite receivers, and VCRs.
✎
When you connect a Video cable to
AV IN
, the color of the
AV IN [Y/VIDEO]
jack (green) will not match the
video cable (yellow).
✎
For better picture quality, we recommend the Component connection over the A/V connection.
Red White
Yellow
Red Blue Green
Audio Cable
(Not Supplied)
Video Cable
(Not Supplied)
Audio Cable
(Not Supplied)
Component Cable (Not
Supplied)
Red White
Device
Device
