Connections

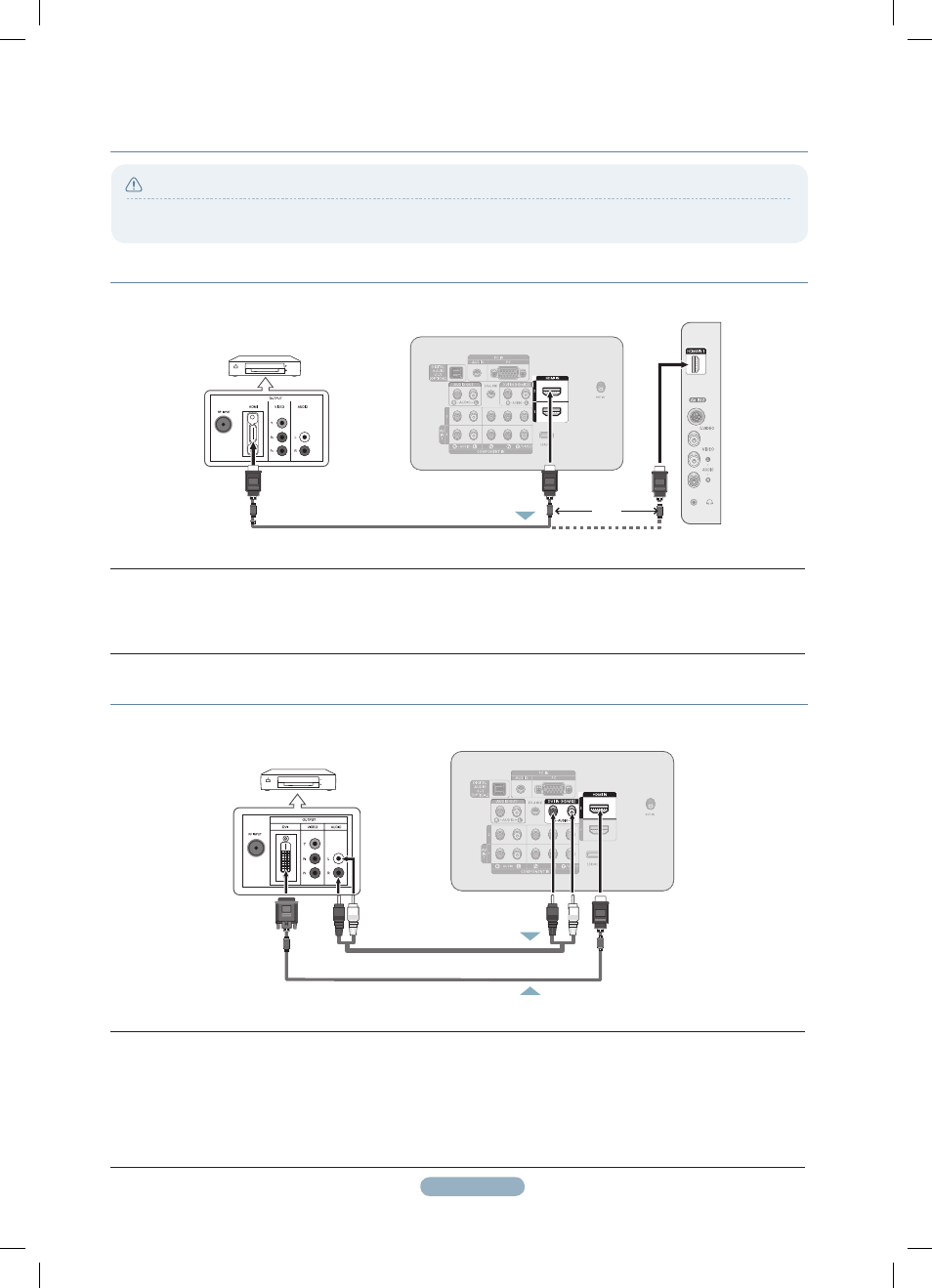

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX) VIA HDMI
● When connecting an external device, match the colour of the connection terminal to the cable.
Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel confi guration.
1.
Connect an HDMI Cable(Not supplied) between the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on
the Cable Box/Satellite receiver (Set-Top Box).
➢ No additional Audio connection is needed for an HDMI to HDMI connection.
Caution
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
1
HDMI Cable (Not supplied)
TV REAR PANEL
CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX) VIA DVI
1.
Connect an HDMI Cable(Not supplied) between the HDMI IN 2 jack on the TV and the HDMI jack on the Cable
Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables(Not supplied) between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the Cable
Box/Satellite receiver (Set-Top Box).
➢ When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN2 jack.
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
TV REAR PANEL
2
1
Audio Cable (Not supplied)
HDMI/DVI Cable (Not supplied)
or
