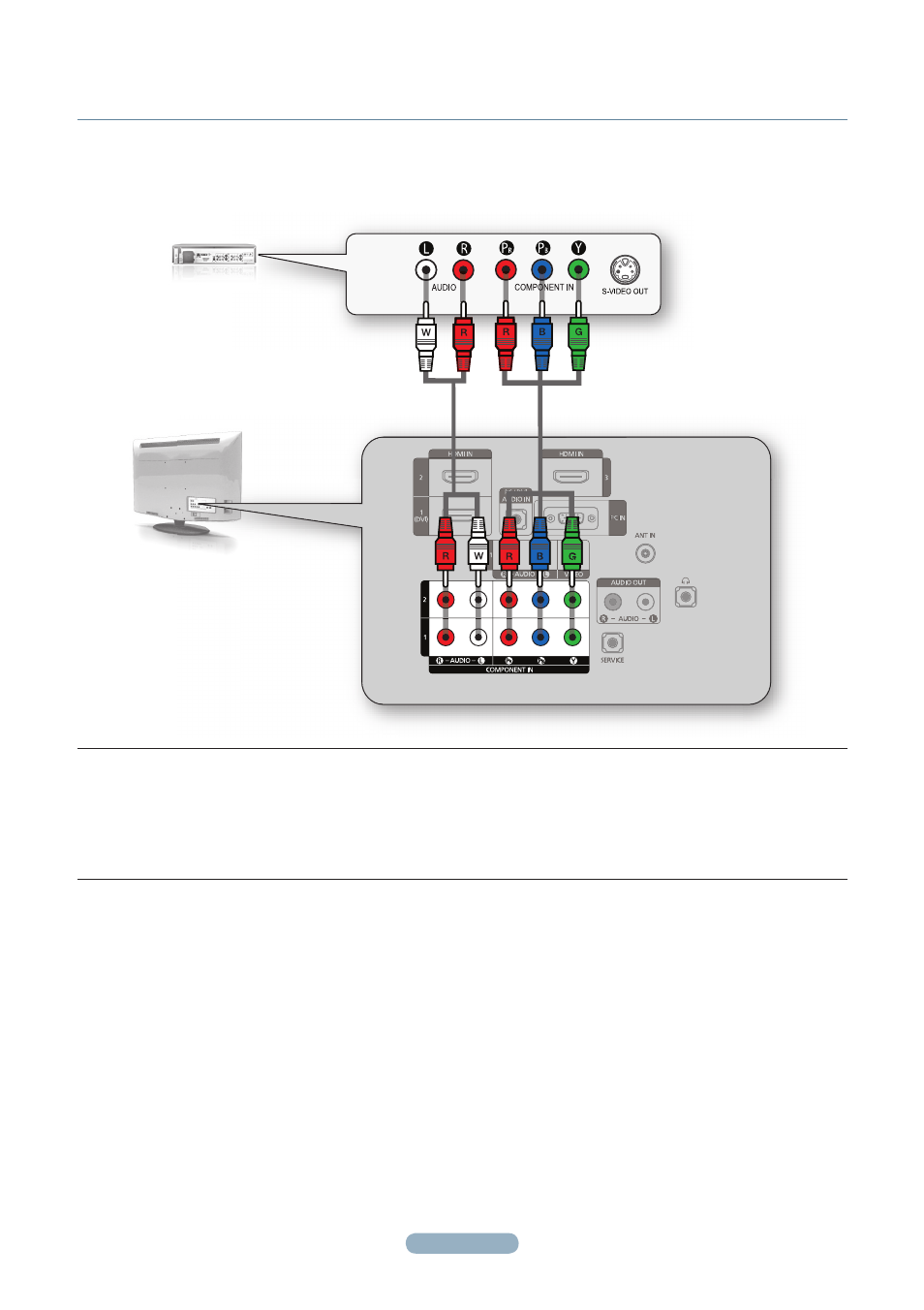

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA COMPONENT CABLES

TV REAR PANEL

CABLE BOX/SATELLITE

RECEIVER (SET-TOP BOX)

REAR PANEL

1

2

1.

Connect a Component Cable (Not supplied) between the

COMPONENT IN (1 or 2) [Y, P

B

, P

R

] jacks on the TV

and the COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).

2.

Connect Audio Cables (Not supplied) between the

COMPONENT IN (1 or 2) [R-AUDIO-L] jacks on the TV and the

AUDIO OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).

LN32B550 / LN40B550 / LN46B550 / LN52B550
