English-0

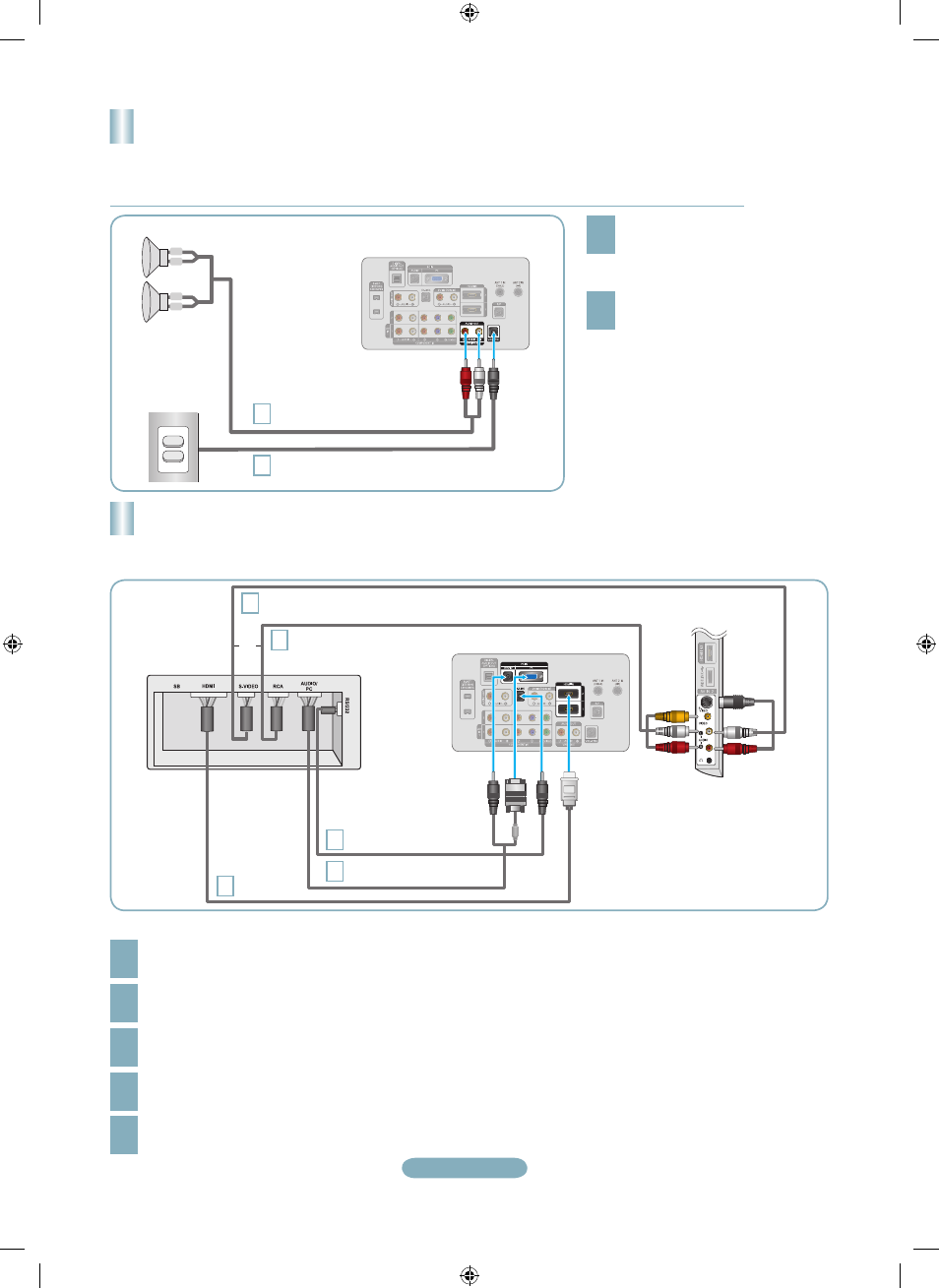

Connecting the Bathroom Speakers
VOL +
VOL -
L -
L +
R -
R +
Connecting through the Variable Output (available without an external amplifier)
See 'Connecting the Bathroom Speakers' in the owner’s instructions for details.
This function is only available when the TV is installed in a hotel.
➣
➣
TV Rear Panel
Red : Right / White : Left
Speaker
Volume Control Box
2
Connect the VARIABLE AUDIO
[R-AUDIO-L] port of the TV to the
Bathroom Wall Speakers of the
hotel.
2
Connect the [VOL-CTRL] jack of
the TV to the Volume Control Box
Switch port of the Bathroom Wall of
the hotel.
Each VCR has a different back
panel configuration.
➣
Connecting the RJP(Remote Jack Pack)
See 'Connecting the RJP(Remote Jack Pack)' in the owner’s instructions for details.
This function is only available when the TV is installed in a hotel.
➣
➣
TV Rear Panel
2 Video / Audio Cable
RJP Rear
3 S-Video / Audio Cable
D-sub / PC Audio cable
4 HDMI cable
TV Side Panel
or
Connect the PC IN [PC] / [AUDIO] port of the TV to the PC/AUDIO port of the RJP.
2
Connect the AV IN [VIDEO]/[R-AUDIO-L] port of the TV to the RCA port of the RJP.
3
Connect the S-VIDEO / AV IN[R-AUDIO-L] port of the TV to the S-VIDEO port of the RJP.
You cannot connect and use the AV and S-VIDEO ports at the same time. ➣
4
Connect the [HDMI] port of the TV and the HDMI port of the RJP.
Connect the EX-LINK port of the TV and the RS/232 port of the RJP.
The RJP (Remote Jack Pack) compatible with this Samsung TV is TeleAdapt TA-7610. ➣
Output of any external source connected to RJP on hotel desk.
