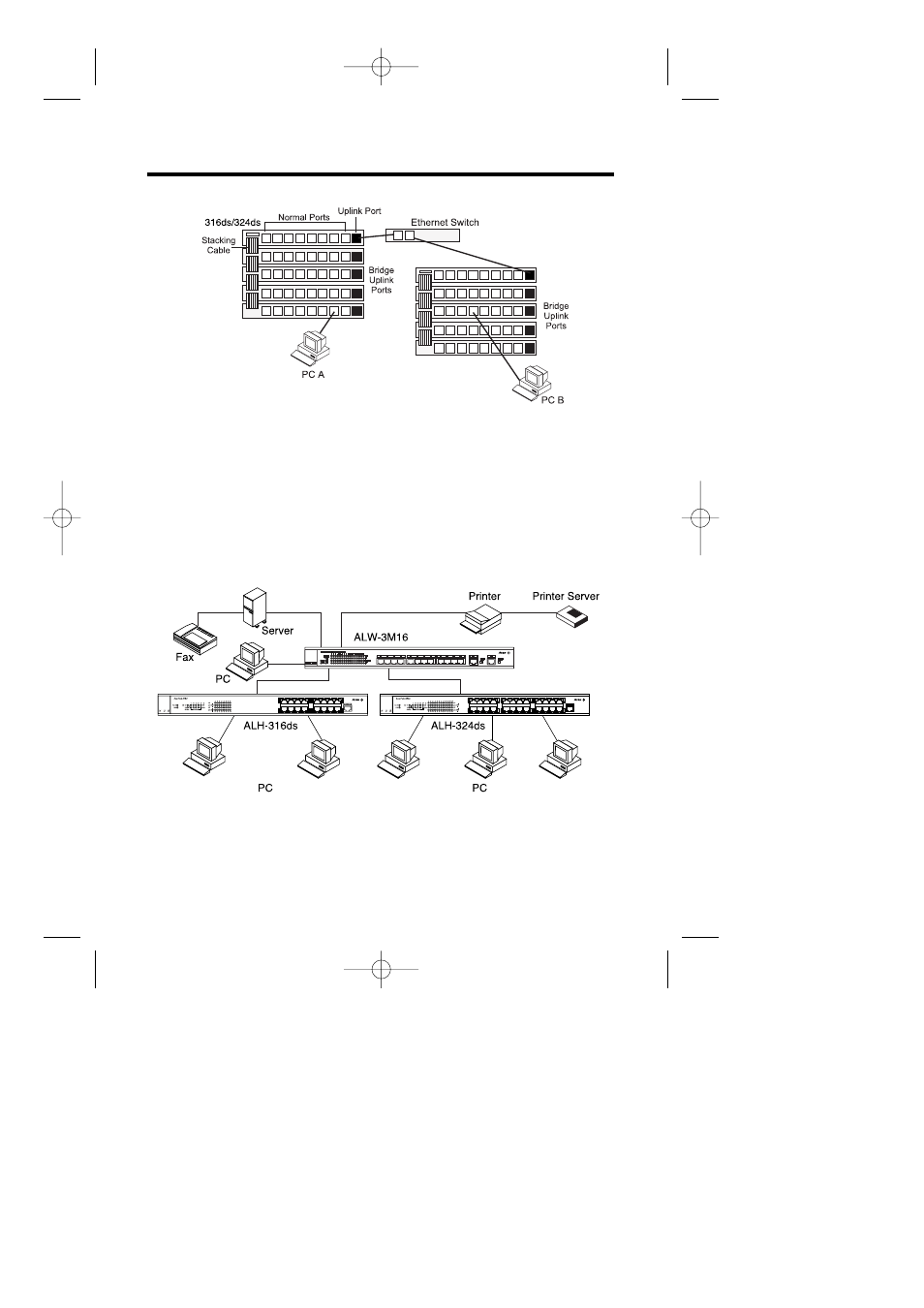

Figure 3-8 Connect to Ethernet Switches.
No matter if the ALH-316ds/324ds hubs are stacked together or not, the
user always can connect to Ethernet switches by the uplink port.
3.5 Application
With this application diagram, you can clearly see the possibility what ALH-
316ds/324ds can do for you in expand your network. (See Figure 3-9)
Figure 3-9 Application diagram
Notice: Use UTP Cat. 5 to connect to 100 Mbps equipment and UTP Cat.
3,4,5 to connect to 10 Mbps one.
