English - 4

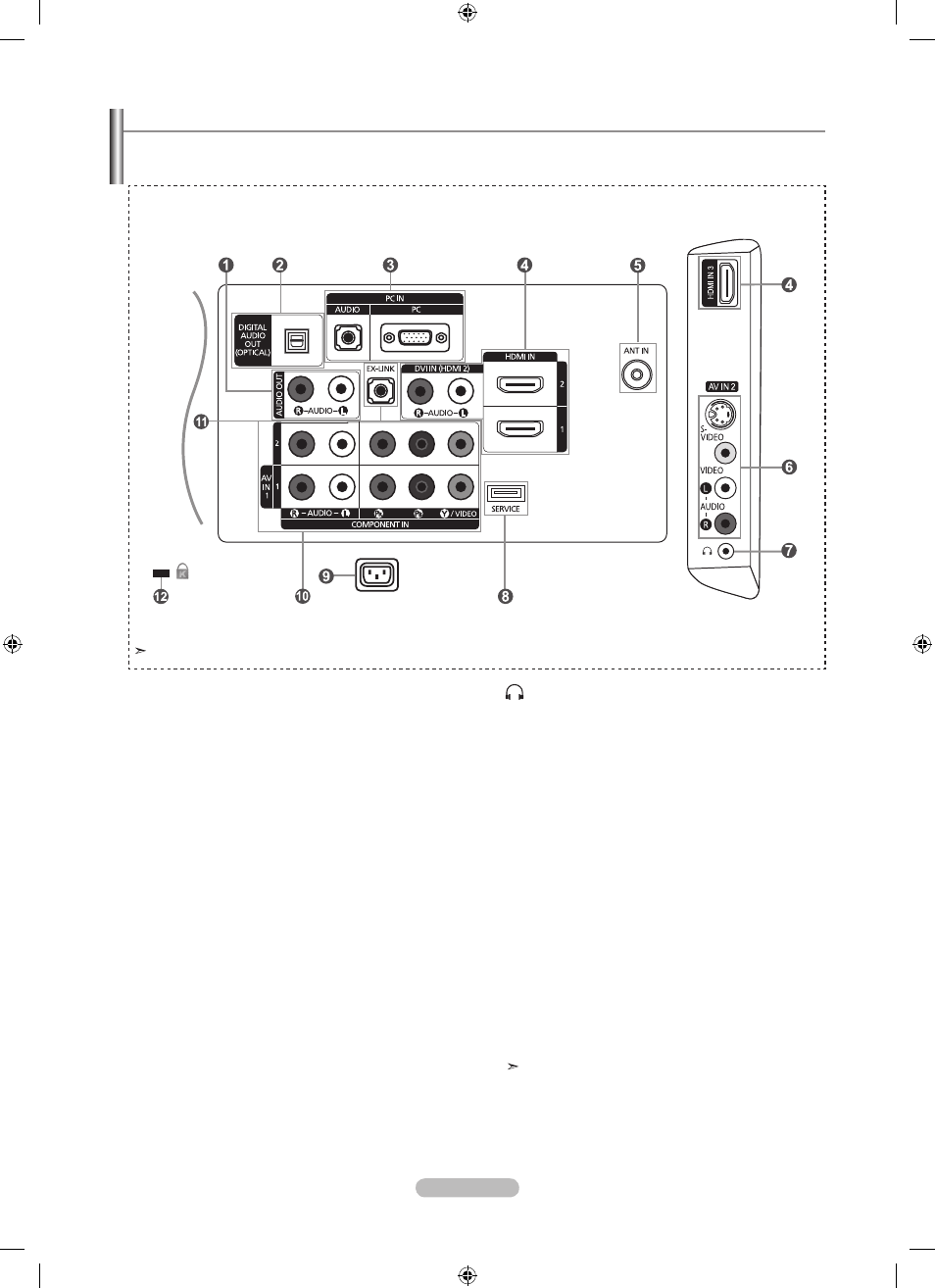

Viewing the Connection Panel
Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD players or a VCR.
For more information on connecting equipment, see pages 6~12.
[TV Side Panel]
[TV Rear Panel]
1 AUDIO OUT
Connects to the audio input jacks on your Amplifier/
Home theater.
2 DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component.
3 PC IN [PC] / [AUDIO]
Connects to the video and audio output jacks on your
PC.
4 HDMI IN 1, 2, / DVI IN(HDMI2)[R-AUDIO-L]
Connects to the HDMI jack of a device with an HDMI
output.
Use the HDMI IN 2 jack for DVI connection to an
external device.
Use a DVI to HDMI cable or DVI-HDMI adapter (DVI to
HDMI) for video connection and the DVI IN (HDMI2)
[R-AUDIO-L] jacks for audio.
- No sound connection is needed for an HDMI to HDMI
connection.
- When using an HDMI/DVI cable connection, you must use
the HDMI IN 2 jack.
5 ANT IN
Connects to an antenna or cable TV system.
6
AV IN 2
Video and audio inputs for external devices, such as a
camcorder or VCR.
S-VIDEO
Connects an S-Video signal from a camcorder or VCR.
7 (HEADPHONE)
Connects a set of external headphones for private
listening.
8 SERVICE
Connector for SERVICE only.
9
POWER INPUT
Connects the supplied power cord.
0
COMPONENT IN 1, 2 / AV IN 1
The COMPONENT IN 1 jack is also used as the AV IN 1
jack.
- Connect the video cable to the COMPONENT IN 1
[Y/VIDEO] jack and the audio cable to the
COMPONENT IN 1 [R-AUDIO-L] jacks.
! Ex-LINK
- Connector for SERVICE only.
- Connect this to the jack on the optional wall mount
bracket. This will allow you to adjust the TV viewing
angle using your remote control.
@ KENSINGTON LOCK
The Kensington Lock (optional) is a device used to
physically fix the system when used in a public place.
If you want to use a locking device, contact the dealer
where you purchased the TV.
The location of the Kensington Lock may be different
depending on its model.
The product color and shape may vary depending on the model.
