4
Connect an RF cable
between the ANT OUT
terminal on the cable
box and the B–IN
terminal on the A/B
switch.
5
Connect another cable
between the other
OUT terminal on the
splitter and the A–IN
terminal on the RF
(A/B) switch.
6
Connect the last
RF cable between the
OUT terminal on the
RF (A/B) switch and
the ANT IN terminal on
the rear of the TV.
I N S TA L L AT I O N
After you’ve made this connection, set the A/B switch to the “A” position for normal
viewing. Set the A/B switch to the “B” position to view scrambled channels.
(When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s
output channel, which is usually channel 3 or 4.)

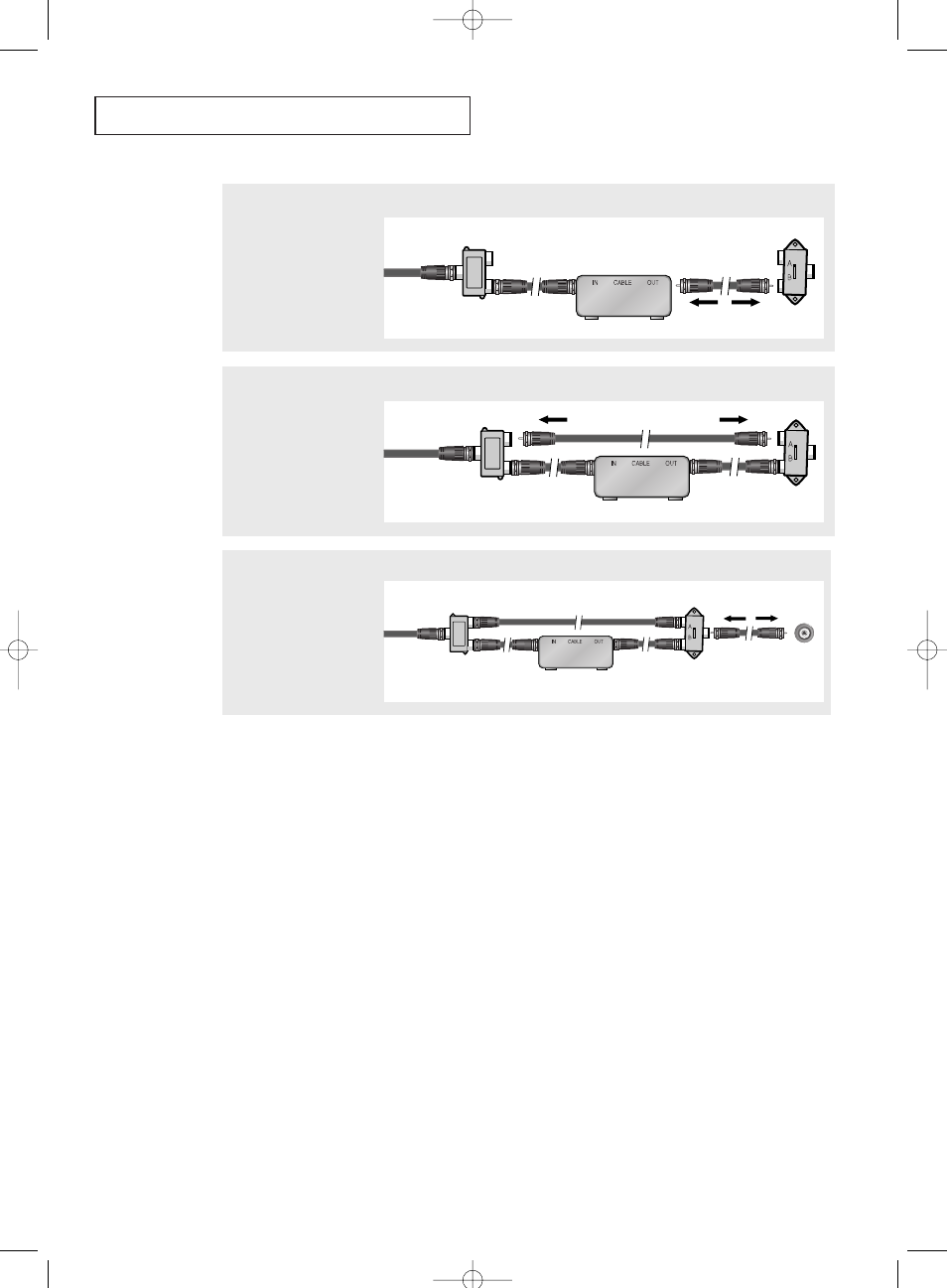

Incoming
cable
Splitter
Cable Box
RF (A/B)
Switch
Incoming
cable
Splitter
Cable Box
RF (A/B)
Switch
Incoming
cable
Splitter
Cable Box
RF (A/B)
Switch
TV Rear
ANT IN
