4

Setting up Your Monitor

Connecting Your Monitor

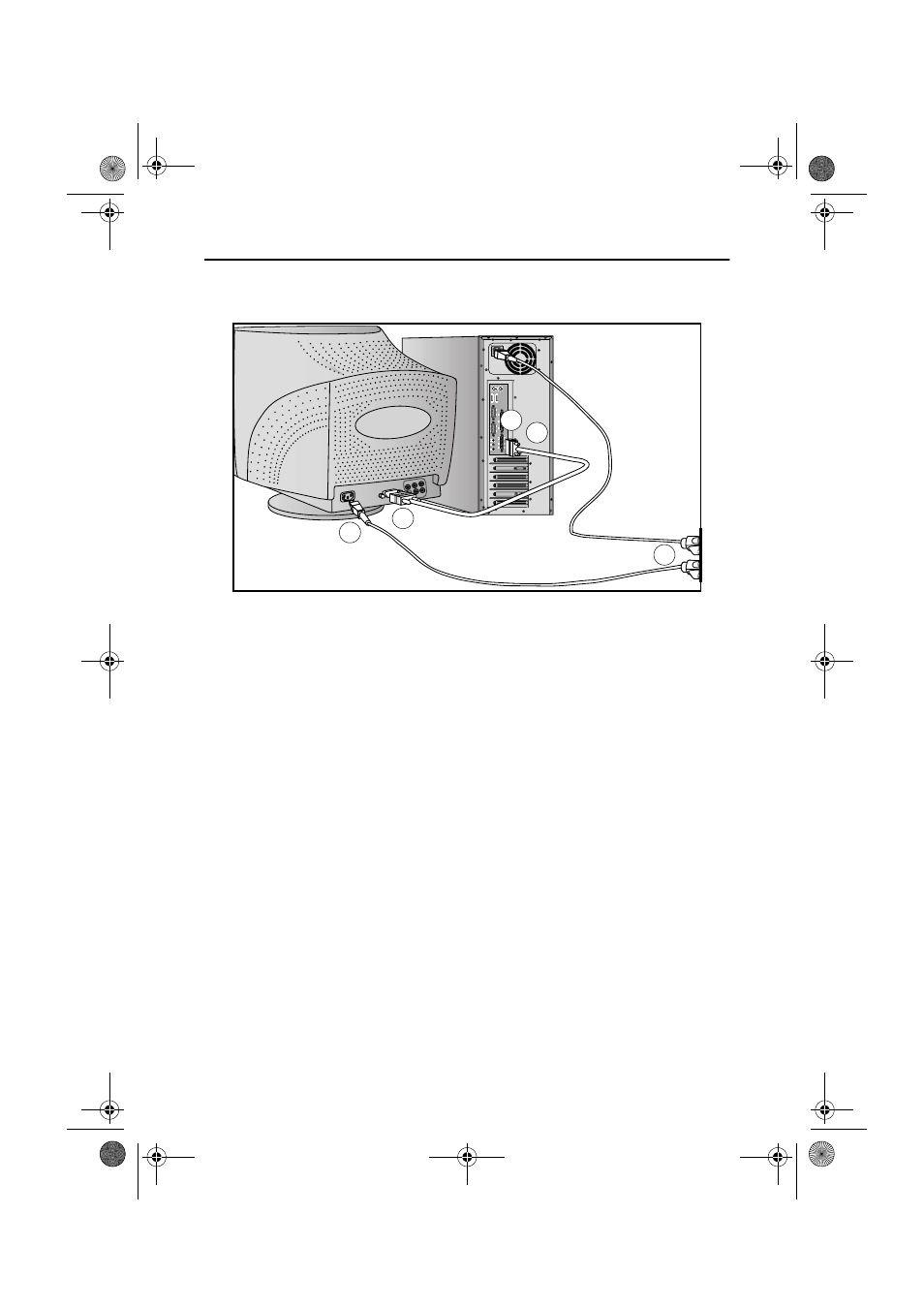

Figure 1. Cable connections

1

Turn off your computer and unplug its power cord.

2

Connect the signal cable to the D-SUB or BNC signal port on the back of your monitor.

3

If you are using an IBM-compatible computer, skip to step 5. If you are using a

Macintosh computer, connect the other end of the signal cable to a Macintosh

adapter.

4

Follow the instructions included with your adapter to set the pins on your adapter, if

necessary.

5

Connect the signal cable (with an adapter, if necessary) to the video port on the back

of your computer. This port might be directly attached to your computer, or it might be

part of a video adapter, video card, or graphics card.

6

Connect the power cord for your monitor to the power port on the back of the monitor.

7

Plug the power cords of your computer and your monitor into a nearby outlet.

8

Turn on your computer and monitor. If your monitor displays an image, installation is

complete.

R

G

B

2

7

6

5

3

950pe.book Page 4 Monday, November 22, 1999 2:55 PM
