English-6

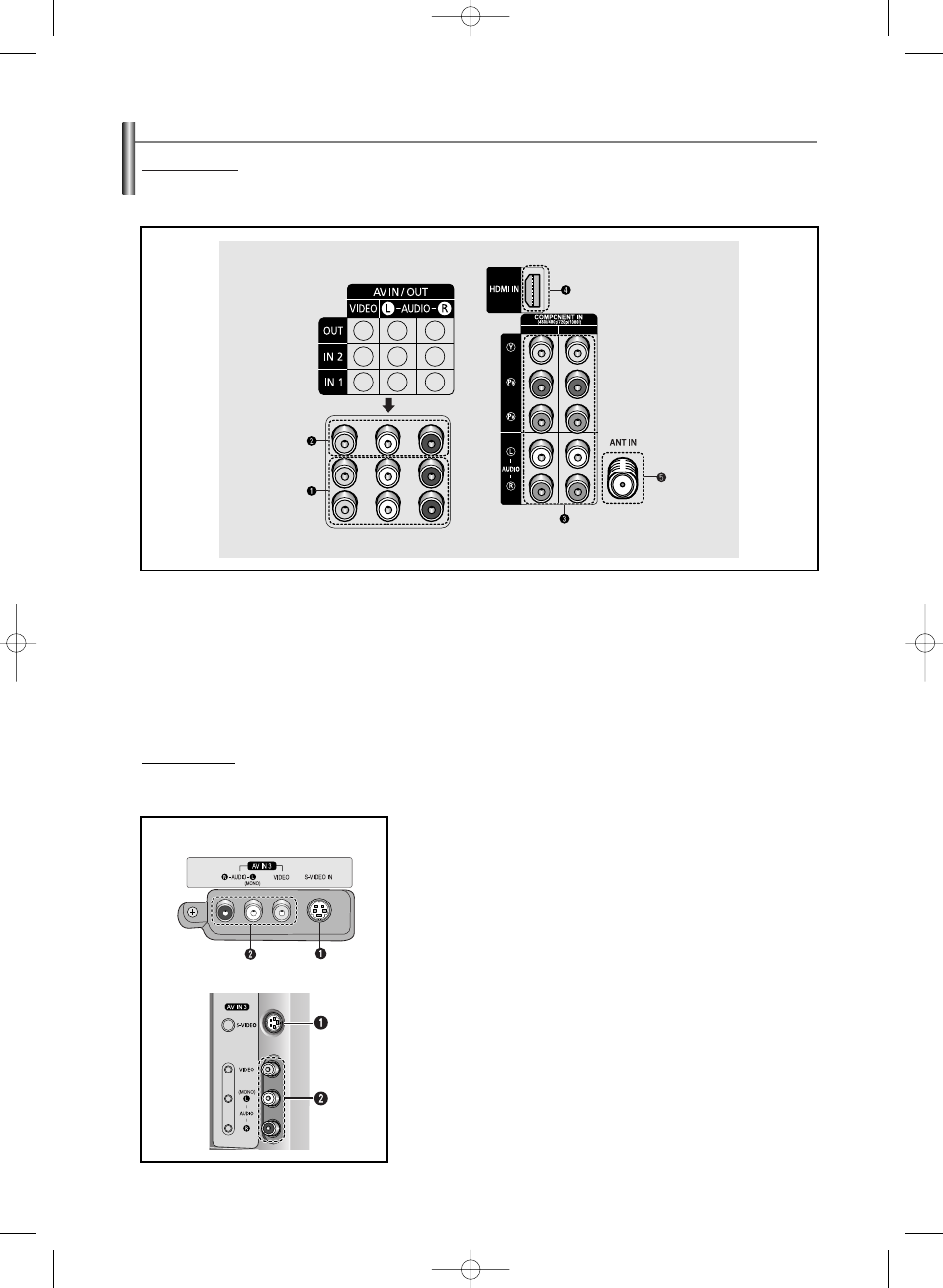

Rear Panel Jacks
Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players.
For more information on connecting equipment, see pages 8-13.
1 2
1 AV IN 1, 2
Connect to the video output jacks of VCRs, DVD
players and similar devices.
2 AV OUT
Connect to the audio/video input jacks of a recording
VCR.
3 COMPONENT IN 1, 2 (480i/480p/720p/1080i)
Connect Component audio and video.
4 HDMI IN
Connect to the HDMI jack of a device with an HDMI
output.
5 ANT IN
Connect to an antenna(air) or cable TV system.
1 S-VIDEO
Video inputs for external devices with an S-Video output.
2 AV IN 3
Video and audio inputs for external devices, such as a
camcorder or VCR.
Viewing the Connection Panel
Side Panel Jacks
Use the left side panel jacks to connect a component that is used only occasionally, such as a camcorder or video game. (See page 11)
The product color and shape may vary depending on the model.
TX-S3064WR
TX-S3065WR
