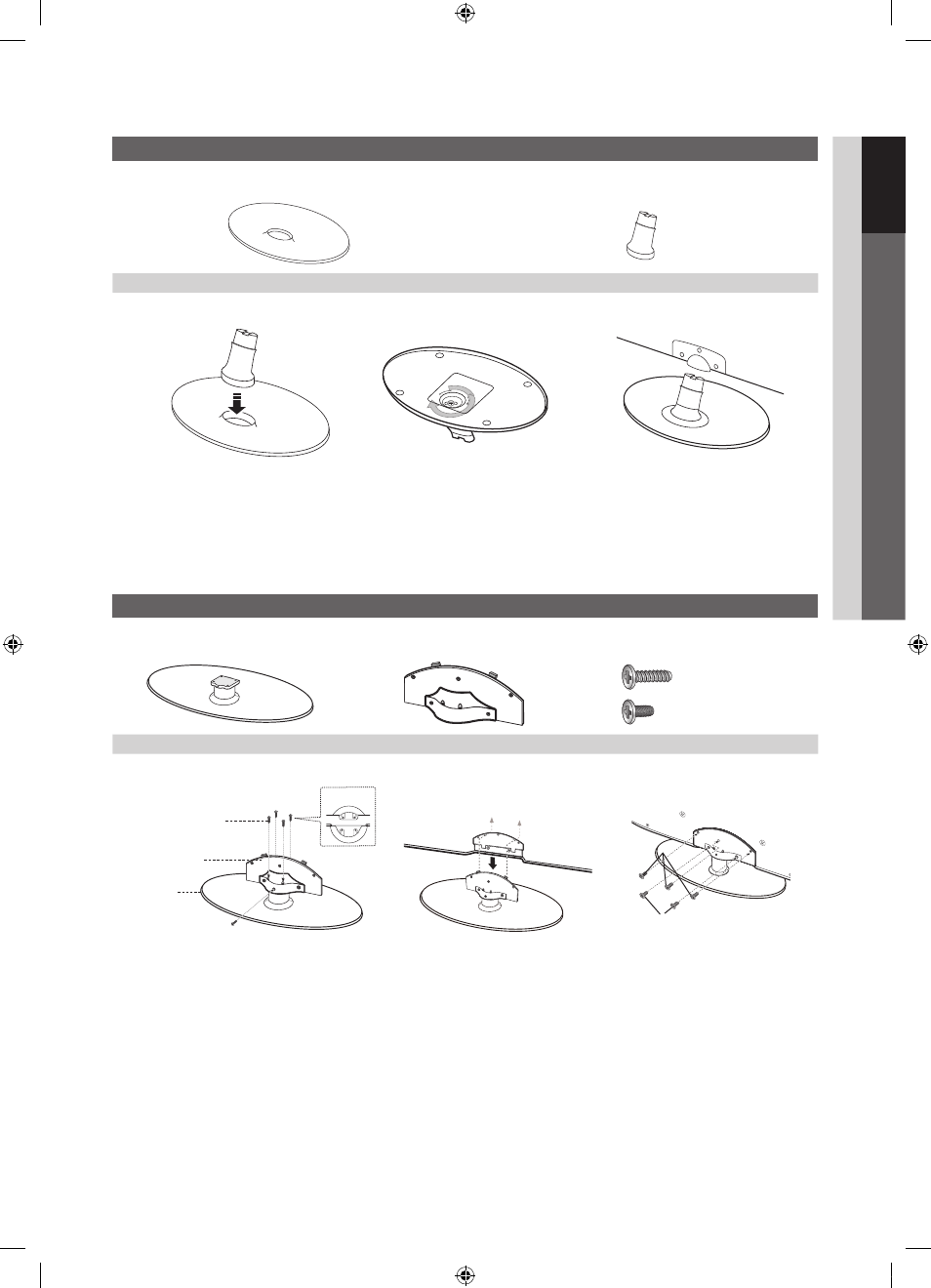

Install the Stand (UN19C4000, UN22C4000 / UN22C4010)
See separate guide for installing the stand.
Stand Base Stand Body
Follow the steps below to connect the TV to the stand.
RELEAS
E
LOCK
ELEASE SE
LOC
RELE A
1. Insert the stand body into the
stand base.
2. Screw the stand base to the stand
body.
3. Slide the TV onto the stand body.
✎
NOTE
x Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
x Lay the product down, with the screen facing up and fasten the screws.
Install the Stand (UN26C4000)
See separate guide for installing the stand.
s s
s
s
s
Stand (1EA) Guide Stand (1EA) Screws (10EA)
Follow the steps below to connect the TV to the stand.
s
s
s
s
s
1
s
s
s
s
s
2
1. Connect the Guide Stand to the Stand
using five screws (M4 X L12) as shown.
2. With your TV upright,
connect the TV to the Stand
as shown.
3. Fasten two screws (M4 X
L8) at position 1, and then
fasten three screws (M4 X
L8) at position 2.
✎
NOTE
x Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
x Make sure that at least two persons lift and move the LED TV.
x Stand the product up and fasten the screws. If you fasten the screws with the LED TV placed down, it may lean to
one side.
s s
s
s
s
Top view
Rear
Guide Stand
Screws (M4 X L12)
Stand
(A)
(B)
5EA (M4 X L12)
5EA (M4 X L8)
