8

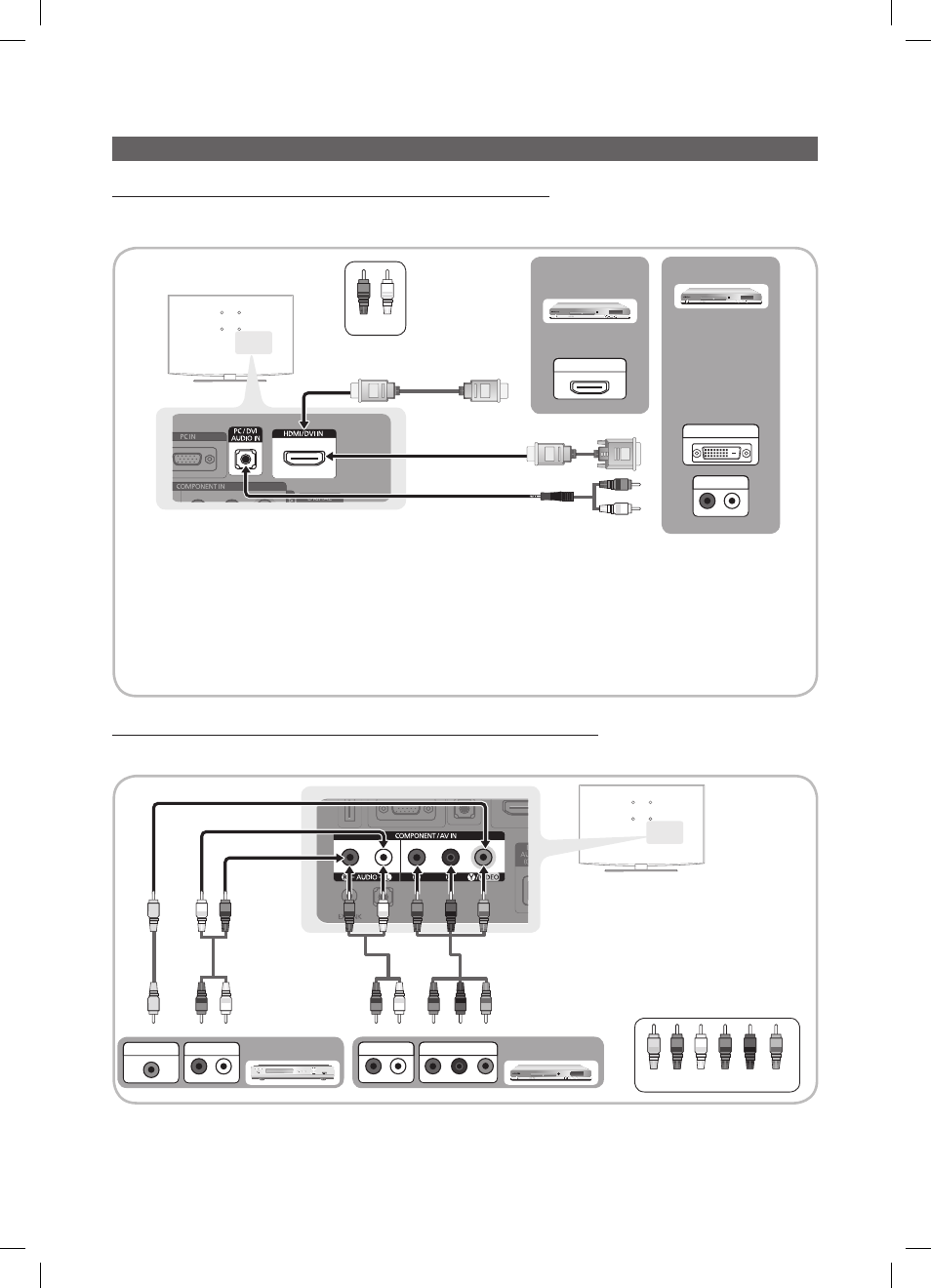

Connecting to an AV Device
Using an HDMI cable or HDMI to DVI Cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
✎
HDMI/DVI IN / PC/DVI AUDIO IN
x When using an HDMI/DVI cable connection, you must use the HDMI/DVI IN jack for video. A DVD, Blu-ray
player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVI
to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The
PC/DVI AUDIO IN jack is required for audio.
x The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.
x Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may
occur.
Using a Component Cable: (up to 1080p), Using an Audio/Video Cable: (480i only)
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
Device
R-AUDIO-L P R P B Y
DVI OUT
BD/DVD player/
HD cable/sat box
R-AUDIO-L P R P B Y
HDMI OUT
R-AUDIO-L P R P B Y
AUDIO OUT
W
R
R-AUDIO-L P R P B Y
COMPONENT OUT
R-AUDIO-L P R P B Y
AUDIO OUT
Blu-ray player
W Y
W Y B G R
W
W
B G R
R
R
R
R
R-AUDIO-L P R P B Y
VIDEO OUT
VCR
R-AUDIO-L P R P B Y
AUDIO OUT
✎ When connecting to AV IN , the color of
the AV IN [Y/VIDEO] jack (Green) does not
match the color of the video cable (Yellow).
✎ For better picture quality, the Component
connection is recommended over the A/V
connection.
Red White
W W B G R R W Y
W W B G R R W Y
Yellow Red White Red Blue Green
English
Connections Connections
