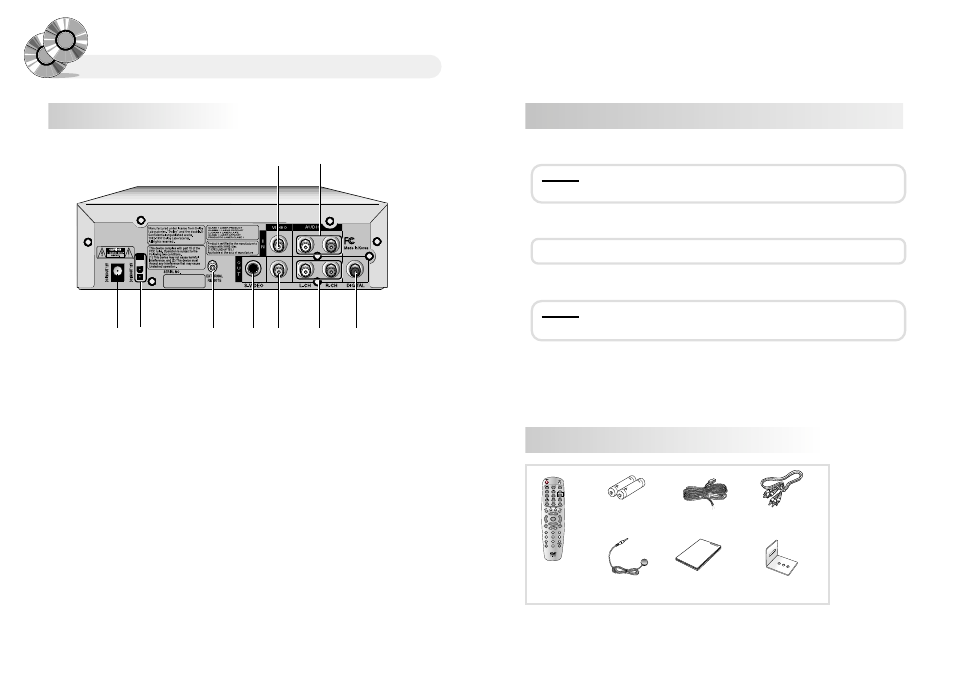

Description
13
Rear Panel
Important Safety Instruction When using DC IN jacks
Accessory
①
EXTERNAL REMOTE CONNECTOR
Connect an external remote receiver(provided) to this jack.
②
DC IN/OUT
Input/output from DC 12V power sovrce.
③
DC IN/OUT
Input/output from DC 12V power sovrce.
④
VIDEO INPUT
Connect a video cable to video output of auxiliary devices.
⑤
AUDIO INPUT
Connect a audio cable to audio output of auxiliary devices.
⑥
VIDEO OUT
Connect a video cable to this jack and to the Video Input jack on
your TV or monitor.
⑦
AUDIO OUT
Connect the audio cables(left and right) from these jacks on your DVD
player to the corresponding Audio Input jacks on your TV or monitor.
⑧
DIGITAL AUDIO OUT (Coaxial)
Use a coaxial cable(not provided) to connect your DVD player to a
compatible Dolby Digital decoder.
⑨
S-VIDEO
Use the S-Video cable not provided to connect this jack to the S-Video
jack on your an TV or monitor for a higher quality picture.
3
9
6
2
1
8
7
4
5
Description
W
W
a
a
r
r
n
n
i
i
n
n
g
g
:
Use the AC/DC Adapter (DC 12V, 2A) when playing the DVD player at home using
an external power source.
1. When using this DVD player at home
W
W
a
a
r
r
n
n
i
i
n
n
g
g
:
1. Unplug the DVD player when you are not using it to prevent electric discharge.
2. Do not connect the DC power cable directly to the car battery directly.
3. When connecting the DC power cable to power.
Connect to a 12vdc switched power source.
2. When using this DVD player in the car
Remote
controller
Batteries x 2ea
Video /Audio
cable
Owner's
manual
DC power cable
Owner's
man
ual
Remote IR
Sensor
L.bracket
✕
2ea
