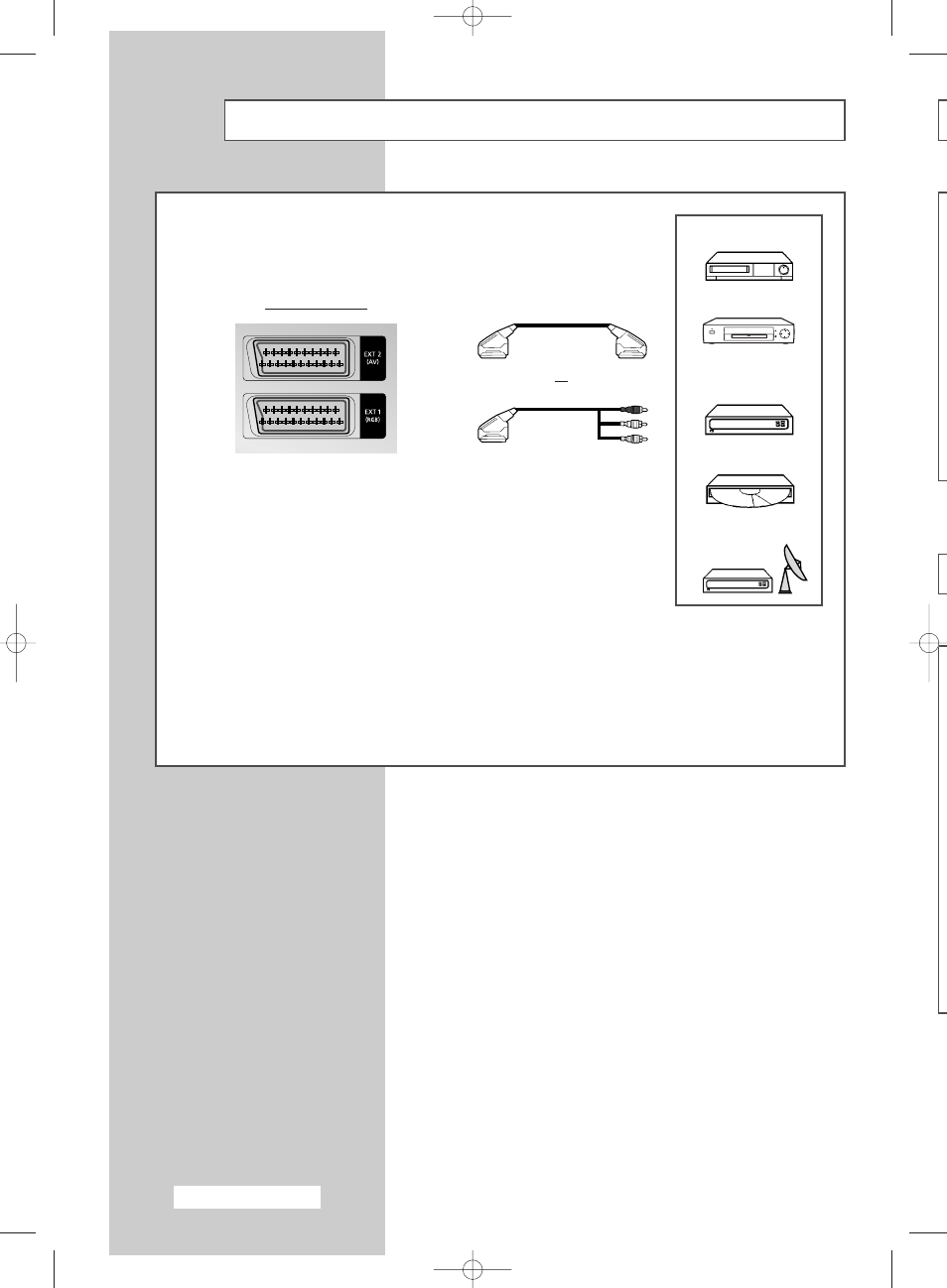

Connecting to the External Input/Outputs (depending on the model)
➢
“EXT 1 (RGB)” is used for the equipment with an RGB
output, such as video game devices or video disc
players.
Rear of the TV
VCR
Decoder /
Video game device
Video disc player
Satellite receiver
①
This end can be fitted with:
◆ A SCART connector
◆ Three RCA connectors (Video + Audio-L and R)
②
If you have a second VCR and wish to copy cassettes tape, connect the
source VCR to “EXT 1 (RGB)” and the target VCR to “EXT 2 (AV)” so that
you can redirect the signal from “EXT 1 (RGB)” to “EXT 2 (AV)”.
③
If you have a decoder, connect the decoder to the VCR and the VCR to the
television.
➃
When you wish to record a programme, connect the receiver to “EXT 1
(RGB)” and the VCR to “EXT 2 (AV)” so that you can redirect the signal
from “EXT 1 (RGB)” to “EXT 2 (AV)”.
or
① DVD
②
➃
③
English - 42
