Connecting to a Digital Audio System

There are many types of digital audio systems on the market today.
A simplified illustration of an audio system is shown below. For more information, see your
audio system owner’s manual.

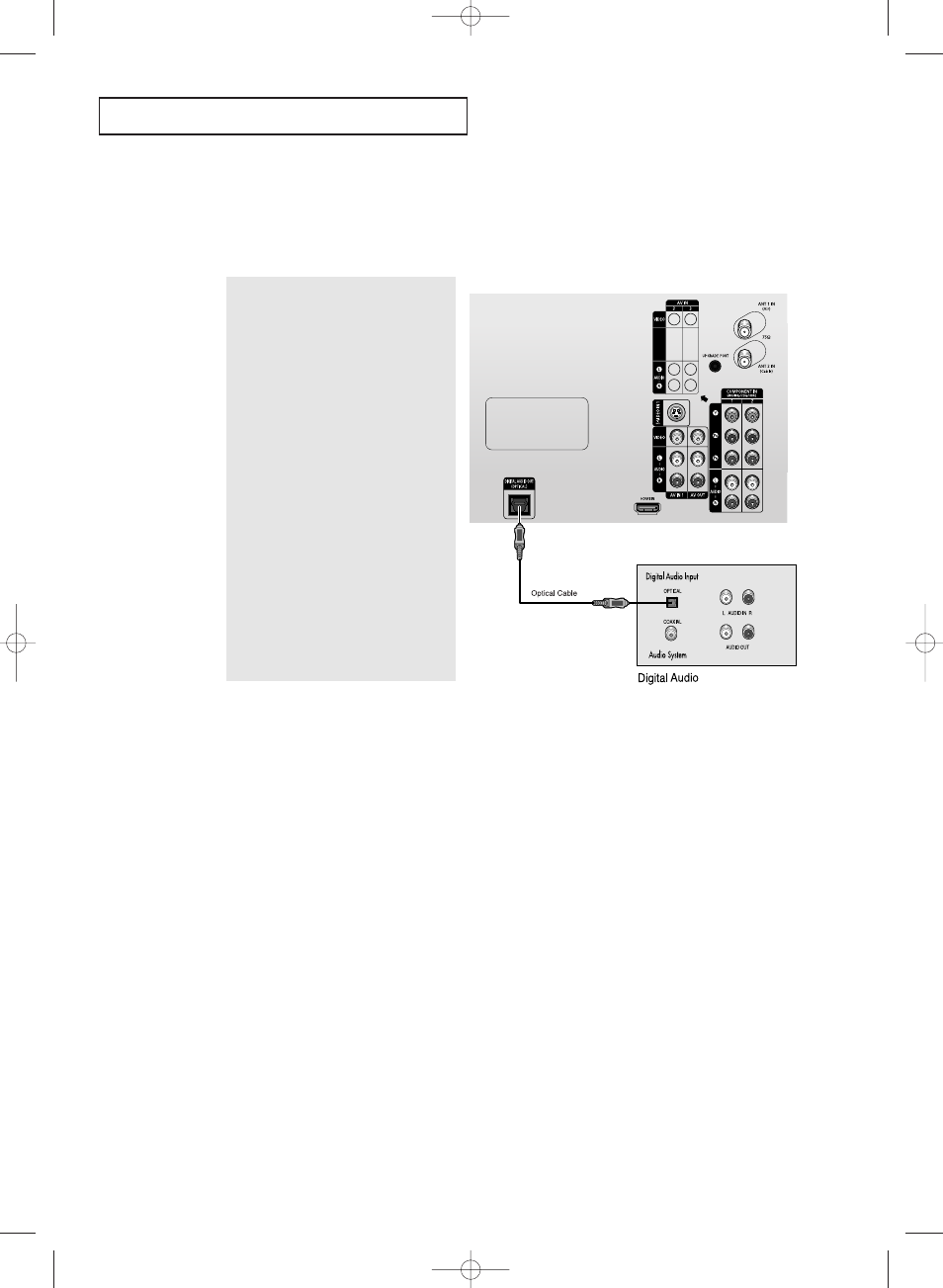

If your audio system has an optical
digital audio input, connect to the
“DIGITAL AUDIO OUT (OPTICAL)” jack
on the TV.

Be certain to remove the black cover
from the optical output before inserting
the cable.

TV Rear Panel

• OPTICAL: Converts the electric signal into an optical light signal, and transmits it through glass

fibers. A transmission system of digital audio in the form of a light wave, S/PDIF format using a
glass conductor.
