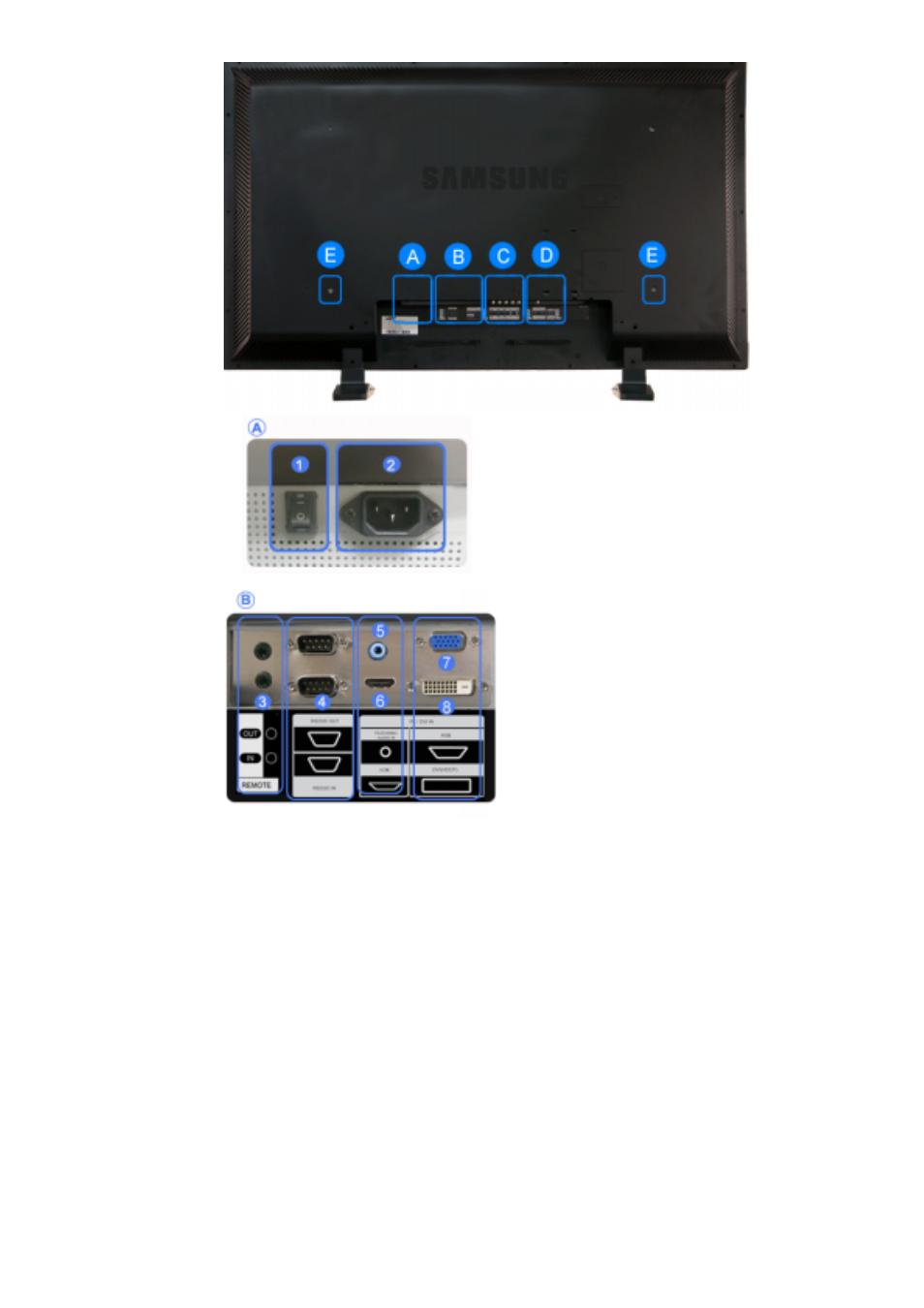

1) POWER S/W ON [ | ] / OFF [O]
Switches the LCD Display On/Off.
2) POWER IN
The power cord plugs into the LCD Display and
the wall plug.
3) REMOTE OUT/IN
You can use a wired remote control by
connecting it to your monitor.
4) RS232C OUT/IN (RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
5) DVI / PC / HDMI IN [PC/DVI/BNC AUDIO
IN] (PC/DVI/BNC/HDMI Audio Connection
Terminal (Input))
6) DVI / PC / HDMI IN [HDMI]
Connect the HDMI IN terminal at the back of
your monitor to the HDMI terminal of your
digital output device using a HDMI cable.
7) DVI / PC / HDMI IN [RGB] (PC Video
Connection Terminal)
Using a D-Sub Cable (15 pin D-Sub) - PC
mode (Analog PC)
8) DVI / PC / HDMI IN [DVI(HDCP)] (PC
Video Connection Terminal)
Using a DVI Cable (DVI-D to DVI-D) - DVI
mode (Digital PC)
9) COMPONENT AUDIO IN [L-AUDIO-R]
(Component Audio Connection Terminal
(Input))
10) BNC/COMPONENT OUT [R/P R , G/Y, B/P B ,
H, V] (BNC/Component Connection
Terminal (Output))
BNC (Analog PC) Connection: connecting the R,
G, B, H, V ports
