AOC LM765s User Manual
Page 7
CONTROLS AND CONNECTORS
VIDEO CABLE
Connecting the D-Sub Cable: Connect one end of the 15-pin D-Sub cable to
the back of the monitor and connect the other end to the computer’s D-Sub
port.
Connecting the Power Cord: Connect the power cord into your LCD
monitor’s power input socket, and then plug the other end into a 3-pin AC
power outlet. The power cord may be connected to either a wall power outlet
or the power outlet socket on your PC, depending on the type of power cord
supplied with your LCD monitor.
Caution: If the AC outlet is not grounded (with three holes), install the proper
grounding adapter (not supplied).
Connecting the Audio Cable: Plug audio cable between the computer multi-
media (or sound) card's audio output and
monitor's audio input.
3

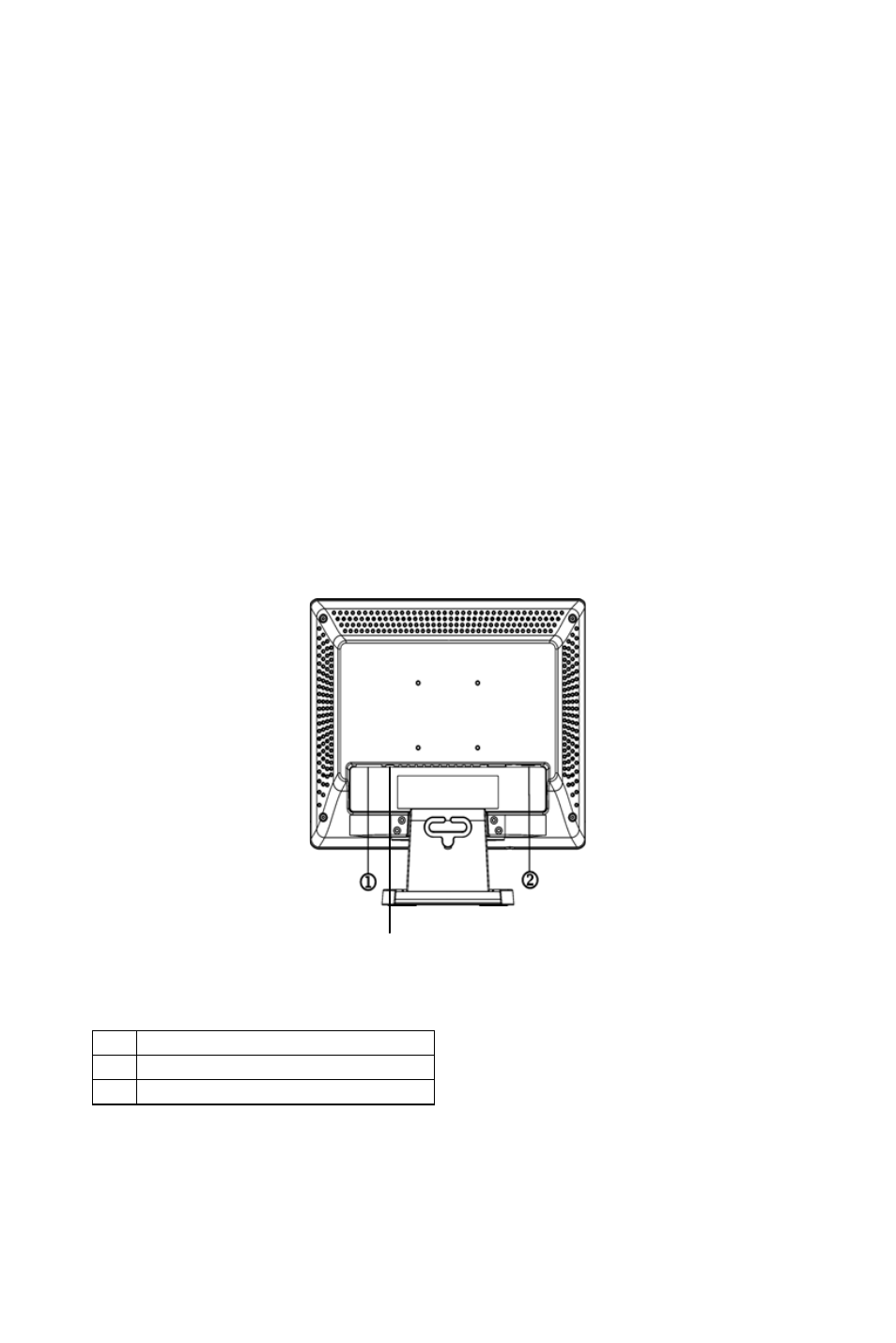

Figure 2 Connecting Cables
1.
AC Power Cord
2. D-Sub
Cable
3. Audio
Cable
6
